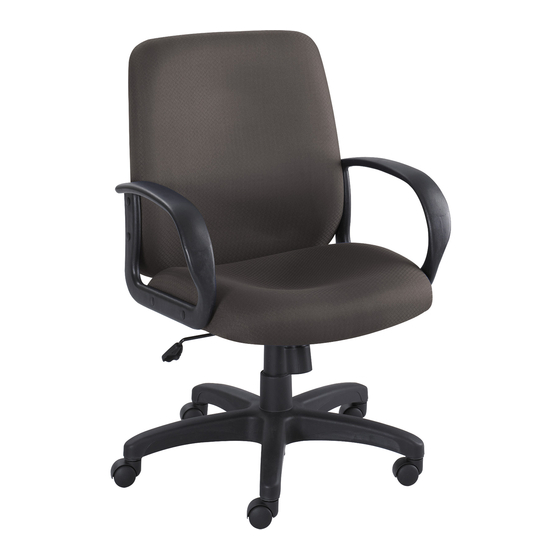

Executive chair

Advertisement

Available languages

Available languages

Quick Links

an LDI Spaces Company
Minneapolis, MN 55428
www.safcoproducts.com
PRODUCT WARRANTY REGISTRATION is available online at: www.safcoproducts.com
PARTS LIST
CODE
DESCRIPTION
A
Base
B
Pump Assembly
C
Pump Dust Cover (3-piece)
D
Seat Assembly
E
Cushioned Backrest
Model 6300
Model 6301
F
Right Arm (marked "R")
G
Left Arm (marked "L ")
HARDWARE PACK 6300-19BL
H
Caster
I
Small Screw
J
Screw Cover
1
Turn the A Base upside down and insert the
five H Casters into the ends of the Base spokes.
Turn the Base right side up.
2
Insert the B Pump Assembly into the base,
tapered end down. Secure the Pump Assembly
by applying a little downward pressure. DO NOT
PUSH ON BUTTON AT THE TOP!
3
Slide the C Dust Cover over the Pump Assem-
bly until it meets the Base.
4
Place the D Seat Assembly onto the Pump
Assembly. Press down firmly (or sit) to lock into
place.
5
Mount the G Left Arm to the left side of the Seat
Cushion, using two I Small Screws and filling
the holes with two J Screw Covers. Now do the
same with the F Right Arm on the right side of
the Seat Cushion.
6
Place the E Back Rest between the Arms and
line up the holes in its sides with those in the
Arms. Secure with the I Small Screws, and
cover the Screws with the J Screw Covers.
7
Adjust the chair height and chair tension as
needed, following the instructions shown.
6300-37MP: 1 of 3; Rev. 2; 9/10
Poise
®
A S S E M B L Y
TOOLS REQUIRED: Phillips Screwdriver
§ Note: When corresponding about parts, be sure to state color:
Burgundy (BG), Black (BL), Charcoal (CH) or Blue (BU).
QTY.
PART NO.
1
6300-04BL
1
6300-11BL
1
3470-14
1
6300-01§
1
6300-02§
1
6301-02§
1
6300-09BL
1
6300-08BL
5
3470-25
8
6300-23NC
8
6300-22BL
For questions or concerns, please call the
available Monday-Friday 8:00 AM to 4:30 PM (Central Time) (English-speaking operators)
Executive Chair
INSTRUCTIONS
F
J
I
C
1. Adjust height of chair:
Keep feet flat on the floor.
With lever on right side,
adjust height so you feel NO
pressure under the back of
your thighs.
Safco Consumer Hot Line
E
G
D
B
A
2. Adjust the chair tension:
Loosen the knob under the front
of the chair to allow easier tilting.
Tighten the knob to provide a
firmer action.
1-800-664-0042
6300
6301
H
