MegaChef MC-1000 Instruction Booklet

Sous-vide coooker / immersion circulation precision cooker with digital touchscreen panel

Hide thumbs

Table Of Contents

Quick Links

The

SOUS-VIDE COOKER

IMMERSION CIRCULATION

PRECISION COOKER

WITH DIGITAL TOUCHSCREEN PANEL

INSTRUCTION BOOKLET

Model No. MC-1000

Table of Contents

Need help?

Do you have a question about the MC-1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for MegaChef MC-1000

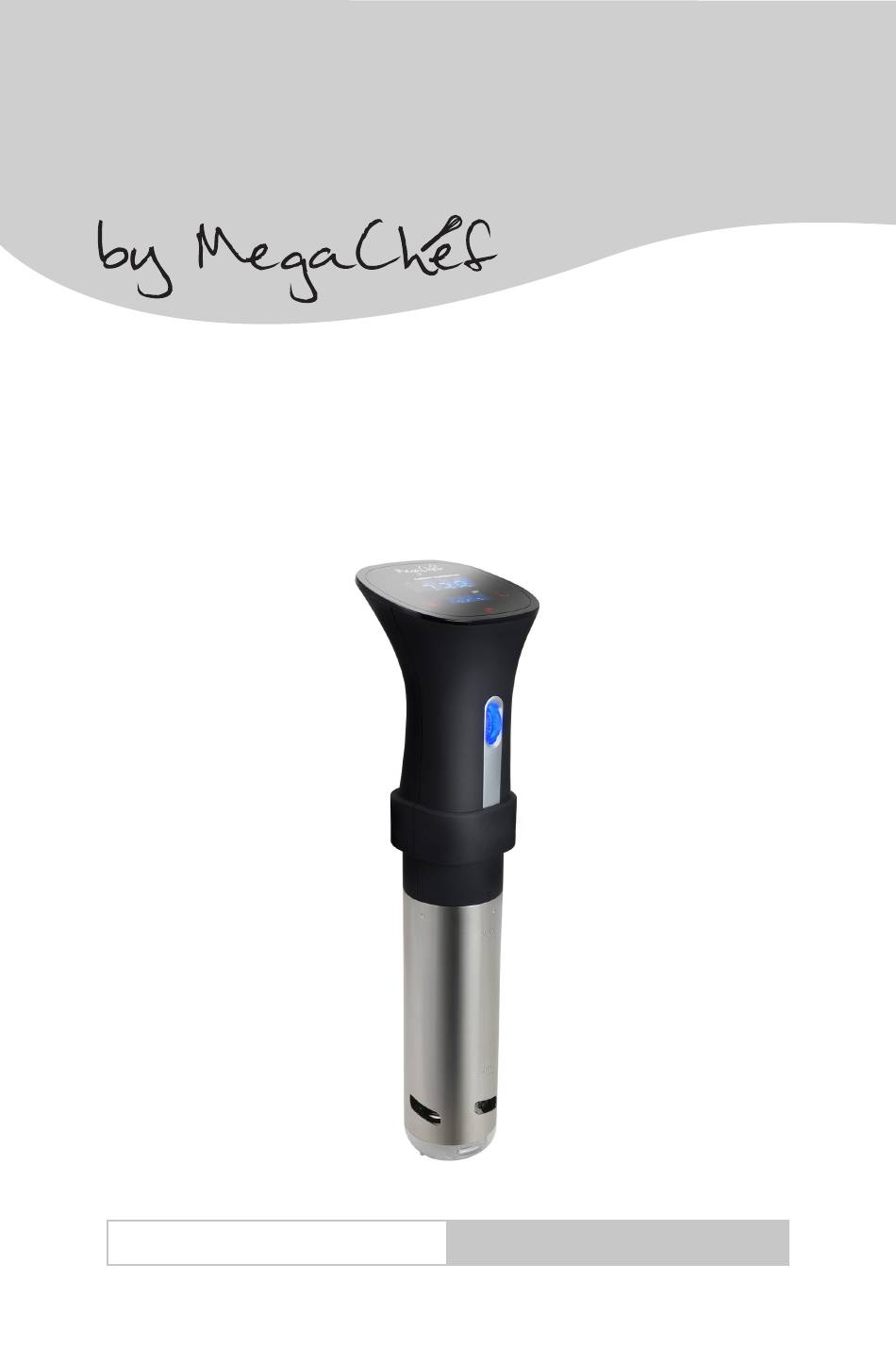

Page 1 SOUS-VIDE COOKER IMMERSION CIRCULATION PRECISION COOKER WITH DIGITAL TOUCHSCREEN PANEL INSTRUCTION BOOKLET Model No. MC-1000...
Page 2 DO NOT ALLOW CHILDREN TO OPERATE UNDER ANY CIRCUMSTANCES CLOSE SUPERVISION IS MANDATORY WHEN THE SOUS-VIDE COOKER IS USED NEAR CHILDREN. 2 | MC-1000 | THE SOUS-VIDE COOKER...
Page 3 Please use the appliance in accordance with the instructions. Please save these instructions. This item is intended for household use only. IMPORTANT: Do not use this sous-vide cooker until you have read this entire manual thoroughly! THE SOUS-VIDE COOKER| MC-1000 | 3...
Page 4: Table Of Contents
C O N T E N T S ABOUT YOUR SOUS-VIDE COOKER IMPORTANT SAFEGUARDS PARTS IDENTIFICATION SETUP OPERATING INSTRUCTIONS CLEANING INSTRUCTIONS TROUBLESHOOTING SPECIFICATIONS 4 | MC-1000 | THE SOUS-VIDE COOKER...
Page 5 Do not modify the plug or use a grounding adapter to bypass the ground connection. Prior to operation, check the unit and power cord for physical damage. Do not use if physical damage has occurred. THE SOUS-VIDE COOKER| MC-1000 | 5...
Page 6 Do not use plastic wrap. The cooker requires a 4.25” (11cm) deep pot or container with a minimum capacity of 2.64 gallons (10 liters). Unplug from outlet when not in use and before cleaning. 6 | MC-1000 | THE SOUS-VIDE COOKER...
Page 7: About Your Sous-Vide Cooker
Using a vacuum-sealed bag will allow for ultimate moisture retention, ensuring perfect texture and tenderness from edge to edge. You can use the Megachef Sous-Vide Cooker to cook meats, seafood, poultry, vegetables, desserts and so much more.
Page 8: Parts Identification
PARTS IDENT IFICA TIO N 1. Touchscreen Control Panel 2. Scroll Wheel 3. Stainless Steel Pump Housing 4. Heating Element 5. Removable Pump Cap 6. Adjustable Ring Clip 7. Tightening Screw 8 | MC-1000 | THE SOUS-VIDE COOKER...
Page 9: Setup
±49.8°F (9.9°C). 2. Press and hold the button for about 5 seconds. The display will show 0.0° 3. Using the scroll wheel, scroll up or down to add or subtract up to 49.8°F (9.9°C). THE SOUS-VIDE COOKER| MC-1000 | 9...
Page 10 The button and scroll wheel will blink and a beep will indicate that the timer has been properly set. The timer will start counting down once the set temperature has been reached. 10 | MC-1000 | THE SOUS-VIDE COOKER...
Page 11 2. Position the openings on the side of the pump cap as desired. Insert the retaining tabs into the pump housing slots, then turn the cap counterclockwise to lock it in place. THE SOUS-VIDE COOKER| MC-1000 | 11...
Page 12: Operating Instructions
Do not place the pot/container on a stove or other heat source. 6. Plug the cooker into the nearby AC power outlet. 7. Press the button on the control panel (1), then use the scroll wheel (2) to set to target temperature. 12 | MC-1000 | THE SOUS-VIDE COOKER...
Page 13 12. When cooking is complete, press the button to stop the process and carefully remove the food bag from the water. PLEASE NOTE : Setting and operating the cooker will be unavailable the water level is below the MIN mark. THE SOUS-VIDE COOKER| MC-1000 | 13...
Page 14 CAUTION: HOT WATER & UNIT, RISK OF SCALDING: USE TONGS OR LONG UTENSIL TO REMOVE THE VACUUM SEALED FOOD BAG FROM THE WATER. DO NOT TOUCH THE PUMP HOUSING UNTIL THE UNIT HAS COOLED DOWN. 14 | MC-1000 | THE SOUS-VIDE COOKER...
Page 15: Cleaning Instructions
Ensure that only the metal parts are exposed to water. Do not expose the upper part of the cooker to water. 5. Allow all parts to fully dry before reassembling. THE SOUS-VIDE COOKER| MC-1000 | 15...
Page 16 (FIG. 2). 6. Turn the pump housing clockwise so that the dimple above the MAX line aligns with the arrow on the cooker body (FIG. 3). FIG. 1 FIG. 2 16 | MC-1000 | THE SOUS-VIDE COOKER...
Page 17: Troubleshooting
Refill the pot as necessary. • THE CIRCULATION OF THE WATER IS BREAKING THE FISH FILLETS OR EGGS Reposition the pump cap to direct the water jet towards the opposite, away from the food. THE SOUS-VIDE COOKER| MC-1000 | 17...
Page 18: Specifications
2.6 GALLONS (10L) MAXIMUM BATH SIZE 4 GALLONS (15L) PUMP VOLUME 2.25 GALLONS/MIN (8.5 L / MIN) INPUT POWER 110 ~ 120 V AC 60 Hz FOR WARRANTY & SUPPORT CONTACT US AT 424-543-1628 18 | MC-1000 | THE SOUS-VIDE COOKER...
