Summary of Contents for BR Remote Multi Function Controller

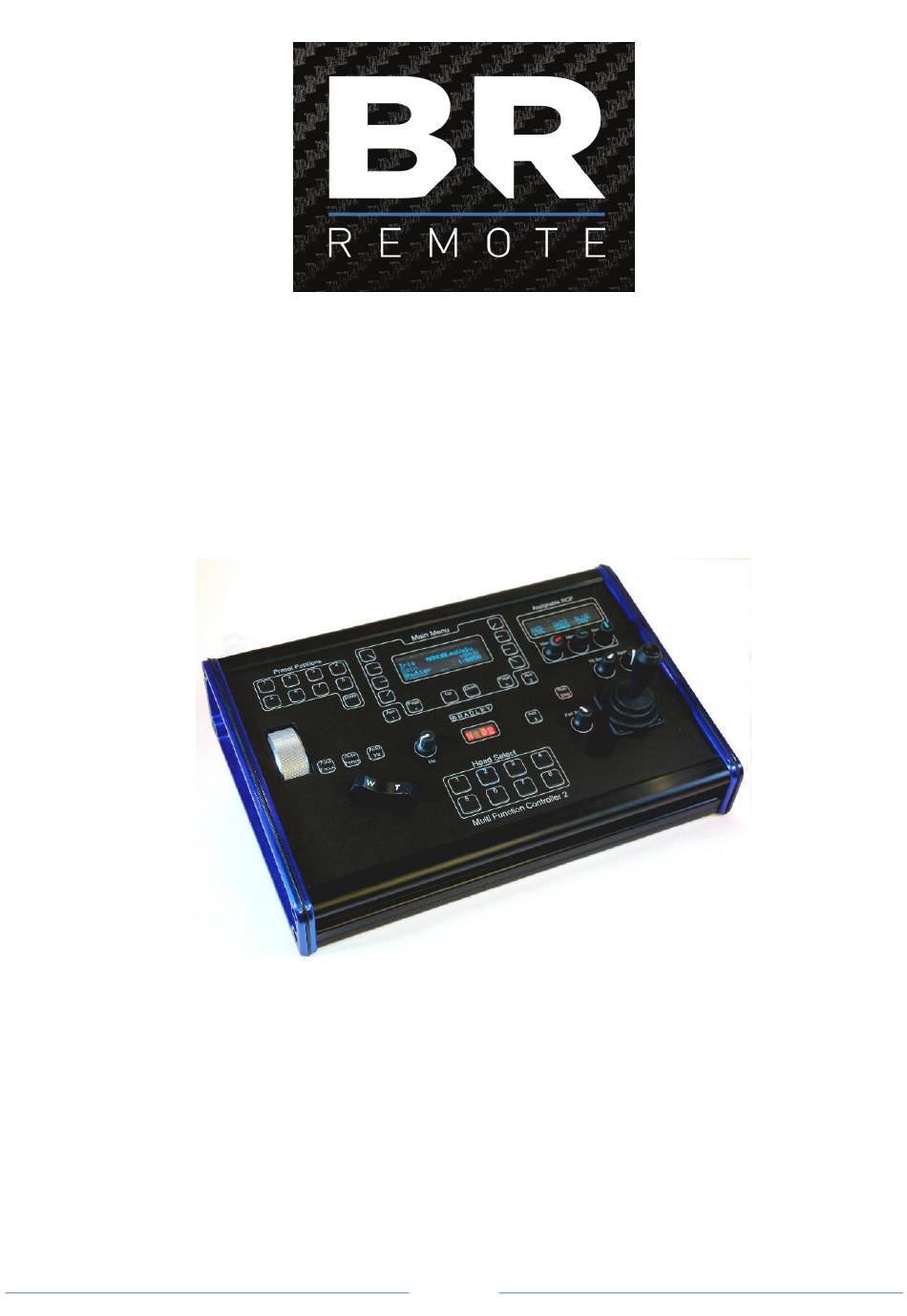

- Page 1 Multi Function Controller Instructions Ver 3.1 - 23/03/2018 Page 1...
- Page 2 Pan, Tilt & Zoom centring Page 8 Assignable RCP Page 8 Aux Buttons Page 9 Connections Page 9 BR Remote Limited Units 14 - 20 Setley Ridge Vineyard Lymington Road Brockenhurst Hampshire SO42 7UF Tel: +44 1590 622440 Web: www.br-remote.com...
- Page 3 Introduction The Multi Function Controller is a sophisticated remote head and camera controller. All accessible functions of both the remote head and the camera itself can be controlled from this controller including many camera engineering functions. Up to 2 Remote Camera Engineering Panels (RCPs) can also be connected into the system via the XLR3 data input sockets on the back panel.
- Page 4 Joystick & Head Controls 2 types of joysticks can be fitted; 1. 2 axis (pan & tilt) 2. 3 axis (3rd axis can be either roll, track or zoom depending on internal switch settings) On the 2 axis joystick a ‘Turbo’ button is fitted to the top of the stalk. When held down, the remote head moves at the highest available speed irrespective of the speed setting.
- Page 5 Zoom Drift is corrected via menu Page 4 on the main LCD. Hold the zoom rocker so the zoom stops and push the Zoom Drift button next to the LCD. It may take a couple of attempts to get this perfect particularly with high speed zooms. All controls can be reversed.
- Page 6 Preset Position Buttons Many remote heads can store pre-set positions. BR Remote Heads can each store a minimum of 8 pre-set positions of Pan, Tilt, Zoom and Focus. Some remote heads can store up to 64 pre-set positions. • Set the shot to be stored with the joystick, zoom &...
- Page 7 Page 4 Digital Zoom On/Off Stabiliser On/Off Aspect Ratio 16:9 / 4:3 Night Vision On/Off Page 5 Speeds Zoom Drift Focus Reverse Zoom Reverse Pan & Tilt Reverse This button cycles through all 4 possible combinations. Page 6 Edit Profile Move – select move with adjacent buttons. Ramp Up Ramp Down Total Time...
- Page 8 Page 12 Desk Settings Backlight adjust Buzzer On/Off Page 13 Select Product – advanced setups for individual products; eg: PID values. ***Not all functions are available on all cameras and heads*** Resetting Pan, Tilt and Zoom centering If there is any drift on pan, tilt or zoom, or if or the movement occurs sooner in one direction than another the controls may need electronically re-centering.
- Page 9 Auxilliary Buttons There are 3 ‘Aux’ buttons located around the panel. These are ‘hot keys’ and can be assigned to any function for instant access. Push and hold the button until it flashes. The next action will be stored under that button. eg;...
- Page 10 There are numerous menu layers and hidden functions for engineering set-ups and adjustments. Should you need to access any more than shown on the primary displays, contact BR Remote who will guide you through. There are also a number of short ‘How To’ videos on our YouTube site. Search for BR Remote in YouTube.
- Page 11 BR Remote Limited Units 14 - 20 Setley Ridge Vineyard Lymington Road Brockenhurst Hampshire SO42 7UF Tel: +44 1590 622440 Web: www.br-remote.com Page 11...
- Page 12 Page 12...
