Summary of Contents for Pittsburgh Modular VILFO

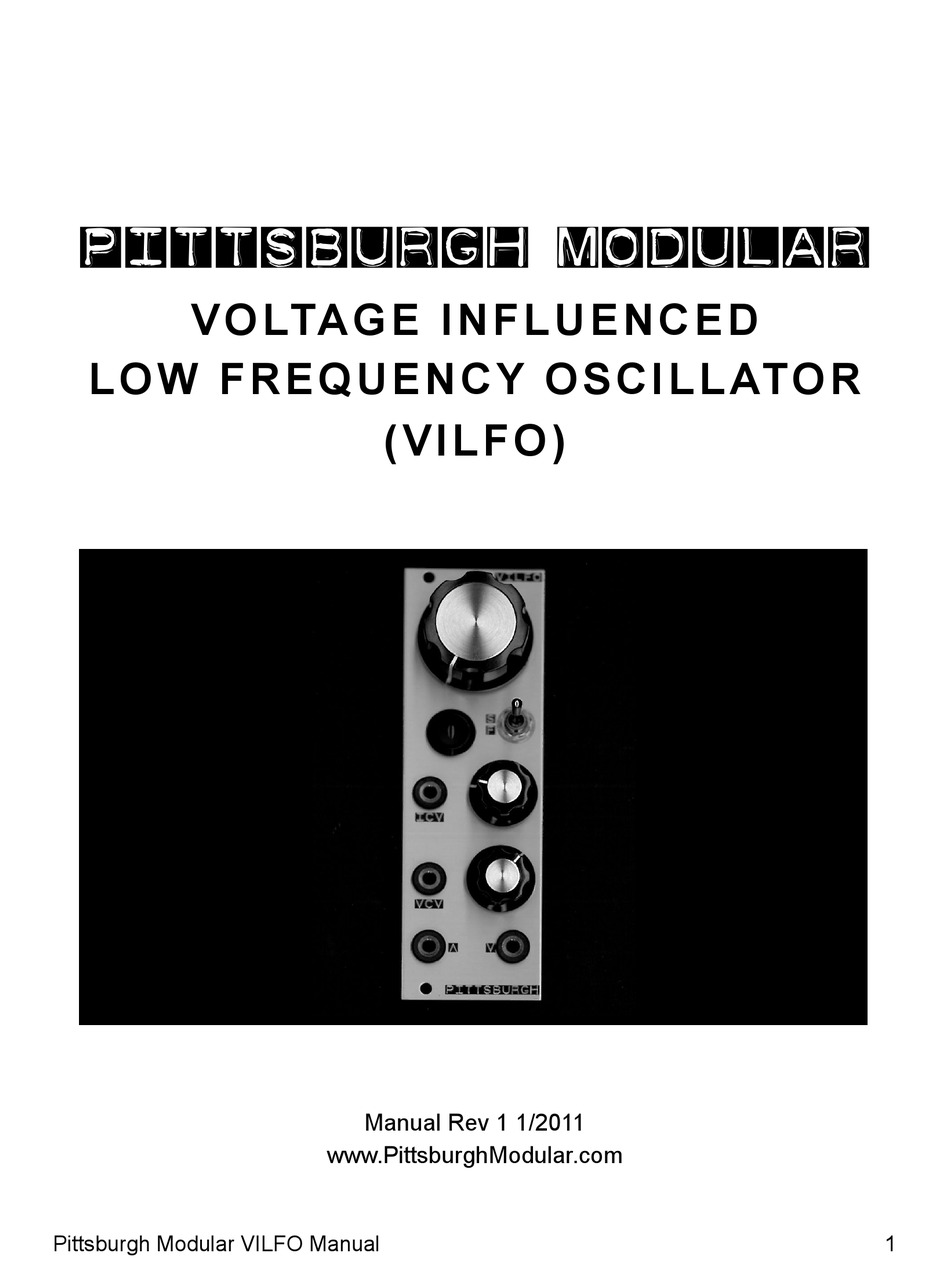

- Page 1 P I T T S B U R G H M O DU L AR V O LTA G E I N F L U E N C E D LOW FREQUENCY OSCILLATOR ( V I L F O ) Manual Rev 1 1/2011 www.PittsburghModular.com Pittsburgh Modular VILFO Manual!
- Page 2 Subtle results can be similar to tremolo, shuffle, or soft reset while more extreme settings produce glitchy, rhythmic, chaotic fluctuations in the frequency of the VILFO. At the most extreme the VILFO can be stopped using Voltage Influence. Pittsburgh Modular VILFO Manual!
- Page 3 Influence Control Voltage Attenuator Knob (ICV Knob) Voltage Controlled Variable Waveform Controls: Variable Control Voltage Input / Output (VCV Input) Variable Waveform Shift / Variable CV Knob (VCV Knob) Outputs: Triangle Wave Output ( ) Variable Wave Output (V) Pittsburgh Modular VILFO Manual!
- Page 4 ICV to 0 and right to increase the amount of ICV fed to the VILFO. A VCA can be used before the ICV Input to automate the amount of CV sent to the Influence circuit.
- Page 5 Set the Frequency Knob to 12 o'clock, the ICV Knob full clockwise, and the VCV Knob full counterclockwise. Switch the S/F Switch to (S)low. Patch the Triangle Output of the VILFO to an oscillator, filter, or other module that accepts CV modulation. Patch an external LFO to the ICV Input. Adjust the Frequency Knob and ICV Knob to taste.
- Page 6 Patch the Variable Output of the VILFO into the clock input of a sequencer. Patch the output of another LFO into the VCV Input of the VILFO. Adjust the Frequency Knob to the desired tempo and the adjust the VCV Knob until the VCV Input affects the output of the VILFO.
- Page 7 VILFO Specs Frequency Range: Minutes to audible mid bass range Size: 8hp Depth: 53mm Power: +-12v or +-15v Power Usage: 30mA The VILFO was designed by Richard Nicol. Pittsburgh Modular VILFO Manual!
