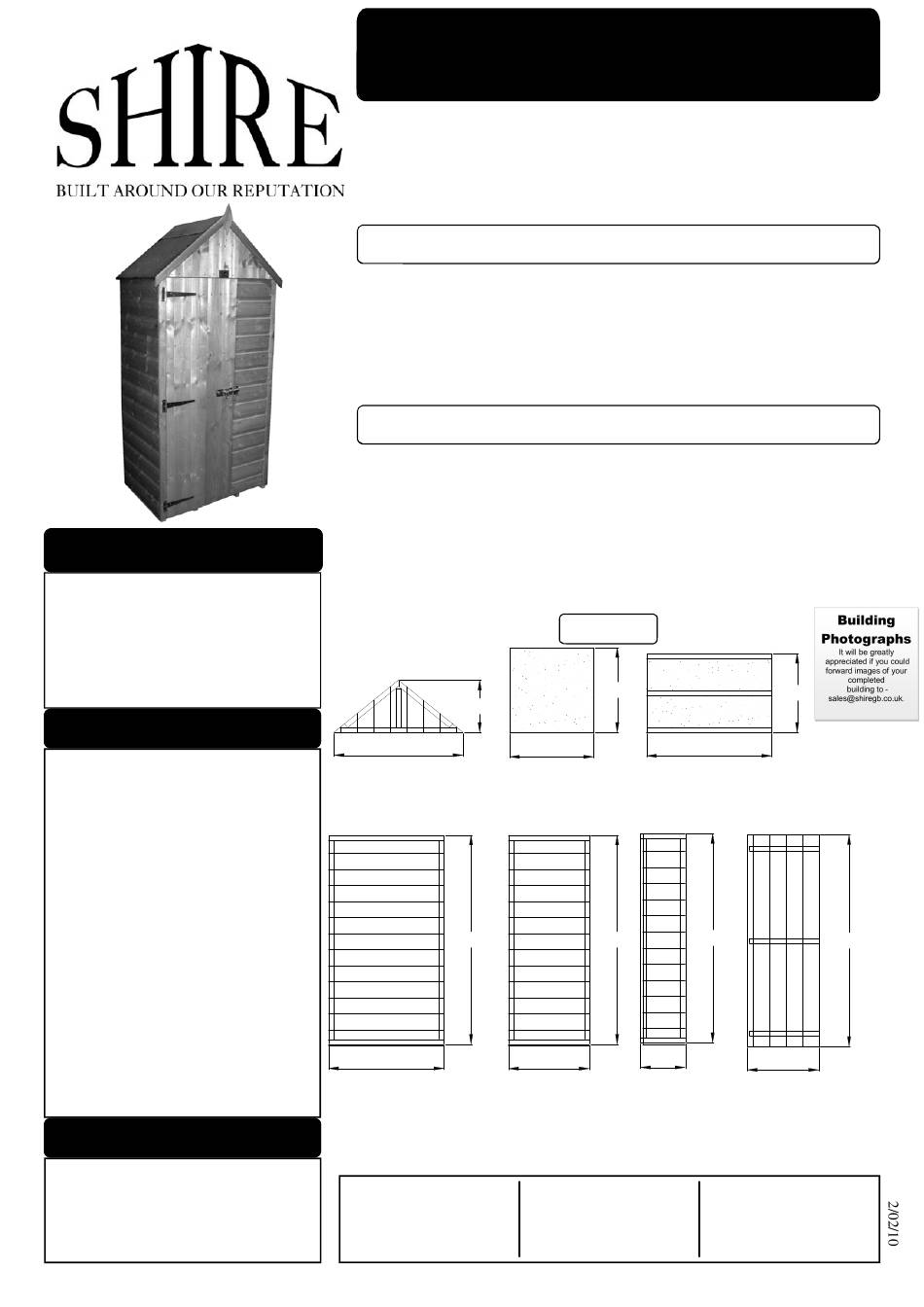

Shire 147518 Manual

Batch No.3930
TOOLS REQUIRED
Hammer
●
Sand paper
●
Battery-powered drill/screwdriver
●
Pencil
●
Tape measure
●
Gloves
●
Sharp knife
●
IMPORTANT!
PLEASE READ PRIOR TO ASSEMBLY OF
THE BUILDING
EVERY PRECAUTION IS TAKEN TO
ENSURE THAT YOUR BUILDING HAS NO
ELEMENT INCORRECTLY PLACED OR
POSSIBLY HAZARDOUS, HOWEVER
PRIOR TO USE PLEASE CHECK ALL
SURFACES FOR THE FOLLOWING:
1 RAISED GRAIN, SPLINTERS: sand
down timber to smooth finish
2 NAIL/SCREW/PIN HEADS PROUD: tap
home to be flush with surface of timber
3 DAMAGED SCREW HEADS
RESULTING IN SHARP SPLINTERS OF
METAL: replace
4 SHARP ENDS OF NAILS/ SCREWS/
PINS PROTRUDING THROUGH THE
PANEL: remove and reposition.
5 ENSURE ALL PARTS ARE SECURED
AGAINST REASONABLE FORCE:
remove and refit
6 ENSURE THERE ARE NO LOOSE
PARTS: remove and refit/discard
We recommend that protective
gloves be worn throughout
PLEASE NOTE
Wood is a natural product and is therefore
prone to changes in appearance, including
some warping, movement and splitting,
particularly during unusual climatic conditions
(long hot or wet spells of weather). As a natural
occurrence this is not covered by a guarantee.
Shiplap Tool Store
Small Handy Store
Thank you and congratulations on the purchase of your Shire garden building. We
believe that this product will give you many years of excellent service. This is a
natural product manufactured to a high standard therefore if you have any queries
or experience any difficulties then please contact our customer service hotline on
01945 465 295.
Normal office hours: 8.30 am to 5.00 pm Monday to Friday.
Preparation of base
We recommend that the base onto which your building will stand should be at least
75mm larger in each direction than the total floor size of the building.
Actual floor area of the building: 868x560 (2'10x 1'10)
Total height clearance: 1914mm
The chosen position in your garden for the siting of the building should be
excavated to a depth of 75mm to allow a base of sand, on to which paving slabs
can be evenly laid - THEY MUST BE LEVEL AND FIRM.
Treatment/care of your Garden Building
Treat with a suitable decorative wood finish immediately. We recommend that all
timber pieces be treated again prior to assembly and again within 3 months of
assembly. We further recommend that all pieces are treated again at least annually
or as frequently as the instructions on the product used recommends.
We would suggest that all wall panels be treated in an upside-down position to
allow the finish/treatment to ingress into the tongue and groove jointing.
Garden buildings are not waterproof, therefore on assembling building we
recommend using a silicon based sealant between wall panels and between
wall panels and floor.
370
892
GABLE QTY 2
ROOF PANEL
1482
800
BACK PANEL
SIDE PANEL
PLEASE LAY OUT PARTS AND CHECK OFF AGAINST CHECK LIST
QTY DESCRIPTION
4 Cover strips 46x12x1500
4 Fascia 46x12x670mm
1 Door stop strip 28x12x490
1 Diamond
Parts List
600
868
583
FLOOR
QTY 2
1482
1482
310
560
WING
QTY 2
PANEL
22 60 mm screws
27 25 mm screws
26 40 mm nails
53 Felt nails
16 Felt nails - long
560
EXTERNAL
VIEW OF
PANELS
1500
495
DOOR
1 Felt roll 2m x 1m
1 Pad bolt fixing block
34x34x150mm
1 Pad bolt
3 Door 'T' hinges
