Paragon Pro Telpro The Troll 112 Manual

Panel handler

Model 112

Slide clamp will

handle a load

size from 28.5

to 51 inches.

53.5 In.

overall

height

28.5 - 51 In.

2 Inch shoe

18 In. overall width

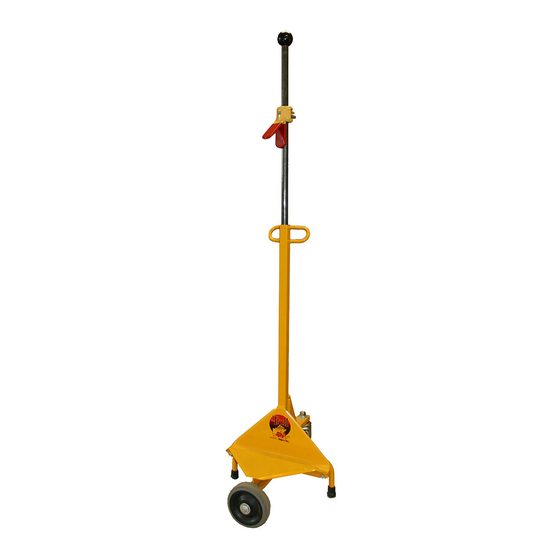

The Troll

Panel Handler Model 112 makes light work of hustling drywall,

plywood and other heavy building panels around the work site. Its unigue

design locks the load vertically for easy mobility. Patented omni-directional

design makes fast, safe handling of building loads in tight quarters a snap.

The 250 lb. capacity hauls 4 sheets of half-inch board as well as large

banquet tables and solid core doors.

Form 42-12-00-00.07-10-02

Table of Contents

Need help?

Do you have a question about the Telpro The Troll 112 and is the answer not in the manual?

Page 1 The 250 lb. capacity hauls 4 sheets of half-inch board as well as large banquet tables and solid core doors. Form 42-12-00-00.07-10-02 © 2019 Paragon Pro Manufacturing Solutions All Rights Reserved.
Page 2 Unpack box and check for assembly components. (You will need two 7/16 wrenches) 1.UPRIGHT FRAME 2. WHEEL BASE 3. FLOOR PLATE Begin by clipping 4. LEG PIPE the LEG PIPE onto the LEG PIPE onto 5. SLIDE PIPE with SLIDE CLAMP the SLIDE PIPE in the the SLIDE PIPE in the ASSEMBLY...
Page 3 Fasten the FLOOR PLATE to the Fasten the wheeel base to the UP- UPRIGHT FRAME using four 1/4” x 1/2” RIGHT FRAME using three 1/4” x 3/4” bolts and 1/4” lock nuts. Inserting the bolts and 1/4” lock nuts. Finger tighten bolts will be easier if done in the order only at this time.
Page 4 Using the Troll Model 112 ® Step 4 Step 1 You’re now ready to roll. Position the Troll in the middle of the ® load with the SLIDE CLAMP up and the LEG PIPE down. Lift one end of the and place it in the shoe of The load ®...
Page 5 This product contains trace amounts of the following items which are known to cause cancer and/or developmental harm in the state of California. These chemicals are not hazardous under product's intended use. Please review CAS# for more information. Chemical Hazard CAS# % By Weight Arsenic...
