ITC Elio VersiControl 21055 Install Instructions

PARTS / TOOLS NEEDED:
VersiControl RGB

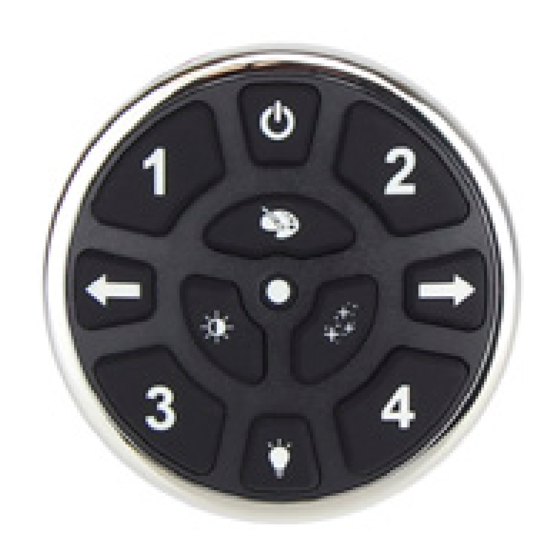

Smart Pad
Safety Instructions
• Disconnect power before installing, adding or changing any component.
• To avoid a hazard to children, account for all parts and destroy all packing materials.
• Do not install any luminaire assembly closer than 6" from any combustible materials.
• Positive (+) outputs require a fuse if the attached wire leads are not rated to handle the max current.

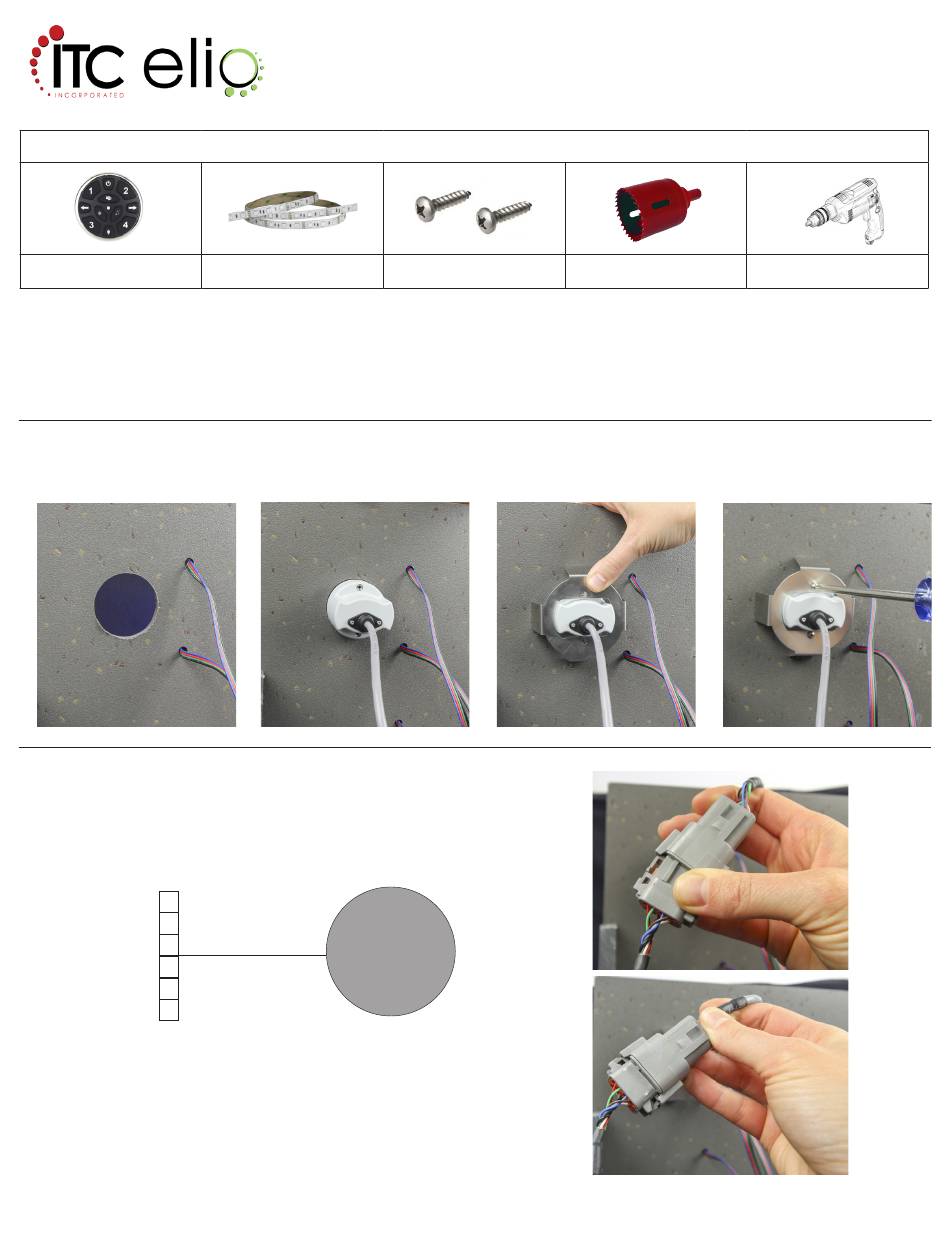

1.
INSTALL CONTROL PAD: Determine the installation location of your control pad. Note the control module comes with a 7" long cord so
the control pad will need to be located near the module. Drill a 2" hole and insert the control pad. Install the mounting bracket using the
two 3x19mm stainless steel Phillips pan head screws provided. Do not fully torque screws until both have been partially installed.
2.
CONNECT CONTROL PAD: Insert the connector on the control pad into the
connector on the module.
V(+) 1
2
V(-)
Shield 3
Signal Line
4
CAN (+)
5
CAN (-)
6
*Mating connector Deutsch DTM06-6S
Phone: 616-396-1355 • www.itc-us.com • sales@itc-us.com • DOC#: 710-00026 Rev C • 09/13/17
VersiControl RGB Control Pad Install Instructions
RGB Lighting
Mounting Screws x 2
(Varies)
Controller
For warranty information please visit www.itc-us.com
3030 Corporate Grove Dr. • Hudsonville • MI • 49426
(Part #'s: 21055)
2" Hole Saw Bit Power Drill
