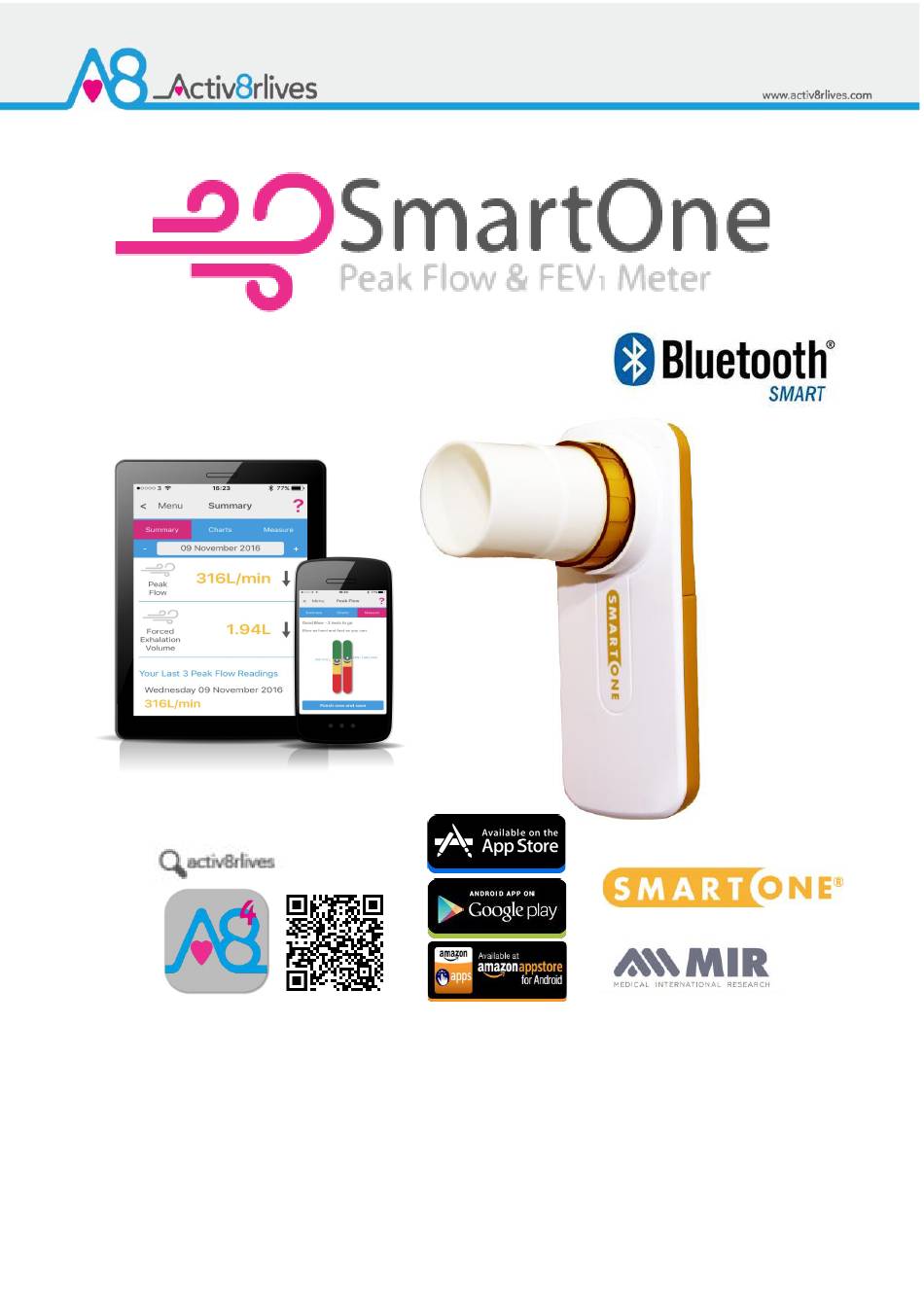

- Page 1 Pulmonary Health www.activ8rlives.com SmartOne Peak Flow Meter connects via Bluetooth 4.0 (Smart) & upload data to Activ8rlives. FREE App that works with: iOS 10 and above (iPhone 5s or later & iPad 4 or later) and select Android devices running Android 5.0 and above.
-
Page 2: Table Of Contents
Contents Getting started Your SmartOne Peak Flow & FEV Meter Health and Safety Notices Adding the Batteries Cleaning your device How does the device work? 10-13 Installing Activ8rlves App 14-15 Register for Activ8rlives account 16-17 Start-up Screens 18-19 Connecting by Bluetooth... - Page 3 From tracking levels of physical activity, weight, food intake, cardiovascular and lung function, to a new generation of at-home testing for long-term lung disease, we provide the devices and web-based tools to help you be active, eat well and stay healthy. Learn more at www.activ8rlives.com...
-
Page 4: Getting Started
Need Help Setting-Up? Call us 7 days a week, between 9:00—18:00 UK +44 (0)1480 352 821... -
Page 5: Your Smartone Peak Flow & Fev 1 Meter
Activ8rlives SmartOne Peak Flow Meter helps you to understand how your lung function can change throughout the week, during periods of ill health, change of medication or as you change your weight and activity levels. It measures your Peak Expiratory Flow rate (PEF) and also determines how restricted your airways are (FEV ) using a non-invasive monitoring technology. - Page 6 SmartOne Peak Flow Your Activ8rlives SmartOne Peak Flow Bluetooth has several parts, the Main Unit or Device, Turbine, and Mouthpiece. The Main Unit houses all the electronics and Bluetooth component and the Turbine and Mouthpiece then slot into it. The...
-
Page 7: Health And Safety Notices
Health and Safety Notices WARNINGS: The Activ8rlives SmartOne Peak Flow Meter main unit is NOT waterproof. Do not submerge it in water. PLEASE seek medical advice before undertaking strenuous exercise or weight loss programmes. Seek advice from your Doctor about any long-term condition. This device should not be used to make a primary diagnosis. - Page 8 Note: Do not tamper or attempt to open the unit in which the non- rechargeable batteries are housed, your warranty will be invalidated. Substances contained within the battery may damage the environment or human health if handled and thus is a risk of electrical shock or burns. When disposing of this product and its batteries, ensure that it is collected separately for special treatment and not as normal household waste.
-
Page 9: Adding The Batteries
Adding the Batteries Your Activ8rlives SmartOne Peak Flow meter uses two AAA 1.5V alkaline batteries, which are supplied. These are non-rechargeable batteries and no attempt should be made to recharge these. Open the battery compartment from underneath and insert 2 x AAA batteries in the direction indicated. - Page 11 Activ8rlives SmartOne Peak Flow meter is a small, hand-held device used to monitor a person’s ability to breathe out air. It measures the airflow through the bronchi of the lungs and can be used to estimate the degree of obstruction in the airways.
- Page 12 Reference: Nunn A. J., Gregg I., British Med J, 1989: 298, 1068-70. For use with EN13826 / EU scale peak flow meters.
- Page 13 What Your Measurement Means Peak flow values are often classified into 3 zones of measurement according to the American Lung Association: Green, Amber and Red. Doctors and health practitioners develop self-management plans based on the green-amber- red zones. This device automatically stores the highest (best) value to date, with the green range being any reading above 80% of this best value.
-
Page 14: Installing Activ8Rlves App
OK, let’s get started with the Setup This guide will instruct you how to: Activ8rlives SmartOne Peak Flow & FEV Meter is programmed by and uploads information directly to and from your Activ8rlives account each time your Bluetooth Smart (also known as 4.0 or Bluetooth Low Energy BLE) Smartphone or Tablet is connected to it (not included). - Page 15 IMPORTANT NOTE: Please adjust the screen lock function on your Smartphone or Table to be longer than 2 minutes to allow the Activ8rlives SmartOne Peak Flow & FEV Meter time to sync with your device. Short times of less than 2 minutes cause frequent loss of connectivity.
-
Page 16: Register For Activ8Rlives Account
Register for Activ8rlives Account Once you have installed the Activ8rlives Wellness and Diary App, open the App making sure your Smartphone or Tablet is connected to the internet with Bluetooth switched on. If you have already Registered, you can Login to... - Page 17 How to Videos on App A Quick Tour showing what the Activ8rlives Activ8rlives Wellness and Diary App can do is available from the App. Scroll down to see a quick overview of what you can do with this App.
-
Page 18: Start-Up Screens
Start-up Screen moves to Main Menu automatically. Make sure that Bluetooth on your Smartphone or Tablet is switched on. - Page 19 From the Main Menu, select Upload Devices. Make sure you have also set your Screen lock to longer than 2 minutes.
-
Page 20: Connecting By Bluetooth
SmartOne Peak Flow meter now needs to be paired with your Smartphone or Tablet. The App will display the Serial Number of your Activ8rlives SmartOne Peak Flow meter if it is within Bluetooth range. If this Serial Number matches the number on your Activ8rlives... -
Page 21: Taking A Reading
Taking a Reading If the Activ8rlives Wellness and Diary App looks like this, it is ready for you to take one of three readings. Press Next to continue and go to the next screen. The instructions on screen will ask you to sit or stand comfortably for the test. -
Page 22: Viewing Data
(Green), alert (Amber) and out of parameter readings (Red) are easily seen on these graphs. Note: If your Activ8rlives SmartOne Peak Flow is NOT connected to your Smartphone or Tablet via Bluetooth, the data will NOT be stored on the Activ8rlives SmartOne Peak Flow. -
Page 23: Sending Data To Cloud
Sending Your Data to Cloud If your Smartphone or Tablet is connected to the internet by WiFi, your data will upload to your online Activ8rlives account automatically. Touch the Cloud and it will automatically detect and synchronise if you are on WiFi. - Page 25 Along with the Activ8rlives SmartOne Peak Flow, you can monitor and adjust your body composition (from the Activ8rlives Body Analyser Bluetooth), blood oxygen...
- Page 26 Find Activ8rlives products at...
-
Page 27: Apple Health Integration
Apple Health (HealthKit) Integration Included in the Activ8rlives Wellness and Diary App is the ability to allow users to record data from Activ8rlives’ growing range of consumer- focused health monitors and store these data in both the Activ8rlives web-servers and Apple’s... - Page 28 Help Videos in App, follow this Website www.Activ8rlives.com YouTube http://bit.ly/Activ8rlives...
-
Page 29: Trouble Shooting
5s & above, iPad 4 & above & Android 5.0 & above). If the Activ8rlives SmartOne Peak Flow device will not con- nect to Bluetooth, first check that you have Bluetooth turned on, on your smartphone or tablet. If your device is still not seeing the... -
Page 31: Manual Data Entry And Custom Trackers
Manual Data Entry You can also manually enter your data from other self-monitoring devices into your Activ8rlives account. Login to your Activ8rlives account in the usual manner and select from the Menu the Manual Data Entry page. You can use the Data categories we current-... -
Page 33: Case Study
Case Study The relationship between declining PEF and FEV and medication doses (Symbicort ) is seen in the data below. Note the period of decreased PEF and FEV in the life of our volunteer and the resulting compliance in medication to bring both parameters back to nearer a normal for this volunteer. -
Page 34: Specifications
Specifications Type Description Dimensions of main unit 109 x 49 x 21mm Weight 60.7g (including batteries) Communication interface Bluetooth Smart (4.0 or higher) Expiratory volume in one second Litres (L) 1— PEF— Peak expiratory flow L/minute Flow/volume measurement systems Bi-directional turbine Measurement principle Infrared interruption Maximum volume measured... -
Page 35: Warranty
— details are on the back of this User Manual. EU-Declaration of Conformity Activ8rlives declares that the Activ8rlives SmartOne Peak Flow and FEV Meter is a certified Class IIa medical device, and complies with the requirements of EU Directive 93/42/EEC. 0476... -
Page 36: Website
Quick Guide to the Activ8rlives Website Home Page Activ8rlives Wellness and Diary App is just the start of the self-monitoring experience. There is so much more to explore online at www.activ8rlives.com Our website has a secure Login—you use the same Username and Password that you use on the App. -
Page 37: Groups And Adventures
Join a Group, Start Your Own and Keep in Touch! We work best in groups. This motivates and provides support for this function. This can be used for: family, friends or Corporate teams, for charity events, personal health training or fundraising activities. -
Page 38: Rewards And Medals
Rewards and Medals Being active everyday is vital for long-term health and wellbeing. To encourage consistent activity, Activ8rlives has two rewards systems. Medals are earned as you gain days of activity. They do not have to be consecutive days. Bronze Medal = 7 days of 10,000 steps. -
Page 39: Food Diary
Track your food and liquid intake using our photo-based free Activ8rlives Wellness and Diary App. Take pictures of what you eat and drink with your Smartphone or Tablet. Brings mindfulness to your eating habits and portion size. Records photos of what you eat and drink in your Activ8rlives Wellness and Diary App. - Page 40 Award winning...
