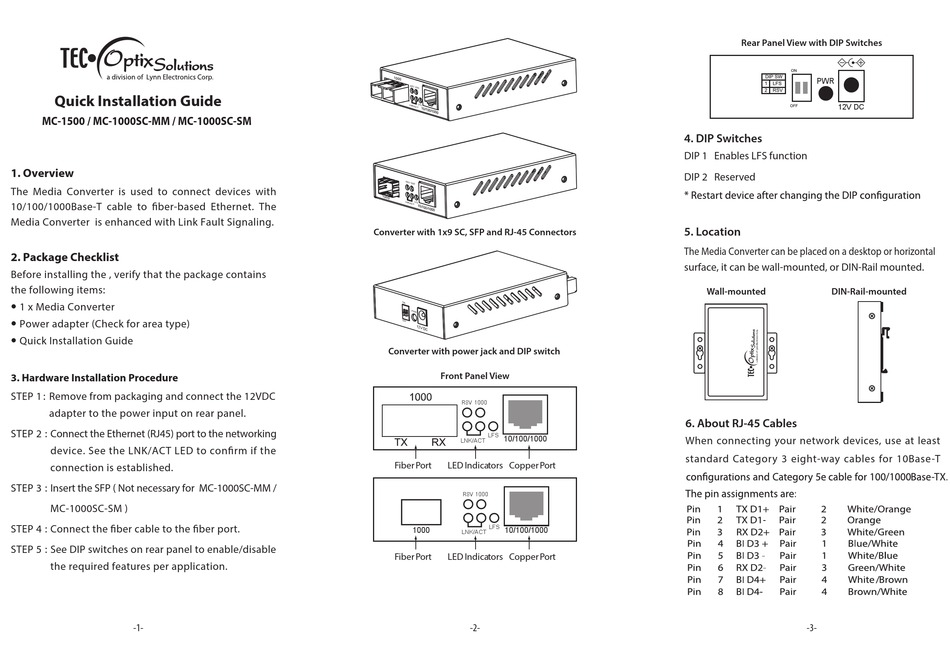

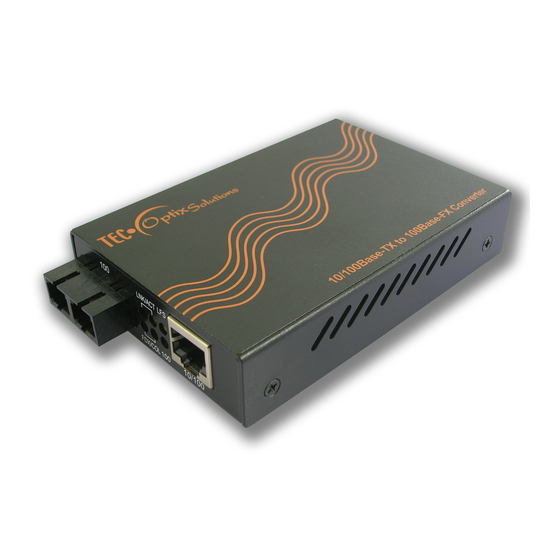

Quick Installation Guide
MC-1500 / MC-1000SC-MM / MC-1000SC-SM

1. Overview

The Media Converter is used to connect devices with
10/100/1000Base-T cable to ber-based Ethernet. The
Media Converter is enhanced with Link Fault Signaling.

2. Package Checklist

Before installing the , verify that the package contains
the following items:
 1 x Media Converter
 Power adapter (Check for area type)
 Quick Installation Guide

3. Hardware Installation Procedure

STEP 1 : Remove from packaging and connect the 12VDC
adapter to the power input on rear panel.
STEP 2 : Connect the Ethernet (RJ45) port to the networking
device. See the LNK/ACT LED to con rm if the
connection is established.
STEP 3 : Insert the SFP ( Not necessary for MC-1000SC-MM /
MC-1000SC-SM )
STEP 4 : Connect the ber cable to the ber port.
STEP 5 : See DIP switches on rear panel to enable/disable
the required features per application.
-1-
Converter with 1x9 SC, SFP and RJ-45 Connectors
Converter with power jack and DIP switch
Front Panel View
RSV 1000
LFS
10/100/1000
LNK/ACT
Fiber Port LED Indicators Copper Port
RSV 1000
LFS
1000 10/100/1000
LNK/ACT
Fiber Port LED Indicators Copper Port
-2-
Rear Panel View with DIP Switches
PWR
12V DC

4. DIP Switches

DIP 1 Enables LFS function
DIP 2 Reserved

5. Location

The Media Converter can be placed on a desktop or horizontal
surface, it can be wall-mounted, or DIN-Rail mounted.
Wall-mounted DIN-Rail-mounted

6. About RJ-45 Cables

When connecting your network devices, use at least
standard Category 3 eight-way cables for 10Base-T
