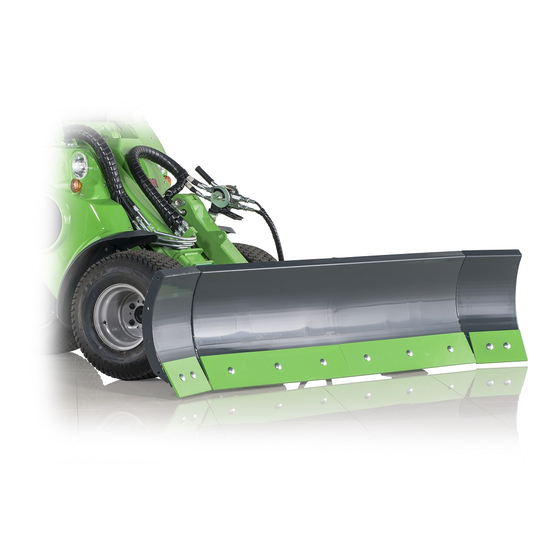

- Page 1 English Dozer Blade 2000 2016 1 Operator's Manual for Attachment Dozer Blade 2000 Dozer Blade 2500 Product number 2000 mm A36123 2500 mm A36251 www.avanttecno.com...
- Page 2 Dozer Blade 2000 2016 1...
-
Page 3: Table Of Contents
Dozer Blade 2000 2016 1 CONTENTS 1. FOREWORD ............................4 2. DESIGNED PURPOSE OF USE......................5 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............6 4. TECHNICAL SPECIFICATIONS ....................... 8 Safety labels and main components of the attachment ..................8 5. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Designed Purpose Of Use
2. Designed purpose of use The AVANT Dozer Blade 2000 is an attachment suitable for use with AVANT multi purpose loaders shown in Table 1. The dozer blade is intended for ploughing snow, and can also be used for ploughing soil or sand. As standard, the blade is equipped with hydraulic slewing, which enables to choose the side to which the material will be transferred without interrupting work. -
Page 6: Safety Instructions For Using The Attachment
6 (22) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. - Page 7 Always lower the attachment to a safe position before leaving the driver's seat. Observe the local regulations concerning the use of the equipment on public roads. The loader may need to be registered for road use. Contact your local Avant dealer or local authorities for more information.
-
Page 8: Technical Specifications
Hydraulic Hydraulic Weight, with extensions: 215 kg 232 kg Maximum input of hydraulic energy: max 22,5 MPa (225 bar) Compatible Avant loaders: See Table 1 Optional extras: Rubber blades, kit for main blade and A417441 A417672 extensions: Ice cutting blades kit, for main blade and... - Page 9 9 (22) Table 3 - Decal locations and warning messages Decal Warning message A46771 Read instructions before use. A46772 Crushing hazard - Do not go under a raised attachment; stay away from raised equipment. A46803 Pinching and crushing hazard, keep clear of moving parts, do not leave the equipment running.
-
Page 10: Attaching The Attachment
Mount the attachment only on level surface. Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position. -
Page 11: Connecting And Disconnecting The Hydraulic Hoses
On the 200 series 2 and 400-700 series loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services. - Page 12 12 (22) To disconnect the multi connector system: Before disconnecting put the attachment down on a solid and even surface. 1. Switch off the auxiliary hydraulics of the loader. 2. While pushing unlock button, turn the lever to disconnect the connector.
-
Page 13: Instructions For Use
13 (22) 6. Instructions for use Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment. -
Page 14: Operating The Dozer Blade
14 (22) 6.2 Operating the dozer blade Correct operating position: The vertical position of the blade will affect the outcome and accuracy of dozing. As a rule, the blade should be adjusted to an upright position. According to circumstances you may try to tilt the blade a little to front or back for example when removing ice. -
Page 15: Blade Floating
15 (22) 6.2.2 Blade floating The completely new floating system allows the blade to float vertically, which makes working on uneven surfaces considerably easier and more efficient. The blade can also float sideways, or locked as rigid. Floating is set with pins, which are stored on the frame of the attachment: Freely floating mode: Blade is in freely floating mode, when both pins are not fitted, and they are stored on the frame... -
Page 16: Locking The Blade
16 (22) 6.3.1 Locking the blade Normal operating mode In normal operating mode the blade is unlocked and the spring release system works as intended. The pin on the spring assembly is removed from the top of the spring release assembly. Store the locking pin on the extra holes of the spring release on the blade. -
Page 17: Blade Extensions
17 (22) Remove the skid shoe and slide the support wheel into its place. 6.5 Blade extensions The blade can be configured to different positions: 1. Straight position Push material easily on either side 2. Collecting position Collect materials, such as snow, easily, for quick and clean result To avoid damaging the blade, do not bolt the extensions on each other. - Page 18 18 (22) Never operate the blade without any edge plate fitted, or if the edge plate is too worn. The blade may get easily damaged if operated without any edge plate.
-
Page 19: Maintenance And Service
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and experience about hydraulic assemblies and how to perform the repairing safely. -
Page 20: Cleaning The Attachment
8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: ... - Page 21 Hydraulisk snøskjær; redskap for Avant minilastere A36123 Hydraulisk dozerblad; redskab til Avant Minilæssere A36251 Hydraulic dozer blade; attachment for Avant loaders Hydraulische Planierschild; Anbaugerät für Avant Radlader Lame de nivellement à commande hydraulique destinée à être utilisée avec les chargeuses Avant 22.1.2016 Ylöjärvi, Finland...
