Summary of Contents for nVent Hoffman DPC
- Page 1 DPC User Manual Rev. B © 2018 Hoffman Enclosures Inc. P/N 87928904 87928903 PH 763 422 2211 • nVent.com/HOFFMAN...

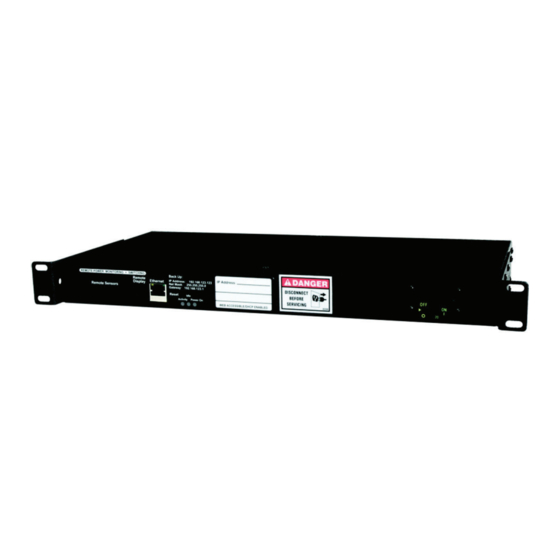

- Page 2 Description The DPC Series consist of Power Distribution Units and Outlet Control and Monitoring with a built in web server in a self− contained unit. Web pages, including graphs, are generated from the unit, and monitor power and environmental conditions within the cabinet.
- Page 3 Setting an IP Address The DPC units have a permanent IP address for initial setup and access to the unit if you forget the address you assign to it. The Configuration page allows you to assign the network properties or use DHCP to connect to your network. Access to the unit requires the IP address to be known, so use of a Static IP or reserved DHCP is recommended.
- Page 4 Remote Outlet Switching Control There are six possible actions for any given outlet, available from the “Action” drop down box on the Control page: 1. On – Immediate: Turns on all checked outlets immediately. 2. On – Delayed: Turns on all checked outlets subject to the “Power On” delays entered at the bottom of the Control page.
- Page 5 Setting Alarms For all data collected by the unit, the user can set high and low limits. When these limits are exceeded the user has the option of sending an email, SNMP trap, activate the audible alarm (on units where it is present), or any combination of the three. The SNMP traps can be sent to 4 IP addresses.
- Page 6 Telnet When using Telnet to connect to the unit, the Administrator username and password from the Configuration page will be required. If the Administrator user is not configured, the Telnet server will be enabled, but logins will be impossible. The Telnet server can be disabled on the Configuration page.
- Page 7 Rev. B © 2018 Hoffman Enclosures Inc. P/N 87928904 87928903 PH 763 422 2211 • nVent.com/HOFFMAN...
- Page 8 Rev. B © 2018 Hoffman Enclosures Inc. P/N 87928904 87928903 PH 763 422 2211 • nVent.com/HOFFMAN...
