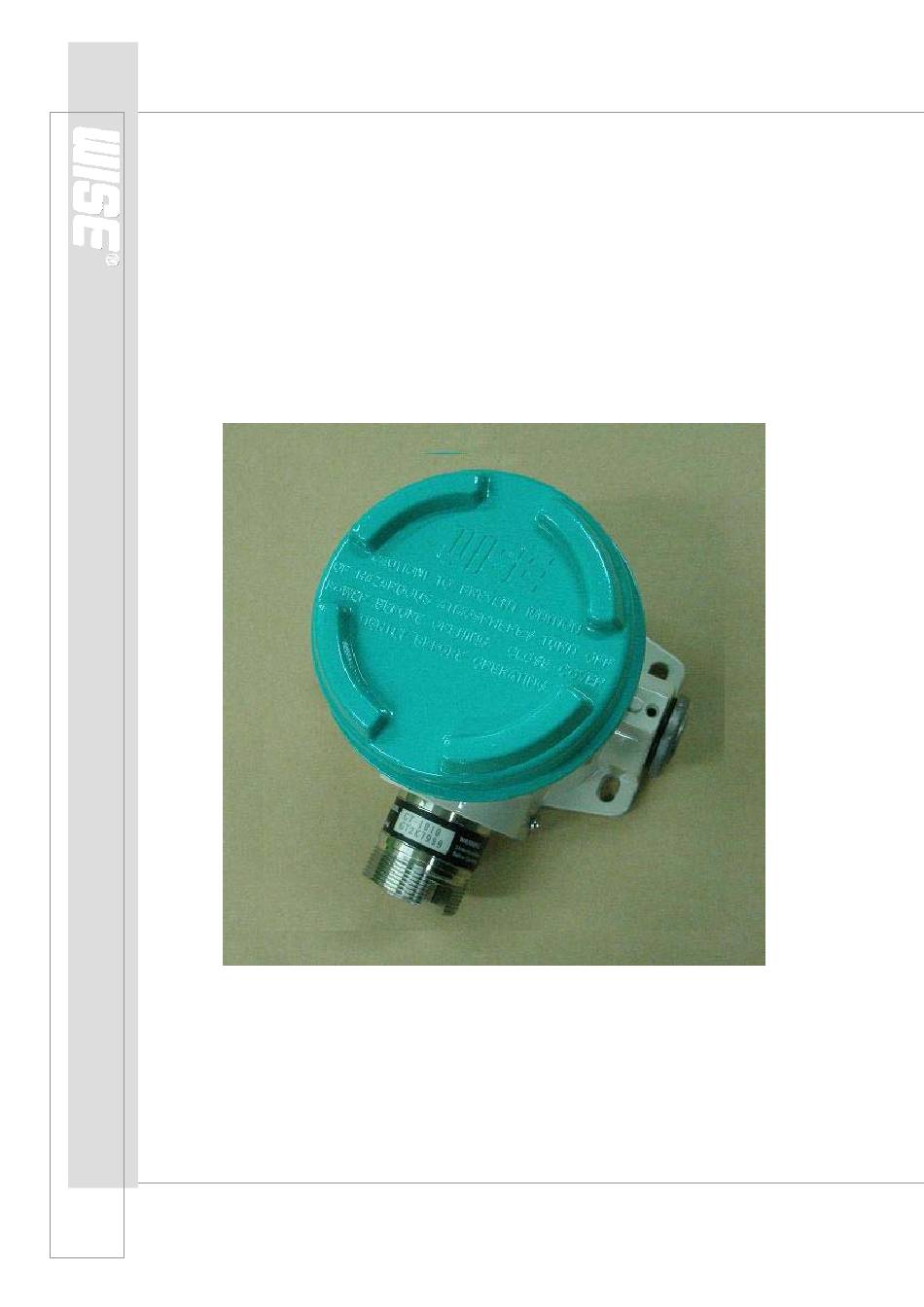

- Page 1 Transmitter And Detector for Combustible / Toxic Gases GT/X-1010 VER 3.3 '07. 02 Instruction Manual WISE CONTROL, GED http://www.wisegas.com...
-
Page 2: Table Of Contents
Contents 1. Important Remarks………………………………………………………………………..3 2. Introduction…………………………………………………………………………………...4 3. Characteristics………………………………………………………………………………..5 4. Specifications………………………….………………………...……………………………6 5. Installation……………………………….……………………………………………………7 5.1 Notice…………………………..………………………………………………………..7 5.2 Installation method……….……………………………………………………………7 6. Wiring…………………………………….……………………………………………………9 6.1 Detector wiring for GT-1010………………………………………………………….9 6.2 Detector wiring for GX-1010…………………..…………………………………….11 6.3 Earth…………………………………….……………………………………………...13 7. Operation……………………….…………………………………………………………...14 7.1 Operation mode……………..………………..……………………………………14 7.2 Calibration for GT-1010…….…..………………..…………………………………15 7.3 Calibration for GX-1010 or GX-1010D………..……………………………………16 8. -
Page 3: Important Remarks
/or not conforming to standards and regulations in force. ▷WISE CONTROL does not allow or authorize any company, person or legal entity to assume such responsibility on the part of WISE CONTROL, even if involved in the sale of the product of WISE CONTROL. -
Page 4: Introduction
2. Introduction GTX-1010 series is a digital combustible or toxic gas leak transmitter with microprocessor application circuit. So you can match this detector with one indicator. It consists of the sensor, terminal and explosion proof housing, which is designed for hydrogen circumstance. -
Page 5: Characteristics
3. Characteristics ■ Suitable for use in a wide variety of gas detection applications. ■ Explosion Proof Housing (Ex d IIC T6) ■ Remote-Installation up to 15 meters (GTX-1010D)■ Easy calibration ■ Adjust Internal Settings without Power Off ■ Two conduit port are offered with ¾” NPT, PT or PF■ Compact and Easy to Mount ■... -
Page 6: Specifications
4. Specifications Detectors GT-1010 GX-1010 GT(X)-1010D Measuring Gas Flammable Gas Toxic Gas Flammable / Toxic Gas Measuring Range 0 ~ 100% LEL Depending on the 0 ~ 100% LEL / GasElectrochemical Depending Detection Principle Catalytic combustion Integrated GasCatalytic Sensor type Integrated Diffusion or Suction Electrochemical... -
Page 7: Installation
5. Installation 5.1 Notice You cannot use at a place like below. 1) The place where the voltage of instrument power is very fluctuate, 2) The place where dusts or corrosion gases are remained 3) The place where the ambient temperature is above 60℃ or below -20℃ 4) The place where dust or poisoning gas (VCM, Cl ) are existed 5) The place where the mechanical vibration or the shock are existed... - Page 8 7￠ HOLE (그림 5.1. Wall mounting whether proof cover) U-Bolt & Nut 2” Pipe 2B Stanchion (Fig 5.2. Pipe Mounting Whether Proof Cover)
-
Page 9: Wiring
6. Wiring 6.1 Detector wiring for GT-1010 6.1.1. Power After certify the power for using is the same as the power that designate in wiring diagram, you may wire. In order to protect a surge, you may separate an instrument power and a power line (operation power of heater, magnet S/W) In order to protect a voltage drop by a wire resistance, you may use a wire has a large section area of wire. - Page 10 6.1.4 Single Case Wiring TERMINATION for GM-1000 6.1.5 Milti-Unit Case Wiring TERMINATION for MC-2100 series...
-
Page 11: Detector Wiring For Gx-1010
6.2 Detector wiring for GX-1010 6.2.1. Power After certify the power for using is the same as the power that designate in wiring diagram, you may wire. In order to protect a surge, you may separate an instrument power and a power line (operation power of heater, magnet S/W) In order to protect a voltage drop by a wire resistance, you may use a wire has a large section area of ①... - Page 12 6.2.3 Single Case Wiring Termination for GM-1000 6.2.4 Multi-unit case Wiring Termination for MC-2100 Series Notice) When you wiring, you may off the power of instrument. If you put on/off the cable when the power is loaded, then the electronic circuit can be destroyed. When you install this detector into hazardous location, you may use the explosion proof cable gland.
-
Page 13: Earth
6.3 Earth You connect terminal at low of case. You take care of the electric shock by an incomplete earth, the effect of ambient noise and unnecessary emission noise. -
Page 14: Operation
7. Operation 7.1 Operation mode 7.1.1 Sensor stabilization time (Warm-up) You have to wait for sensor stabilization time because this unit does not act immediately. A sensor needs stabilization time for 30 sec. The transmission output is 3 mA for sensor stabilization time. 7.1.2 Normal action 1) Sensor stabilization time is end, then instrument act for operation mode. -
Page 15: Calibration For Gt-1010
7.2 Calibration for GT-1010 7.2.1 Power confirmation 1) Power check between +24V and GND terminal (+DC24V) 2) Regular power is DC18V ~ 30V. 7.2.2 Sensor heating current setting 1) Set the DC multimeter to voltage 2) Connect multimeter (+) rod to CP1 check pin, and connect multimeter (-) rod to CP2 check pin 3) Set the check value is fitted to 295 mV by controlling “HEAT”... -
Page 16: Calibration For Gx-1010 Or Gx-1010D
7.3 Calibration for GX-1010 7.3.1 Power confirmation 1) Power check between +24V and GND terminal (+DC24V) 2) Regular power is DC 15V ~ 30V. 7.2.3 ZERO setting 1) Set the DC multimeter to voltage 2) Connect multimeter (+) rod to CP4 check pin, and connect multimeter (-) rod to CP5 check pin 3) At the clean air environment, set the check value is fitted to 40 mV by controlling “ZERO”... -
Page 17: Others
- Alarm state and indication confirm by standard gas injection to detector * Other gases without mentioned are available, please contact WISE CONTROL. ** In order to improve the product, the above statements can be modified without a previous notice. -
Page 18: Measuring Gases
Catalytic 0-100 %LEL +/- 1.5% * Other gases without mentioned are available, please contact WISE CONTROL. ** In order to improve the product, the above statements can be modified without a previous notice. FEBRUARY. 2007 VERSION 3.3 WISE CONTROL Inc.
