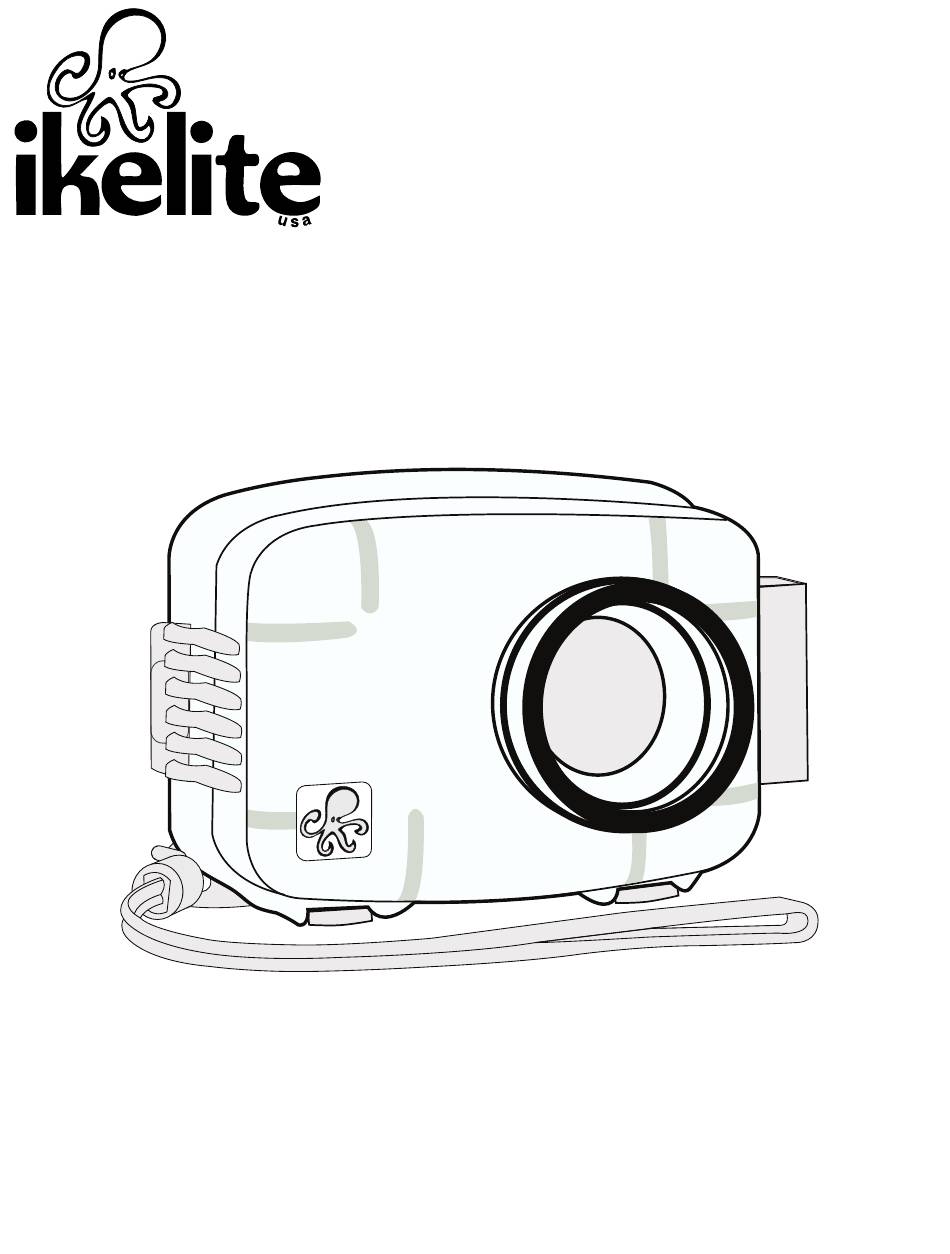

D ig i tal H ou s i n g

Supple m e ntal Ins tr u cti on s

6214.05 Sony DSC-WX50

Size and Weight

Width ......................5.8 in. (147mm) including controls

Height ....................4.4 in. (112mm) including controls

Depth ......................3.7 in. (94mm) including controls & lens port

Weight ....................1.1 lb (499g)

Buoyancy ................Slightly positive in freshwater

Page 1 D ig i tal H ou s i n g Supple m e ntal Ins tr u cti on s 6214.05 Sony DSC-WX50 Size and Weight Width ......5.8 in. (147mm) including controls Height ....4.4 in. (112mm) including controls Depth ......3.7 in. (94mm) including controls & lens port Weight ....1.1 lb (499g)
Page 2 Parts of the Housing ON/OFF Button Front View Latch Lens Port Tray Mounts Back View Zoom Lever Shutter Button Lanyard IKELITE ULTRA compact Made in USA 7. MENU Button Movie Button DISP Flash Delete Self-timer Playback Shooting Settings Note: No control is provided for the Mode Switch or Control Wheel. Use...
Page 3 - Attach 46mm threaded #6420.46 Ikelite W-20 Wide-Angle Lens or other compatible lenses directly to the front of the port. - Attach 67mm threaded #6420 Ikelite W-20, Inon Type II and Epoque wide-angle lenses using the #9306.81 port adapter. This adapter may also be used to attach other compatible 67mm threaded macro lenses.
Page 4 Handle with rubber grip - Tray (single or dual) Mounting hardware. A full range of accessories is available to support your housing. Please visit http://www.ikelite.com to see the most current information about recommended accessories for your housing. Ikelite Technical Support Email: ikelite@ikelite.com...
