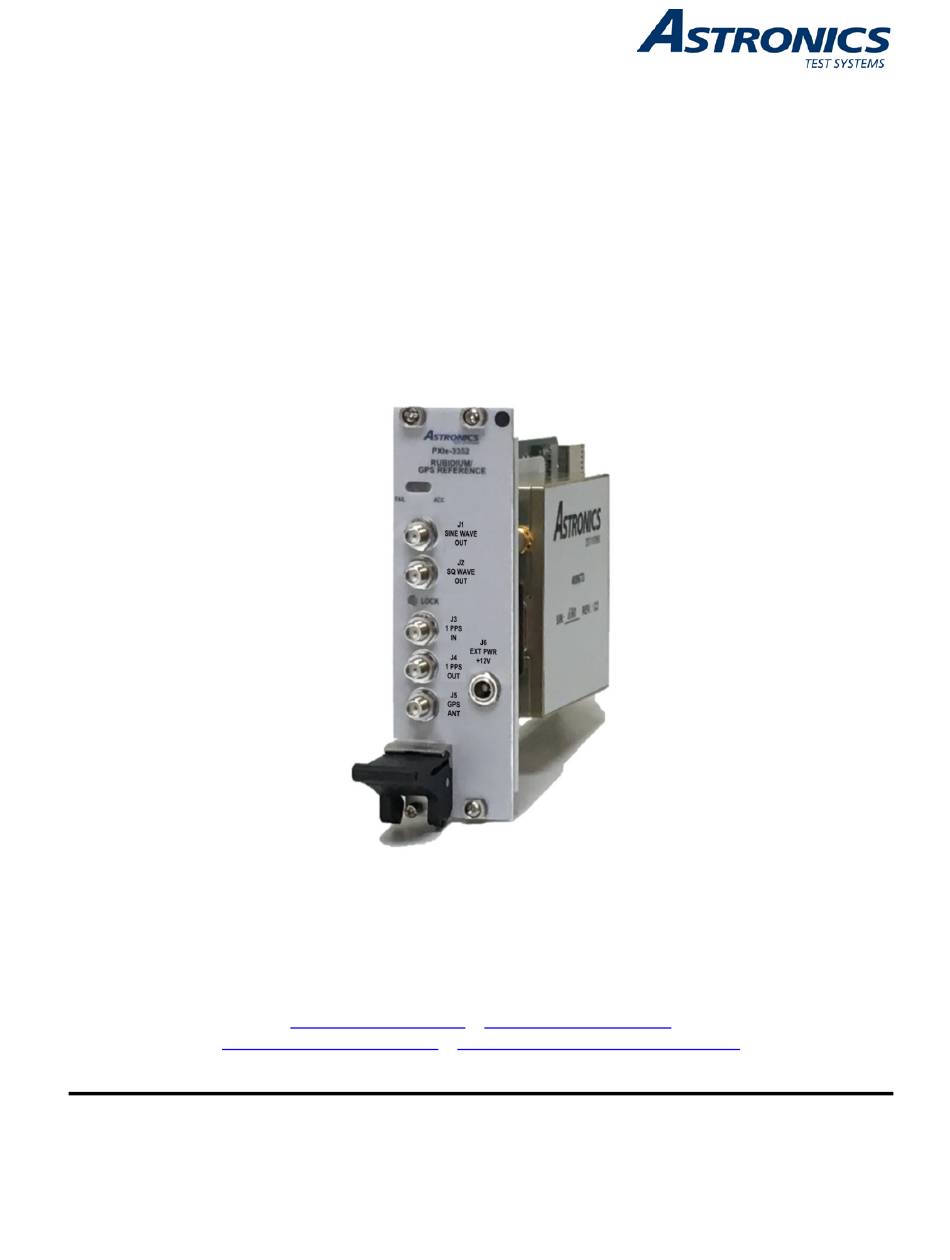

PXIe-3352
Rubidium/GPS Frequency Standard
User Manual
Publication No. 981049 Rev. B
Astronics Test Systems Inc.
4 Goodyear, Irvine, CA 92618
Tel: (800) 722-2528, (949) 859-8999; Fax: (949) 859-7139
atsinfo@astronics.com
atssales@astronics.com
atshelpdesk@astronics.com
http://www.astronicstestsystems.com
Copyright 2017 by Astronics Test Systems Inc. Printed in the United States of America. All rights reserved.
This book or parts thereof may not be reproduced in any form without written permission of the publisher.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PXIe-3352 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Astronics PXIe-3352

  • Page 1 Tel: (800) 722-2528, (949) 859-8999; Fax: (949) 859-7139 atsinfo@astronics.com atssales@astronics.com atshelpdesk@astronics.com http://www.astronicstestsystems.com Copyright 2017 by Astronics Test Systems Inc. Printed in the United States of America. All rights reserved. This book or parts thereof may not be reproduced in any form without written permission of the publisher.
  • Page 2 This warranty does not apply to defects resulting from any modification(s) of any product or part without Astronics Test Systems express written consent, or misuse of any product or part. The warranty also does not apply to fuses, software, non-rechargeable batteries, damage from battery leakage, or problems arising from normal wear, such as mechanical relay life, or failure to follow instructions.
  • Page 3 This document and the technical data herein disclosed, are proprietary to Astronics Test Systems, and shall not, without express written permission of Astronics Test Systems, be used in whole or in part to solicit quotations from a competitive source or used for manufacture by anyone other than Astronics Test Systems.
  • Page 4 FOR YOUR SAFETY Before undertaking any troubleshooting, maintenance or exploratory procedure, read carefully the WARNINGS and CAUTION notices. This equipment contains voltage hazardous to human life and safety, and is capable of inflicting personal injury. If this instrument is to be powered from the AC line (mains) through an autotransformer, ensure the common connector is connected to the neutral (earth pole) of the power supply.

  • Page 5: Table Of Contents

    Publication No. 981049 Rev. B PXIe-3352 User Manual Table of Contents Chapter 1 ......................... 1-1 Overview and Features ....................1-1 Functional Description ........................1-2 Rubidium Block .......................... 1-3 RS232 Interface ........................1-4 GPS Block ..........................1-4 PXIe and Digital Interface ...................... 1-4 External DC Power Supported .......................
  • Page 6 PXIe-3352 User Manual Publication No. 981049 Rev. B Using the LabVIEW Driver ......................4-4 Astronics Test Systems...
  • Page 7 PXIe-3352 User Manual List of Figures Figure 1-1, PXIe-3352 ........................1-1 Figure 1-2, PXIe-3352 System Configuration Example ..............1-2 Figure 1-3, PXIe-3352 Functional Systems ..................1-2 Figure 1-4, Rubidium Oscillator Block Diagram ................1-3 Figure 3-1, Front Panel, LOCK LED ....................3-3...
  • Page 8 PXIe-3352 User Manual Publication No. 981049 Rev. B DOCUMENT CHANGE HISTORY Revision Date Description of Change 4/20/2017 Initial Astronics Test Systems release ECN08282. Revised to correct Ext PWR 5/16/2017 connector size. Added theory of operation/functional description to Chapter 1. Astronics Test Systems...

  • Page 9: Chapter 1

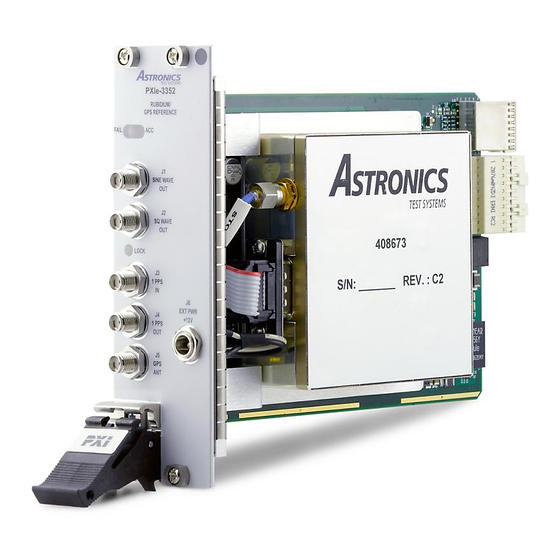

    PXIe-3352 User Manual Chapter 1 Overview and Features The PXIe-3352 (Figure 1-1) is a Rubidium/GPS module for use in PXI hybrid and PXI Express slots in a PXI mainframe. It provides a basic accuracy of 5e in free- run mode, but, given an external GPS antenna (not included) and a view of the sky, can be disciplined to GPS satellites for improved timing accuracy.

  • Page 10: Functional Description

    GPS module when needed. All controls are via the PXIe bus in a PXIe compatible mainframe. Figure 1-2, PXIe-3352 System Configuration Example The PXIe-3352 card comprises three functional systems as follows: • The Rubidium Block •...

  • Page 11: Rubidium Block

    PXIe-3352 User Manual Rubidium Block The major component of the PXIe-3352 is the Rubidium block. The Rubidium block is a multifunctional Rubidium Frequency Standard. It is one of the smallest atomic clock standards currently available, where the accuracy and stability are derived from a quantum energy transition that occurs in a free Rubidium atom.

  • Page 12: Rs232 Interface

    The PXIe interface allows the FPGA to communicate data and commands between the PXIe chassis and the PXIe-3352. The FPGA then translates the data and commands via 9600 baud rate TTL serial to the GPS IC and via 9600 baud rate RS-232 to the Rubidium block.

  • Page 13: External Dc Power Supported

    Publication No. 981049 Rev. B PXIe-3352 User Manual External DC Power Supported If the PXI mainframe is powered down, power may still be applied to the Rubidium oscillator via a front panel external DC power input. This keeps the Rubidium oscillator very stable over time and eliminates the effects of retrace.
  • Page 14 PXIe-3352 User Manual Publication No. 981049 Rev. B This page was left intentionally blank. Overview and Features 1-6 Astronics Test Systems...

  • Page 15: Chapter 2

    Publication No. 981049 Rev. B PXIe-3352 User Manual Chapter 2 Specifications Output Characteristics Output Frequency • 10 MHz Output Channels • Sinewave Output Channel • Squarewave (CMOS) Output Channel Amplitude Sine Wave: 10 dBm ± 2 dBm into 50 Ω...

  • Page 16: Interface

    PXIe-3352 User Manual Publication No. 981049 Rev. B Warm Up (@ 25° C) • <4 minutes to lock • <5 minutes to reach 5 x 10 Receiver Architecture • Tracking: 22 parallel channels • Acquisition: 66 simultaneous satellites Operating Frequency •...

  • Page 17: Software

    Publication No. 981049 Rev. B PXIe-3352 User Manual • Amber: Access • Yellow: Rubidium locked Software Driver Installations • LabWindows/CVI, 32-bit and 64-bit • LabVIEW, 32-bit and 64-bit Executable • Interactive Control Soft Front Panel Environmental Temperature/Altitude • Operating: 0° C to 55° C/10,000 ft •...
  • Page 18 PXIe-3352 User Manual Publication No. 981049 Rev. B This page was left intentionally blank. Specifications 2-4 Astronics Test Systems...

  • Page 19: Chapter 3

    Express slot as shown in the diagram below. Do not attempt to install a PXIe- 3352 into a standard PXI-1 slot. Slots in a PXI chassis that are legal for the PXIe-3352 are identified by a slot number inscribed within a filled circle. There can be the letter “H” for Hybrid to the upper right of the circle as well.

  • Page 20: Initial Power On

    PXIe-3352 is properly installed in the chassis, and turn the chassis power back 5. Turn on or re-start the computer connected to the chassis. 6. If this is the first time the PXIe-3352 is turned on, wait 5 minutes or until the yellow Lock LED is turned on.

  • Page 21: Software Installation

    1 PPS Figure 3-1, Front Panel, LOCK LED Software Installation Prior to hardware installation of the PXIe-3352, install the following four software drivers: 1. VISA software, available from your PXI slot 0 device vendor 2. Windows PXI Device Driver (from LabVIEW driver installer) 3.

  • Page 22: Installing The Labview Instrument Driver

    LabVIEW 2011 version and let LabVIEW re-compile the driver when it is first used. 6. The driver installer creates a directory “Astronics ri3352e” within the “instr.lib” subdirectory of the version of LabVIEW you are using. Installing the LabWindows/CVI instrument driver 1.
  • Page 23 Publication No. 981049 Rev. B PXIe-3352 User Manual to work properly. b. Select the “InstallerWithoutRTE” folder if you already have a version of the LabWindows/CVI run-time engine installed on your computer. 4. Double-click on the file “setup.exe”. 5. Follow the command prompts, and select the destination folder for installation.
  • Page 24 PXIe-3352 User Manual Publication No. 981049 Rev. B This page was left intentionally blank. Getting Started 3-6 Astronics Test Systems...

  • Page 25: Chapter 4

    Chapter 4 Software Operation Using the Soft Front Panel The soft front panel allows the operator interactive control over the PXIe-3352 to allow instrument operation. All major functions are provided. Starting the Soft Front Panel The Soft Front Panel application is installed when you install the LabWindows / CVI driver.
  • Page 26 PXIe-3352 User Manual Publication No. 981049 Rev. B If the Rubidium has warmed up, the front panel may look like as follows. It may take up to 32 seconds to get the GPS to lock from the cold start. GPS module is selected by dragging the Discipline Mode switch to its “ENABLE”...

  • Page 27: Using The Labwindows / Cvi Driver

    Publication No. 981049 Rev. B PXIe-3352 User Manual Using the LabWindows / CVI Driver The LabWindows / CVI driver provides a ‘C’ language programming interface. This driver also includes a 32-bit and 64-bit DLL that can be used within various programming environments such as Microsoft Visual Studio C++ and C#.
  • Page 28 “ri3352e Initialize.vi”. You can select this from within a LabVIEW diagram by right-mouse clicking and selecting Instrument I/O -> Instr Drivers -> Astronics ri3352e ->ri3352e Initialize.vi Once in the diagram, the VI must be supplied with the instrument descriptor for the 3352e.
  • Page 29 Publication No. 981049 Rev. B PXIe-3352 User Manual A rudimentary VI block diagram with just the ri3352e Intiialize.vi is shown below. This VI shows that the instrument descriptor has been selected and wired into the The next step is to add the various driver VIs that provide the information you need in your application.
  • Page 30 The LabVIEW driver contains an executable example VI. You can locate this in one of two ways: Select the menu item “Instrument I/O -> Instr Drivers -> Astronics ri3352e -> Examples -> ri3352e Example”. Then open the front panel on the VI.
  • Page 31 Find Examples…”. This will launch the NI Example Finder. From there, you can look under the “instruments” folder and select the “ri3352e Example.vi” You may find full help information on the driver by selecting the “Help -> Astronics ri3352e -> ri3352e LabVIEW Help” menu item from any VI’s front panel.
  • Page 32 PXIe-3352 User Manual Publication No. 981049 Rev. B This page was left intentionally blank. Software Operation 4-8 Astronics Test Systems...
