WyreStorm Essentials 1080p Plug-and-Play Video Conference
Kit with PTZ Camera, Speaker and Microphone
EXP-VC-KIT
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features before beginning the
installation process.
IMPORTANT! Installation Requirements
• Read through the
Wiring and Connections
guidelines before creating or choosing premade cables.
• Visit the product page to download the latest firmware, document
version, additional documentation, and configuration tools.
Communication Settings
The EXP-VC-KIT Camera contains a web UI that can be accessed by
connecting to a network and entering the IP address. We recommend that
the IP address is changed from default after accessing the web UI for the
first time.
The camera also supports the standardized VISCA control protocol for
issuing commands via a 3rd-party control system. See the full EXP-VC-
KIT API document for additional control details.

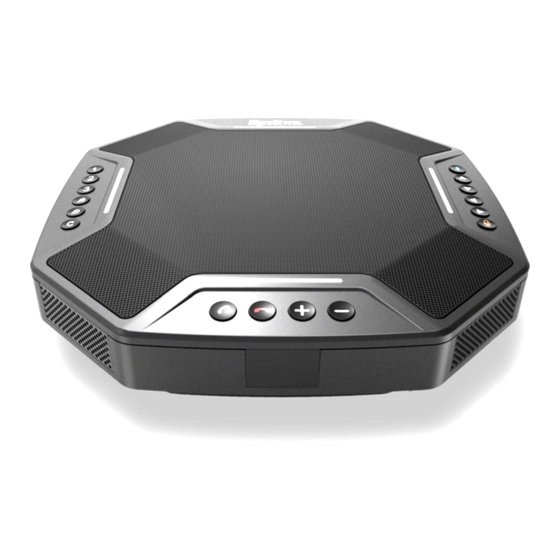

The speakerphone contains 3 custom preset buttons that are used to
program PTZ settings to quickly recall. To save a custom preset simply
adjust the camera manually to the desired position and hold any of the 3
preset buttons for a minimum of 5 seconds.
Basic Wiring Diagram
Copyright © 2020 WyreStorm Technologies | wyrestorm.com
EXP-VC-KIT Quickstart Guide | 200605
section for important wiring
In the Box
1x EXP-VC-KIT-C 1080p Camera
1x EXP-VC-KIT-H Hub
1x EXP-VC-KIT-A Speakerphone
2x 10m 6-Pin DIN Data Cables
1x 12v DC 1.5A Power Supply
1x IR Remote
1x 3m USB 2.0 Cable
1x Quickstart Guide (This Document)
IP Settings
Default IP Address
192.168.11.143
Web UI Port
80
VISCA Port
1259
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
1 of 4
Quickstart Guide
support@wyrestorm.com
Advertisement
Table of Contents
Related Manuals for Wyrestorm EXP-VC-KIT
Summary of Contents for Wyrestorm EXP-VC-KIT
- Page 1 WyreStorm Essentials 1080p Plug-and-Play Video Conference Kit with PTZ Camera, Speaker and Microphone EXP-VC-KIT Quickstart Guide WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features before beginning the installation process. In the Box IMPORTANT! Installation Requirements 1x EXP-VC-KIT-C 1080p Camera •...
- Page 2 Bluetooth connection from a mobile device. Conference software is not compatible with these buttons due to varying commands between platform. Copyright © 2020 WyreStorm Technologies | wyrestorm.com UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973) 2 of 4 EXP-VC-KIT Quickstart Guide | 200605 support@wyrestorm.com...
- Page 3 WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a period of two (2) years from the date of purchase. Refer to the Product Warranty page on wyrestorm.com for more details on our limited product warranty.
