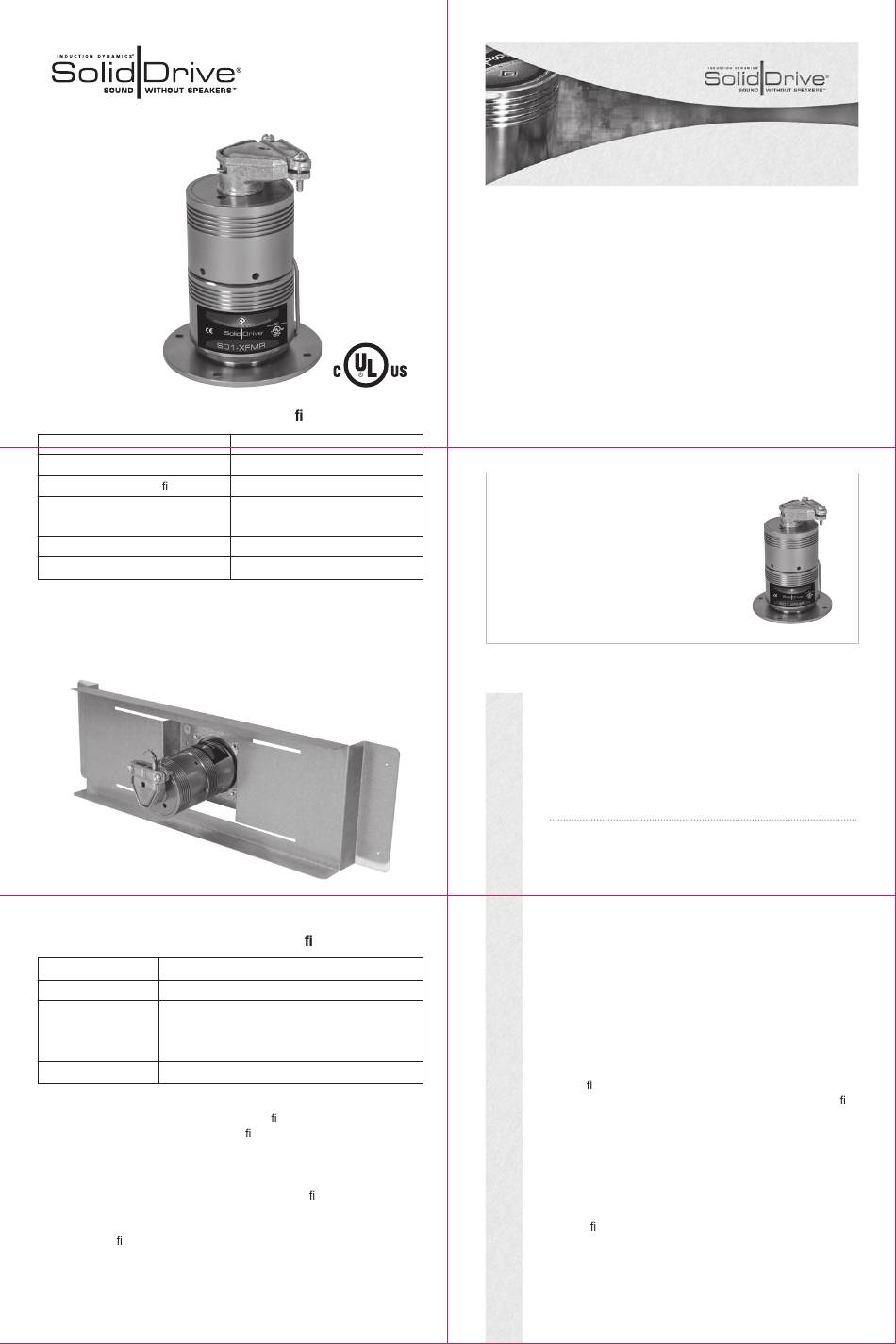

SOLIDDRIVE SD1-XFMR-Ti Installation & Use Manual

SolidDrive SD1-XFMR-Ti Speci cations
Type
Frequency Response(Hz)
Recommended Ampli er Power
Dimensions
Weight
UL Listing
NOTE: When installed in Canada, this product must be installed in accordance
with the Canadian Electrical Code, C22.1, Part1.
SolidDrive SD1 In-Wall and
In-Ceiling Mounting Bracket Speci cations
Type Patented balanced cantilever spring bracket
Construction Heavy duty, galvanized steel
Dimensions
12OC – 2.0'' H x 17.5'' W x 5.0'' D
16OC – 2.0'' H x 25.5'' W x 5.0'' D
24OC – 2.0'' H x 13.5'' W x 5.0'' D
Weight 1.0 lb / .45 kg
WARRANTY
SolidDrives, SolidDrive subwoofers, and A4 ampli ers are guaranteed for 7 years
from date of purchase. Any misuses or modi cations to this equipment in any way
will void the warranty.
WARNING
Read instructions prior to operating. To reduce the risk of re or electric shock, do
not expose this product to rain or moisture. Unplug prior to cleaning and clean with
a damp cloth. There are no user-serviceable parts in this product, please refer all
servicing to quali ed personnel.
REV-09-10-19
www.soliddrive.com | 913.663.5600 | 10661 Rene St. | Lenexa, KS 66215
Full Range Transducer
70 Hz to 15 kHz
10 Watts
2.28'' Diameter x 4.8'' Height
Mounting Plate 3.5'' Diameter
1.5 lb / .68 kg
1480 & 2043 Pending
INSTALLATION & USE GUIDE
for SolidDrive SD1-XFMR-Ti
Experience Audio Perfection
Induction Dynamics extensive line of audio
products makes it easy to create the ultimate
audio system, regardless of installation require-
ments. Induction Dynamics builds these products
with only the most select components and materi-
als; and utilizes numerous unique and proven
technologies.
INSTALLATION OF SOLIDDRIVE SD1 INTO WALLS
AND CEILINGS
By utilizing these basic installation steps, you can install the
SolidDrive SD1-XFMR-Ti into walls and ceilings to create sound for
boardrooms, home theater, and distributed audio.
GETTING STARTED WITH SOLIDDRIVE
What's included with the SolidDrive SD1-XFMR-Ti for installation
into walls and ceilings and what is supplied by the installer —
A SolidDrive SD1-XFMR-Ti consists of: One (1) SolidDrive
SD1-XFMR-Ti unit with included 10W transformer, suppplied with 5
hard wire leads and one duplex conduit connector. *Additional
mounting materials may need to be ordered with the SolidDrive
SD1-XFMR-Ti or supplied by the installer depending on the applica-
tion.
For drywall: For in-wall and in-ceiling installation, you will have
ordered one (1) or more SolidDrive SD1-XFMR-Ti's and one (1) or
more patented acoustic in-wall mounting brackets (one (1) bracket
per SD1-XFMR-Ti), which comes with four (4) #8-32 x 5/16''
Phillips at head machine screws for mounting the drive to the
bracket. At the time of the order, you will also have speci ed
mounting bracket(s) in widths of 12OC, 16OC, or 24OC (ON CENTER
of wall studs or ceiling joists) for proper width. *Installation also
requires four (4) 1 3/8'' drywall screws and one (1) container of
3M® Super 77 Spray Adhesive (supplied by the installer).
EXISTING DRYWALL INSTALLATION NOTE:
For retro tting the SolidDrive SD1-XFMR-Ti into existing drywall
installations, it will be necessary to remove a portion of the existing
drywall before installation and to replace the drywall after the
SolidDrive SD1-XFMR-Ti is installed. Please refer to the instructions
marked with EXISTING DRYWALL for the steps necessary for the
type of installation. If installing the SolidDrive SD1-XFMR-Ti in new
construction, IGNORE the EXISTING DRYWALL steps.
SolidDrive
into walls and ceilings
