alpro EL900 Instructions

alpro
®
TECHNICAL INFORMATION
Power consumption and current
draw
12v DC - 300mA
24v DC - 150mA
Wiring Monitoring
Red Blue
+
Green
12V DC
Yellow
--
Red

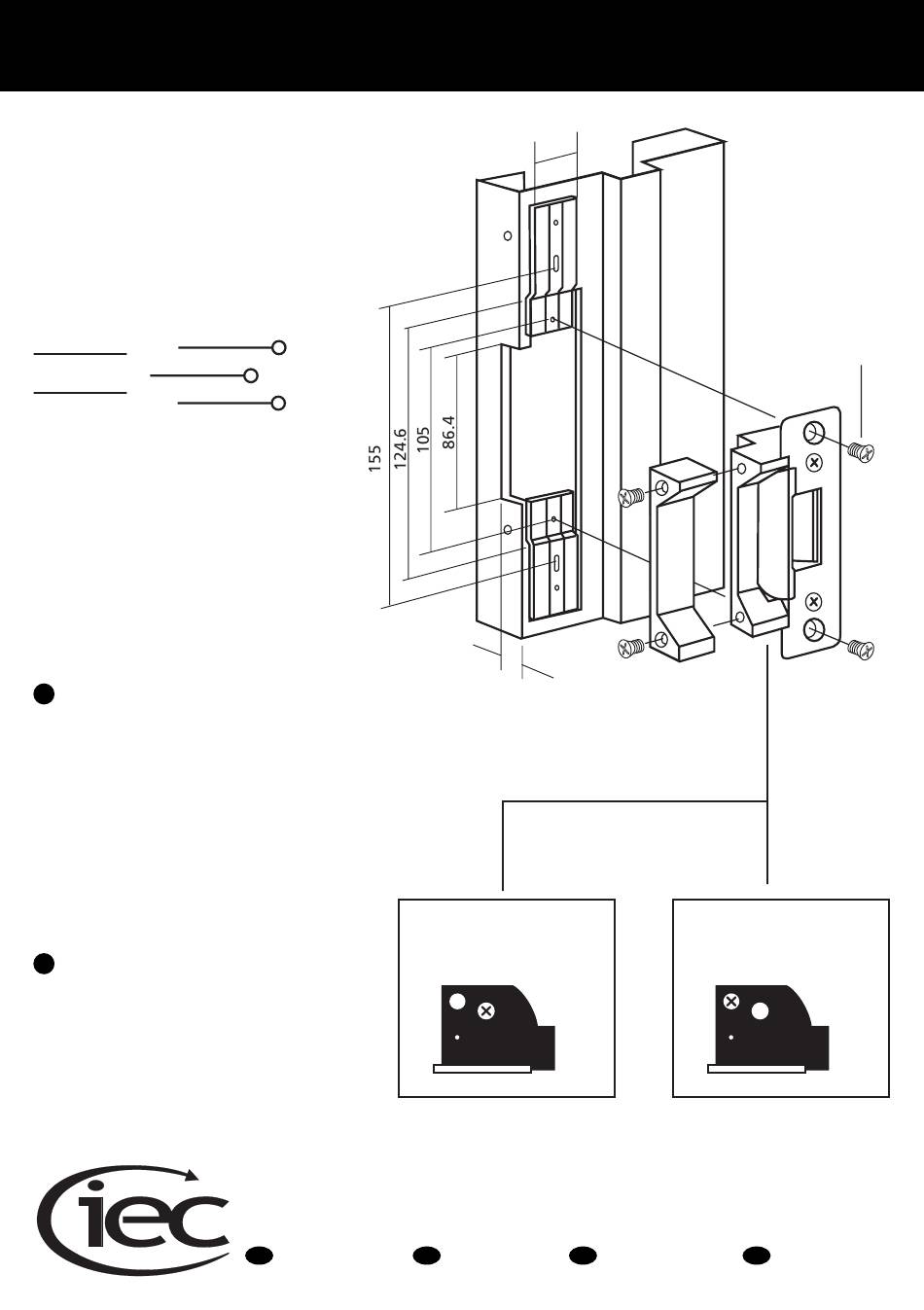

The EL900 can be used in either
fail safe (PTL) or fail secure (PTO)
mode. Simply ensure that the screw
is positioned in either hole as per
the illustration and either function
can be achieved. Retain screw for
future use (PTO).

General Installation Instructions

1 Check with a suitable meter that the
regulated power supply or controller
being used to operate the strike can
provide the required voltage within a
+/- 10% tolerance, and that the
voltage can be maintained during
operation under all circumstances.
Warning: Connection of an
incorrect voltage may result in
damage not covered by the
product warranty.
2
Mortice the door frame using the
actual body of the strike as the
template. Ensure that if the
mortice lock being used has a
deadlocking snib or trigger, the
location of the strike must not allow
the snib to enter the 'keep' area.

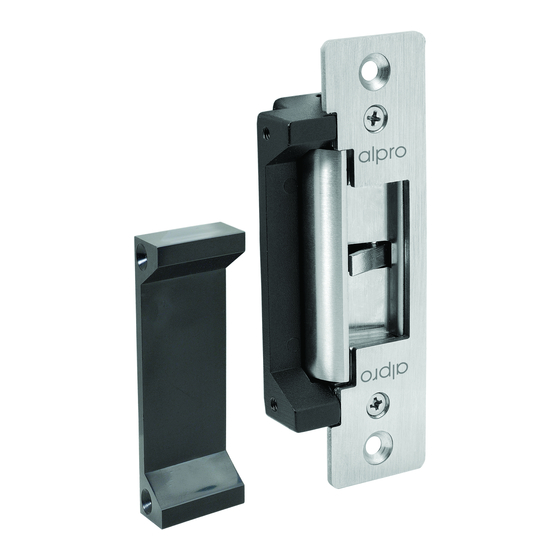

ANSI Electric Strike
NC
C
NO
Fail Secure - (PTO)
Screw Fitted
First Choice for Locking Solutions
T 01202 676262
EL900 - Instructions
25
17.2
F 01202 680101 E
Fail Safe - (PTL)
Screw Fitted in park
hole
info@iecltd.co.uk W www.iecltd.co.uk
M5
x 2 Screws
