Summary of Contents for HDTV Supply HD-EDID-4K
- Page 1 USER MANUAL MNI HMI EDID learner/simulator HD-EDID-4K Version: V2.0.1...
- Page 2 1. Product Introduction It ’ s an HDMI EDID simulator/learner, it can study the display model and save it. It solves the no image, wrong resolution and so on issues which caused by the wrong EDID. 2. Features Contain 15 preset EDID data for commonly used resolutions and refresh rates ➢...
- Page 3 Channel EDID Name PC Reference BD Reference The same as external learned EDID 480p 720x480 / 60Hz 480p / 60Hz 720p 1280x720 / 50Hz 720p / 50Hz 1080i 1920x540 / 60Hz 1080i / 60Hz 1024x768_60 1024x768 / 60Hz 720p / 60Hz 720p / 60Hz 1280x1024_60 1280x1024 / 60Hz...

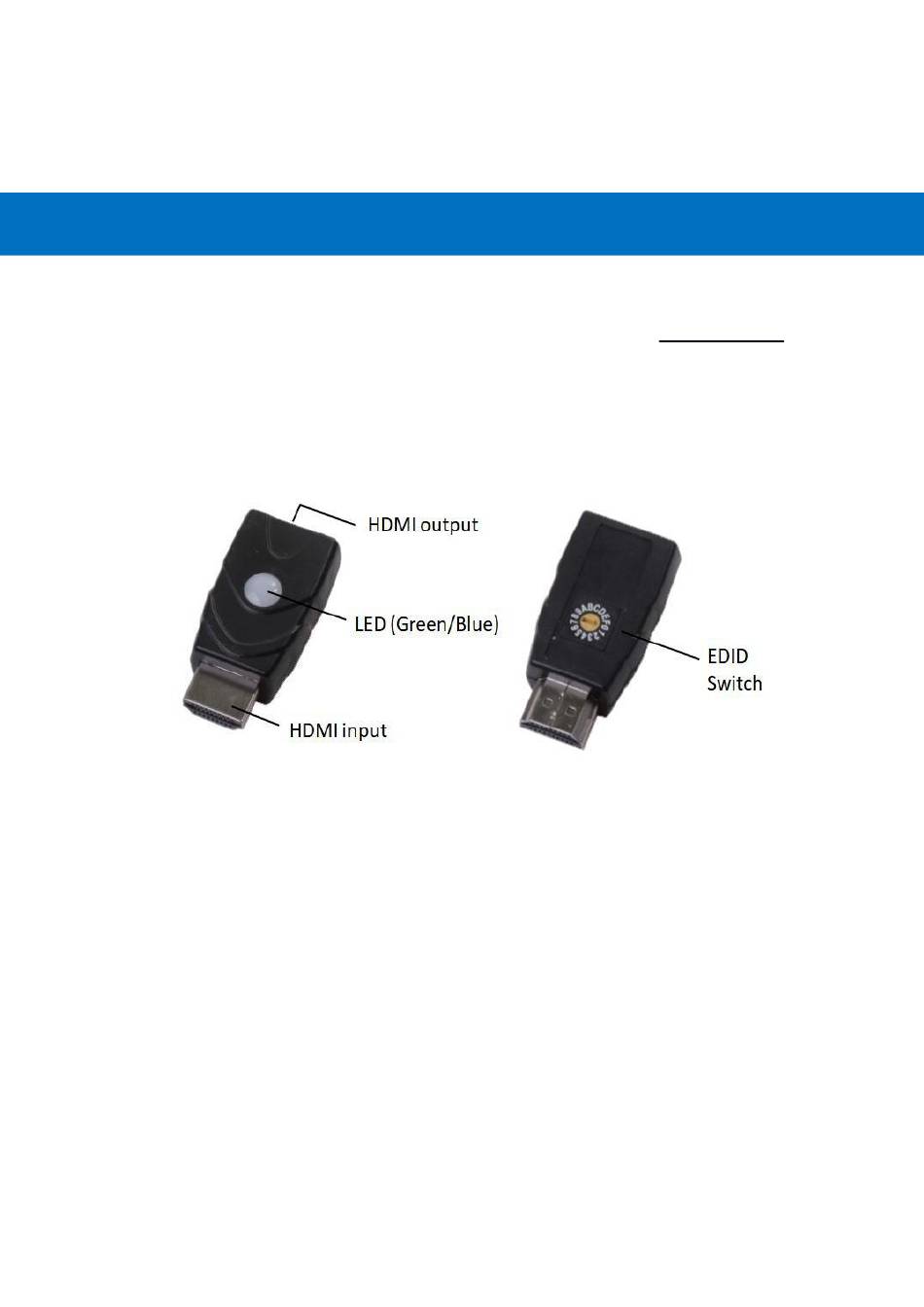

- Page 4 Output HDMI Female LED Indicator Green / Blue Light Power Supply HDMI Internal Power Dimension (WxHxD) 41 x 23 x 12mm Weight 20 g Operation Temp. -10℃ to 50℃ Storage Temp. -25℃ to 55℃...
