AVOCET 1-YEAR LIMITED WARRANTY
This Avocet Cyclometer is warranted against defects in material ind workmanship for one year after date of purchase,
or two years after the manufacture date stamped on the PC board under the battery (YM), whichever comes first.
Defective products will be repaired or replaced. The warranty will not cover the battery, normal wear, damage, or loss
and is void if the Cyclometer is disassembled by anyone other than an authorized Avocet Service Center.
PROCESSING INFORMATION
Customer service and product information are available at www.avocet.com/service.html or by calling 650-470-0478.
Warranty claims are to be sent to the Service Center by the owner, not by the retail store where the Cyclometer was
purchased. Include a description of the problem. Only the original, dated cash register or charge card receipt will be
accepted for proof of purchase date (no exceptions).
Send your Cyclometer freight prepaid to the Service Center at the address listed below. A traceable method of shipment
is recommended in the event that your shipment to Avocet is lost in transit.
Avocet Service Center
170A University Ave
Palo Alto, CA 94301
Customer service and product information are available at www.avocet.com or by calling 650-470-0478 ext 218

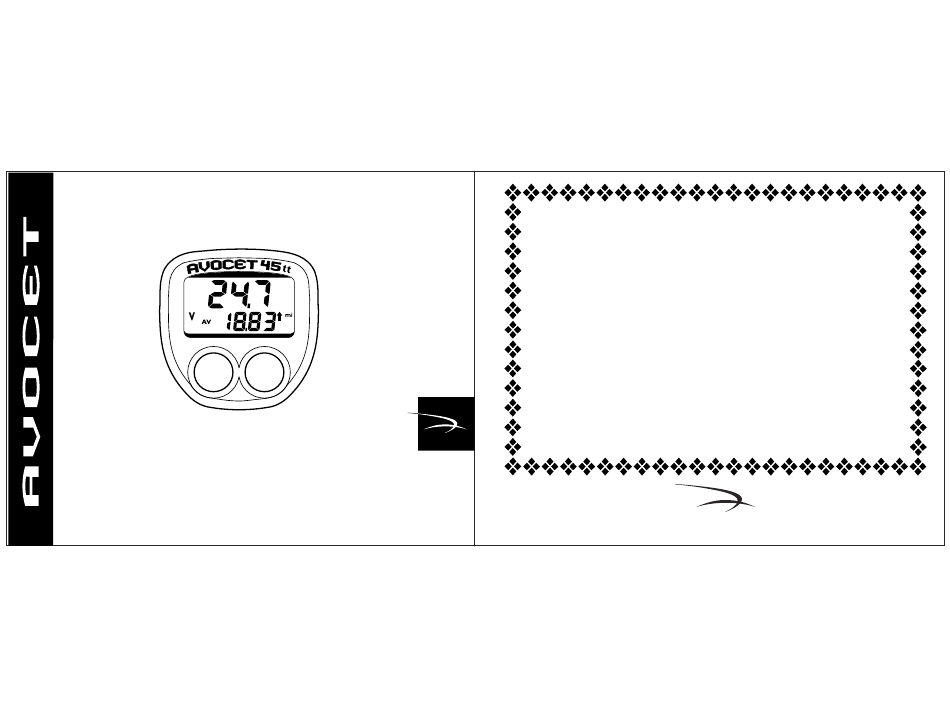

CYCLOMETER 45tt
AVOCET, INC, P.O. Box 180, Palo Alto, CA 94302, USA
0402
Advertisement
Table of Contents
Related Manuals for Avocet 45tt
Summary of Contents for Avocet 45tt
- Page 1 AVOCET 1-YEAR LIMITED WARRANTY This Avocet Cyclometer is warranted against defects in material ind workmanship for one year after date of purchase, or two years after the manufacture date stamped on the PC board under the battery (YM), whichever comes first.
- Page 2 FUNCTIONS PART I–OVERVIEW OPTIONAL OPTIONAL SPEED SPEED SPEED GEAR INCH Maximum Speed Cadence Average Speed Cadence Cadence and Gear-Inch functions are optional and require the cadence mount kit PRESSING LEFT BUTTON PRESSING RIGHT BUTTON Selects speed and distance functions Moves between speed, distance and time Starts and stops timer and changes setup Moves from one setup function to the next data...
- Page 3 INDIVIDUAL RESET. Press both buttons to reset the displayed function. PART II–FUNCTIONS SPEED (V). Current speed is displayed to 400.0 mph or km/h in 0.1 increments. Low speeds are displayed down to 1 mph. The Cyclometer uses speed data to calculate distance, and in mountain biking, good low-speed sensitivity ensures that distance will not be lost during low speed climbing or while walking unridable trails.
- Page 4 If you measure your performance by average speed riders tend to let cadence fall when they are inattentive. Checking ca- on a course you regularly ride, the Cyclometer 45tt will show your progress dence will prompt you to keep your pedaling steady.
- Page 5 Trip/Total Distance function to reach Destination Distance. Destination display freezes when it reaches 1,999.9 miles. Reset individually by pressing distances of up to 199.99 miles can be entered into the Cyclometer 45tt both buttons when trip distance is displayed. and will begin to count down when the function is turned on by pressing Most riders measure trip distance for an entire ride and zero the display the left button.
- Page 6 TIMER. The Timer displays times to 9:59:59 then rolls over to 0 and PART III–SETUP continues timing. Press the left button to start and stop the Timer. Reset by pressing both buttons or by global reset. Reset also stops the Timer. MILES OR KILOMETERS.
- Page 7 Calibration by the table will give acceptable precision for the table numbers are only approximate. To account for your unique combination of weight, tire speed, but if you want to take advantage of your Cyclometer 45tt's ability pressure, and tire model, measure your tire circumference.
- Page 8 CADENCE SELECT. CLOCK SETUP. All Cyclometer 45tt's are capable of display- The display shows ‘12 hr’ indicating that the clock Step 3 Step 5 ing cadence. However, you must have a cadence mount if you want to use will display in 12 hour format. Press the left button to change to 24 hour the cadence function.
- Page 9 Total Distance: To 19,999 mi in 1 mi increments. Display freezes at models 15 and 25 19,999 mi Battery: 1.5 volt, 2 year life. Use Avocet Cyclometer 45 battery or Riding Distance: To 999.99 mi in 0.01 mi increments and from 1,000.0 357 (Renata, Eveready, RayOVac, Phillips). SR44W (Maxell, to 1,999.9 in 0.1 increments (distance used to compute average...
- Page 10 3. CADENCE MAGNET AND PICKUP. 3. RECEIVER AND CADENCE WIRES. Attach the cadence magnet with a cable tie Attach the receiver wire to the inside of the on the inside of the left crank arm about 3 inches from the pedal. Align the crank with the left chainstay with ties gathering any excess under one of the ties.
- Page 11 2a. MOUNTAIN RECEIVER. Fits any fork. If you have a suspension fork or a mountain PART V–INSTALLATION–FRONT MOUNT bike fork with fat blades that taper for the slotted ends, use the mountain receiver. Clean and dry the front of the right fork blade. Slide the receiver into its holder (wires on the inside). Loosen the 1.
- Page 12 Thread a to the head tube. Wrap excess wire around the or removed. If the handlebar is too small for thumb. Use only an Avocet Cyclometer 45 bat- cable tie through the hole in the receiver holder front brake cable.
