FRIEDL VM 60 Installation Manual

for cutted and uncutted FO cable and FO pipes
Plug type 1:
longitudinal slot
core
first ring
second ring
third ring
fourth ring
setback surface

Special instructions to make this closure watertight:

1.) When tearing off the rings from this Plug, it is important, that they are removed
complete and without flashes left behind.
2.) Remove just as many rings as needed so that the Plug fits very tight around the cable.
3.) Lubricate all parts as required. Lubricate well. Rather lubricate too much than too less.
4.) Try to not lubricate the threat of the Folding Screw and the thread of the closure body.
5.) Always when fastening plastic, it might yield a bit over time. Therefor it is required that
1 hour (more time is even better) after the installation, the steps 27 and 30 are repeated.

Installation Instructions:

1.) Installation should be performed only by personnel experienced with FO cable closures.
2.) It is recommended to start by placing all parts within the top half-shell of the closure body.
3.) Clean the cable coats.
4.) Lubricate the cable coat at the position where the Plug will come to be.
5.) Lubricate the inner surface of the Plug.
 LWL Connect Closure VM 60/95, Installations Instruction .
Installation Manual
LWL Connect closure VM 60/95

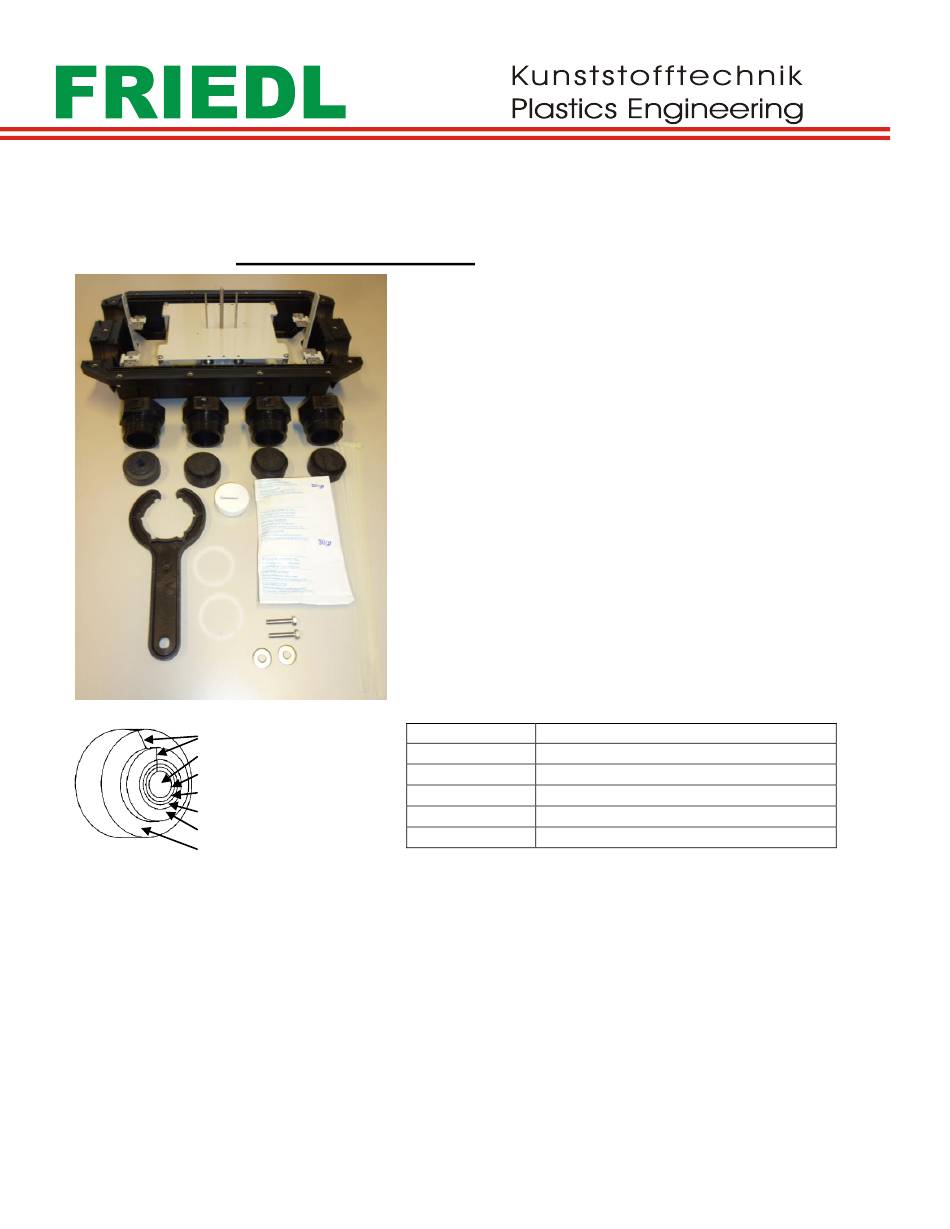

Parts list:

1
1
4
4
4
2
2
8
1
1
1
14
14
1
1
This installation requires additionally
a standard 8 mm wrench for the M5 screws.
Prerequisite: General experience with
FO cable closure installation required!
"Cable" means both: FO cable and FO pipes.
Cable diameter Work step
5.5 -
7.5 -
9.3 – 11.5 mm tear out all of the above and the second ring
11.6 – 14.1 mm tear out all of the above and the third ring
14.2 – 17.5 mm tear out all of the above and the fourth ring
Manufacturer: FRIEDL GmbH Hagenbrunn / Austria
closure body, bottom half-shell with
the cable tray and the strain relief
already installed
closure body, top half-shell
Plug
Folding Screw
slotted white plastic washer
long circumferential seal
short circumferential seal
cable tie 4 x 100 mm, 4 x 200 mm
container with lubricant
cleaning tissue
dry
screw M5 x 25mm stainless steel/Niro
M5 washer stainless steel/Niro
wrench
installation manual
7.4 mm tear out the core
9.2 mm tear out all of the above and the first ring
V.04 v.25.3.2019
