Summary of Contents for BlueSpot 07910

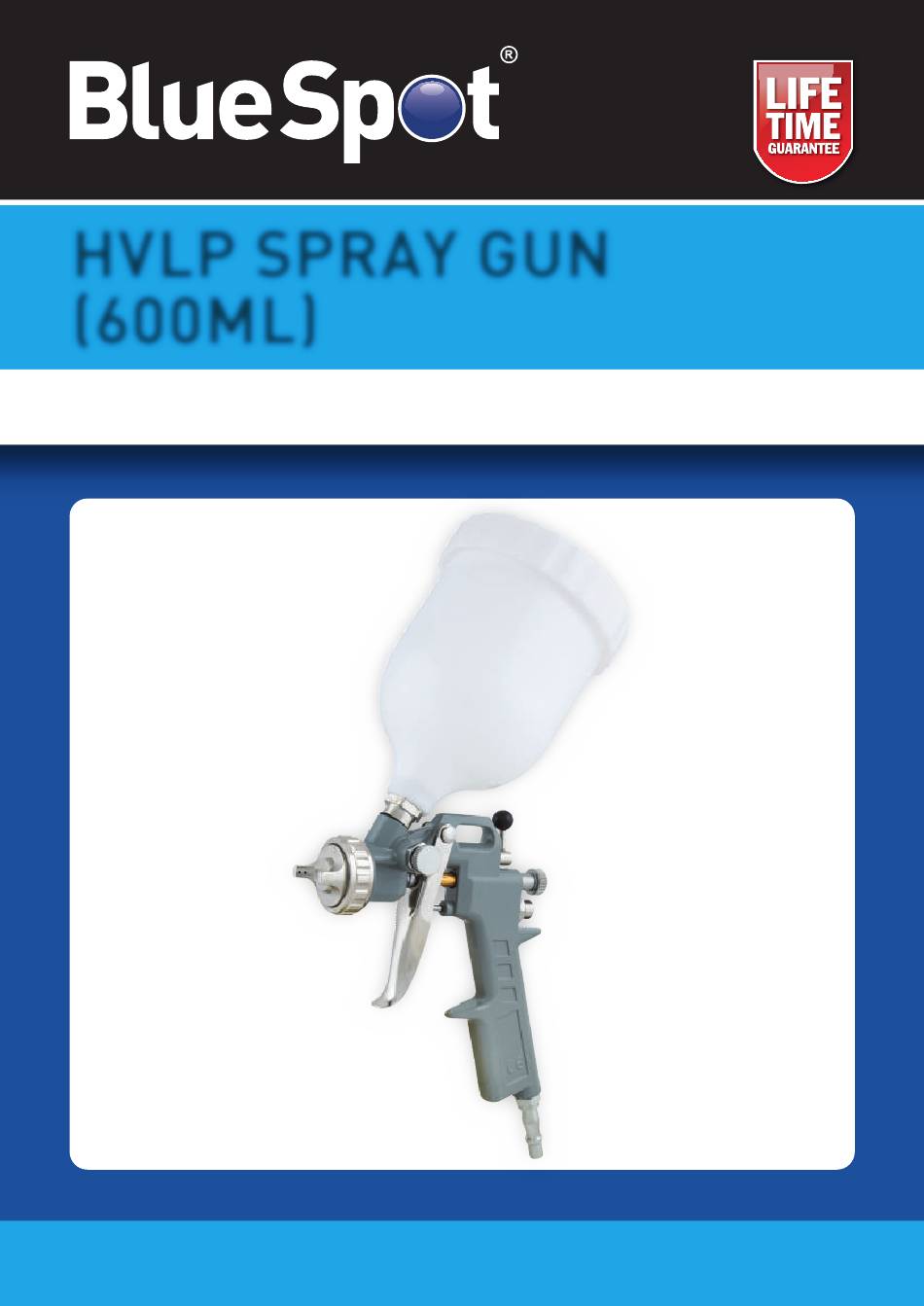

  • Page 1 HVLP SPRAY GUN (600ML) User Manual 07910...
  • Page 2: General Information

    General Information Thank you for purchasing a BlueSpot product, you can find further information on our range at www.BlueSpot.uk.com. Please ensure that you are using the product correctly and that all guidance and cautions are followed in accordance with the instructions. Please retain these instructions for future reference.
  • Page 3: Specification

    Introduction The BlueSpot HVLP Spray Gun is ideal for painting substrates with minimal wastage. The supplied nozzle (1.5mm) and operating pressure of 50psi (3.5bar) cover a pattern width of 110-250mm with reduced overspray. The cup capacity of 600ml is ideal for larger projects.
  • Page 4: Parts Diagram

    Parts Diagram Air Nozzle Retaining Ring Trigger Adjustment Knob Adjustment Screw Adjustment Valve Air Inlet Before use Before using the spray gun check for damage. If the spray gun is damaged do not use as this will affect the performance and could cause damage to property or injury. Check for the following – •...
  • Page 5: Fan Direction

    Work Area Set Up 1. Keep the work area clean and uncluttered and ensure that there is adequate lighting. 2. Ensure there are no children or pets within the work area that could cause distraction or injury. 3. Make sure the air hose route can reach the work area without creating a tripping hazard.
  • Page 6: Spraying Technique

    Spraying Technique 1. Hold the spray gun perpendicular to the surface being sprayed and move it parallel to it. 2. Use two hands, one to steady the cup and the other to operate the spray gun. 3. Aim the nozzle at the piece of material that you would like to spray. DO NOT stop when spraying.
  • Page 7 Cleaning ALWAYS make sure that the spray gun is cleaned immediately after every use. Delayed or inadequate cleaning of the spray gun will cause blockages and affect the performance of the product in the future. ALWAYS disconnect the spray gun from the air supply before attempting to clean or perform maintenance.
  • Page 8 Distance to Spot Size Maintence Disposal Contact 1. Always take care when re-assembling the spray gun. Avoid cross-threading by screwing the parts hand tight. If a part cannot easily be turned by hand, check that you have the correct part, or unscrew, realign and try again. DO NOT use excessive force when re-assembling.
  • Page 9 General Troubleshooting Distance to Spot Size Distance to Spot Size Disposal Disposal Contact Contact Problem Possible Causes Solution Spluttering spray Paint level low Refill with paint Tipped cup Hold the spray gun upright Air vent clogged on cup Clear air vent hole Loose/damaged fluid tip Adjust or replace fluid tip and fluid needle...
  • Page 10 fluids (if applicable) into approved containers and dispose of the product and fluids according to local regulations. Contact Find out more about the BlueSpot® Lifetime Guarantee at www.BlueSpot.uk.com Tel: 0800 093 0115 Email: sales@bluespot.uk.com Orme Business Centre,...
