GEVI PORTABLE BLENDER

MODEL： GEBLA089-N

Table of Contents

Need help?

Do you have a question about the GEBLA089-N and is the answer not in the manual?

Questions and answers

Summary of Contents for Gevi GEBLA089-N

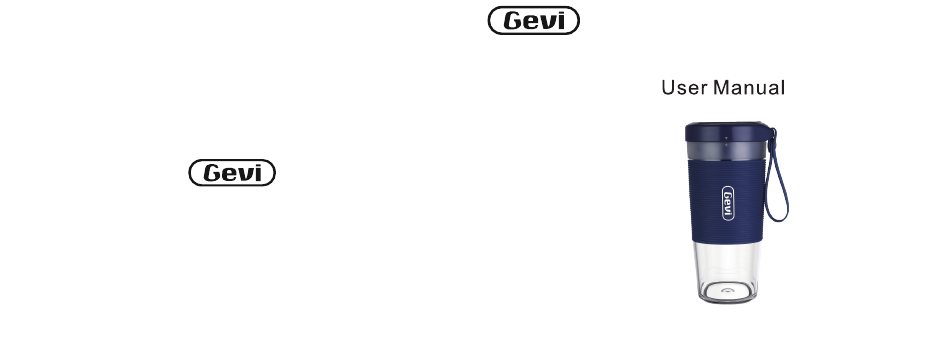

Page 1 GEVI PORTABLE BLENDER MODEL： GEBLA089-N...
Page 2 BEFORE USING Prior to using this appliance, please read the user manual thoroughly, even in cases, when one has already familiarised themselves with previous use of similar types of appliances. Only use the appliance in the manner described in this user's manual. Keep this user manual in a safe place where it can be easily retrieved for future reference.
Page 3 TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS DESCRIPTION OF THE PORTABLE BLENDER BEFORE FIRST USE USING THE PORTABLE BLENDER CLEANING AND MAINTENANCE RECIPES TECHNICAL SPECIFICATIONS DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT GUARANTEE POLICY...
Page 4 IMPORTANT SAFETY INSTRUCTIONS When using the electrical appliance, the below basic safety precautions should be followed: 1.Please read the instructions carefully before using this product. 2.When the product is working, it is strictly forbidden to open the blender and touch movable parts such as blades and motors, so as to avoid injury or damage to the product.
Page 5 8.Do not place the product in high temperature, strong magnetic field, flammable and explosive gas (such as natural gas, methane, etc.) environment to avoid causing accidents such as abnormal operation or fire. 9.Do not put any parts of this product in a dishwasher, microwave oven, disinfection cabinet or hot water over 60 , or use other equipment to heat ℃...
Page 6 14.In the absence of supervision, the cleaning and maintenance work should not be done by the children. 15.Close supervision is necessary when the appliance is used by or near children. 16.Avoid touching moving parts. 17.Warn of potential injury from misuse. 18.Stirring ingredients such as bananas that are prone to foam may cause the product to blockage.
Page 7 24.Please keep this manual for future reference. NOTES ON THE CORD PLUG The product has built-in lithium batteries. Pay attention to the following items: 1.Store and use this product in an environment of 0-40℃. 2.If not used for a long time, please charge every three months to prevent battery damage. 3.Charging speed may be slower in the environment below 10℃...
Page 8 DESCRIPTION OF THE PORTABLE BLENDER Portable Design Super lightweight design with a portable size of 300ml, this cordless portable blender is as compact as a normal water bottle. You can put it in your bag, backpack or take it in your hand at any time, which is very perfect for office, home, travel and sport with on-the-go portability.
Page 9 Double Safety Protection with Separation Automatic Shut-off This portable blender has a separation auto shut-off function(cup lid magnetic induction). If the main unit is placed separately or the juice cup is not rotated and installed, the product does not work. And Double-click the button switch for start can avoid touching the switch accidently. Easy to Clean and Safe to Use This portable blender design with IP68 Waterproof which makes it easier to clean, you are able to wash the juice cup and the blade on the main machine with water directly.
Page 10 PRODUCT INTRODUCTION CHARGING MODE: A)When the adapter is connected, the LED indicator light is red. B)When full of electricity, the LED indicator light is white. For the first time, please make sure to charge the blender for more than two hours to extend the battery life.
Page 11 WORKING MODE: There is only one switch unit. The specific functions are as follows: A)Double-click the button switch, the white light of the LED indicator lights up, then the product runs at full speed. When the working voltage is lower than 7.2V, the indicator turns to red light and flashes three times, then the machine stops running.
Page 12 BEFORE FIRST USE This is a potable blender designed for on the go, different from the countertop blender. For the first use it is suggested operating according to the below steps: 1.Unpack the appliance and place all parts on a horizontal surface. 2.Before using this product for the first time, it is recommended that you should clean the juice cup and the blade on the main machine with water and dry these parts thoroughly.
Page 13 2.The fruits (apples, pears, etc.) shall be washed, peeled and nucleated, and cut into squares of about 1 cm * 1 cm * 1 cm. Note: 1.Please remove all hard seeds before juicing. 2.It is not recommended to process coconuts or similar hard foodstuffs, since this may damage the main engine.
Page 14 3.Put the prepared fruits into the juice cup, add water, milk or other liquids according to your preference. The total amount of food and liquid should not exceed the maximum mark (300mL) of the cup.The maximum mark is covered by the rubber pad. 4.Rotate and install the main engine on the juice cup.
Page 15 5.Turn the product upside down, then double-click the “button switch” on the product mainframe in a quick way, put it on the desktop or hold it in hand, then the product starts to work. The product sets a single cycle time of 40 seconds. In the process of work, shake the blender upside down to keep the material from stucked on the blade, so that the mixing effect is better and the taste of juice is more delicate.
Page 16 6.After mixing and making the juice, rotated out the main machine from the juice cup, and the juice in the juice cup can be directly drunk. 7.Insert the magnetic suction charging cable into the DC5V/1A standard USB plug, and attach the magnetic suction head of the charging wire to the magnetic suction joint of the main engine to charge the product.
Page 17 CLEANING AND MAINTENANCE 1.Make sure the blade has stopped running before cleaning. 2.Do not use steel ball, abrasive cleaner or corrosive liquid (such as gasoline, acetone) to clean this product. 3.The main unit can be wiped with a wrung wet cloth. Do not rinse, soak or spray the main unit in water or other liquids to avoid causing damage to the device or product leakage.
Page 18 RECIPES Strawberry Lemon Juice Strawberry ...... 90 g Lemon juice ....3 ml Pure water ....200 ml 1.Wash and stem the strawberries. 2.Put all the materials into the blender and then start the machine and mix well. -15-...
Page 19 Banana Mango Smoothie Banana ........30 g Mango ........30 g Yogurt ........90 ml Ice ........18 g Honey ........6 g 1.Peel bananas and cut into small pieces, peel and core mangoes. Then, refrigerate bananas and mangoes until firm. 2.Put all the materials into the blender and then start the machine and mix well.
Page 20 Blueberry Banana Milk Blueberries ........5 pieces Banana ........1/4 root Milk ..........100 ml 1.Wash the blueberries. Peel the bananas and cut into small pieces. 2.Put all the materials into the blender and then start the machine and mix well. -17-...
Page 21 Banana Avocado Juice Banana ........1/4 root Avocado........1/4 unit Milk ..........100 ml 1.Peel the banana and cut it into pieces. Cut the avocado in half, unscrew the core and peel the diced. 2.Put all the materials into the blender and then start the machine and mix well.
Page 22 Cantaloupe Soybean Juice Soybean ..........40 g Honeydew melon ....... 170 g Lemon juice ......... 3 ml Purified water ........100 ml 1.Peel the Honeydew melon and cut into small pieces. Clean and cook the Soybean, then cool the Soybean after cooking. 2.Put all the materials into the blender and then start the machine and mix well.
Page 23 Healthy Yogurt Milkshake Strawberry ........3 unit Banana ..........1 unit Blueberry ........10 pieces Yogurt ..........100 ml Oatmeal ..........30 g Orange ..........1/2 unit 1.Wash and stem the strawberries, then cut them in half. Peel and cut the bananas into small pieces. Clean the blueberries.
Page 24 Mashed Carrot Apple Carrot ............30 g Apple ............60 g Purified water........... 400 g 1.Peel the carrots and cut them into small pieces. Peel and core the apples and cut into small pieces. Add water to pan carrots and apples until soft and cool them after boiling.
Page 25 TROUBLE SHOTTING Please check the following content first before requesting repair: Symptom Confirmation matters Take steps ·Is it used continuously for a ·Please wait for the motor to cool down Product does not start long time? before using. ·Is the food stuck on the ·Please remove the remaining food and blade? use it again.
Page 26 ·Whether continuous use ·The high-powered motor is inside the Motor burnt smell time is longer. main unit Due to the friction of the carbon brush, an odor will occur, but it is not a product failure. ·Please feel free to use. ·...
Page 27 PRECAUTIONS WARNING: Be alert to the risks that may lead to danger, serious injury and heavy property loss. 1. Do not soak the main engine into the water. 2. Do not put overheated ingredients or liquid ( 60 ℃ ) into the juice cup to avoid bursting and splashing the juice cup.
Page 28 TECHNICAL SPECIFICATIONS Model Number: GEBLA089-N Rated Voltage: DC7.4V Rated Power Input: 50W DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT Please remember to respect the local regulations: This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste.
Page 29 Once you have any problem of this product, please feel free to contact with our consumer service Email to get support from our Service Team. Thank you again for purchasing GEVI products from Amazon. Please kindly read all the other documents in our package to get further information and your thank-you gift.
