Tyco FH-1 Quick Start Manual

Model FH-1
Flexible Hose
Available in Asia and Pacific Territories Only
General
Description

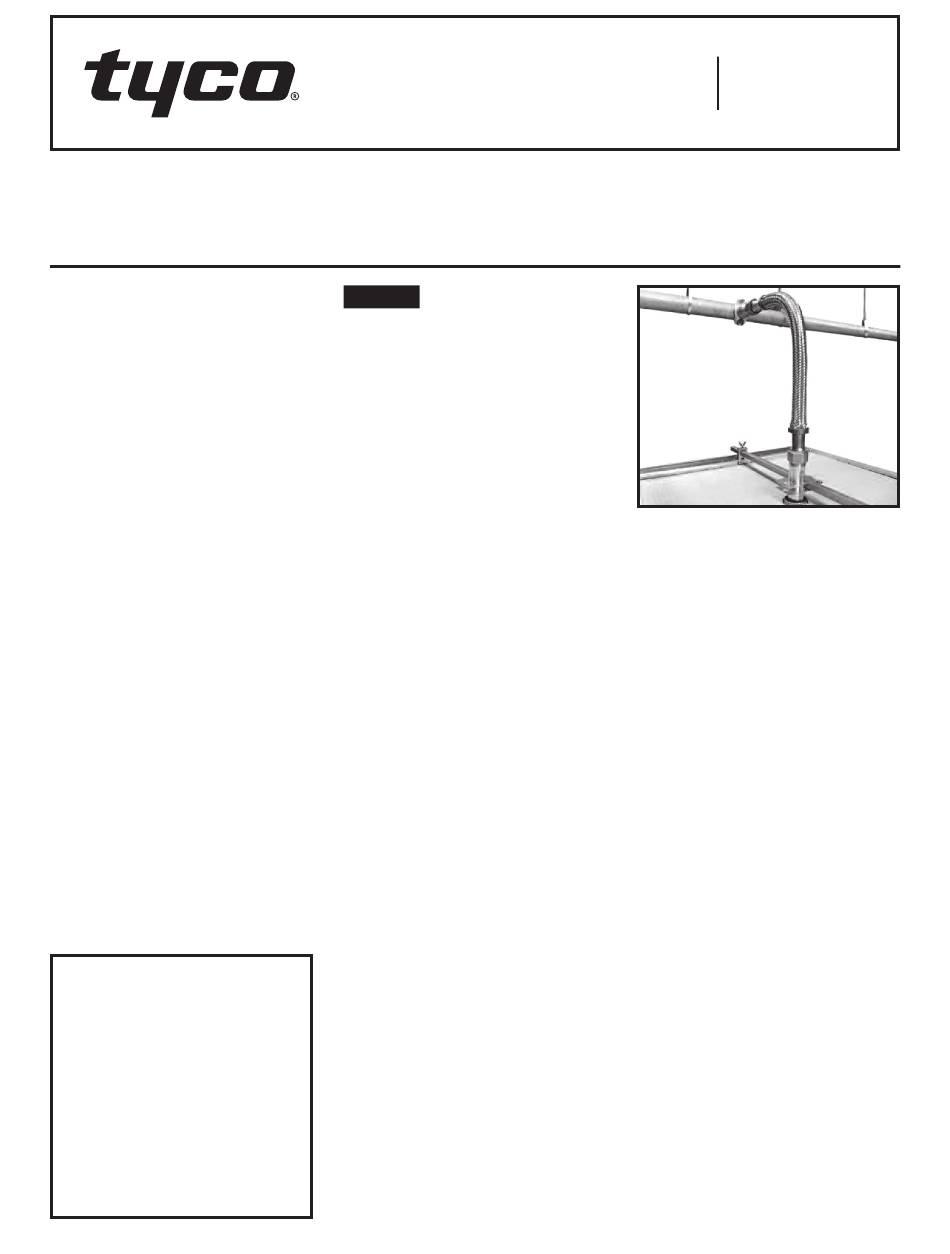

TYCO Model FH-1 Flexible Hose can be
used in wet sprinkler systems between
the branchline and sprinkler when
installed in accordance with NFPA 13,
13D, and 13R. Flexible Hose provides
a unique sprinkler drop assembly com-
prised of the following components:
• Stainless steel flexible hose with
two slip nuts
• Branchline inlet nipple
• Straight sprinkler reducer
• Reducer bracket, bar fixing clamps,
and support bar
Using Model FH-1 Flexible Hose saves
time and cost because the system can
be installed in false ceilings without
cutting and threading pipes associ-
ated with installing a drop, arm-over,
and elbows. Model FH-1 Flexible Hose
makes it possible to test and charge
the system with water before installing
the ceiling grid. After the ceiling grid
is in position, the Model FH-1 Flexible
Hose can be reshaped to suit the final
sprinkler location without draining the
system.
Model FH-1 Flexible Hose is installed
quickly without large and expensive
tools. Ideal applications include offices,
schools, libraries, hospitals, and shop-
ping complexes.
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
Installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 8
NOTICE
Model FH-1 Flexible Hose described
herein must be installed and main-
tained in compliance with this docu-
ment and with the applicable standards
recognized by the Approval agency, in
addition to the standards of any other
authorities having jurisdiction. Failure
to do so may impair the performance
of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Technical
Data

Approvals

UL Listed (See Table A)
FM Approved (See Table B)

Nominal Assembly Lengths

700 mm, 1000 mm, 1200 mm,
1500 mm, 1800 mm

Styles

Braided and Unbraided

Inlet Connection

ISO 7-R 1

Outlet Connections

1/2 in. NPT
3/4 in. NPT

Maximum Service Pressure

13,8 bar (See Table A)
12,1 bar (See Tables A and B)

Maximum Ambient Temperature

107°C

Discharge Coefficient

See Tables A and B

Minimum Installation Bend Radius

See Tables A and B
Bending Angles (Flow Direction)
Up to 180 degrees
JUNE 2019
Worldwide
www.tyco-fire.com
Contacts

Materials of Construction

The Flexible Hose is AISI (American
Iron and Steel Institute) Type 304 Stain-
less Steel. The connection at each end
of the Flexible Hose utilizes a Slip Nut,
NBR O-Ring, and Nylon 66 Washer.
The Inlet Nipple, Sprinkler Reducer, the
Reducer Bracket, Bar Fixing Clamps,
and Support Bar are Steel.
TFP725
