RELEASE DATE:
REVISION DATE:
PRODUCT NAME:
PRODUCT NUMBER:
SCOPE:

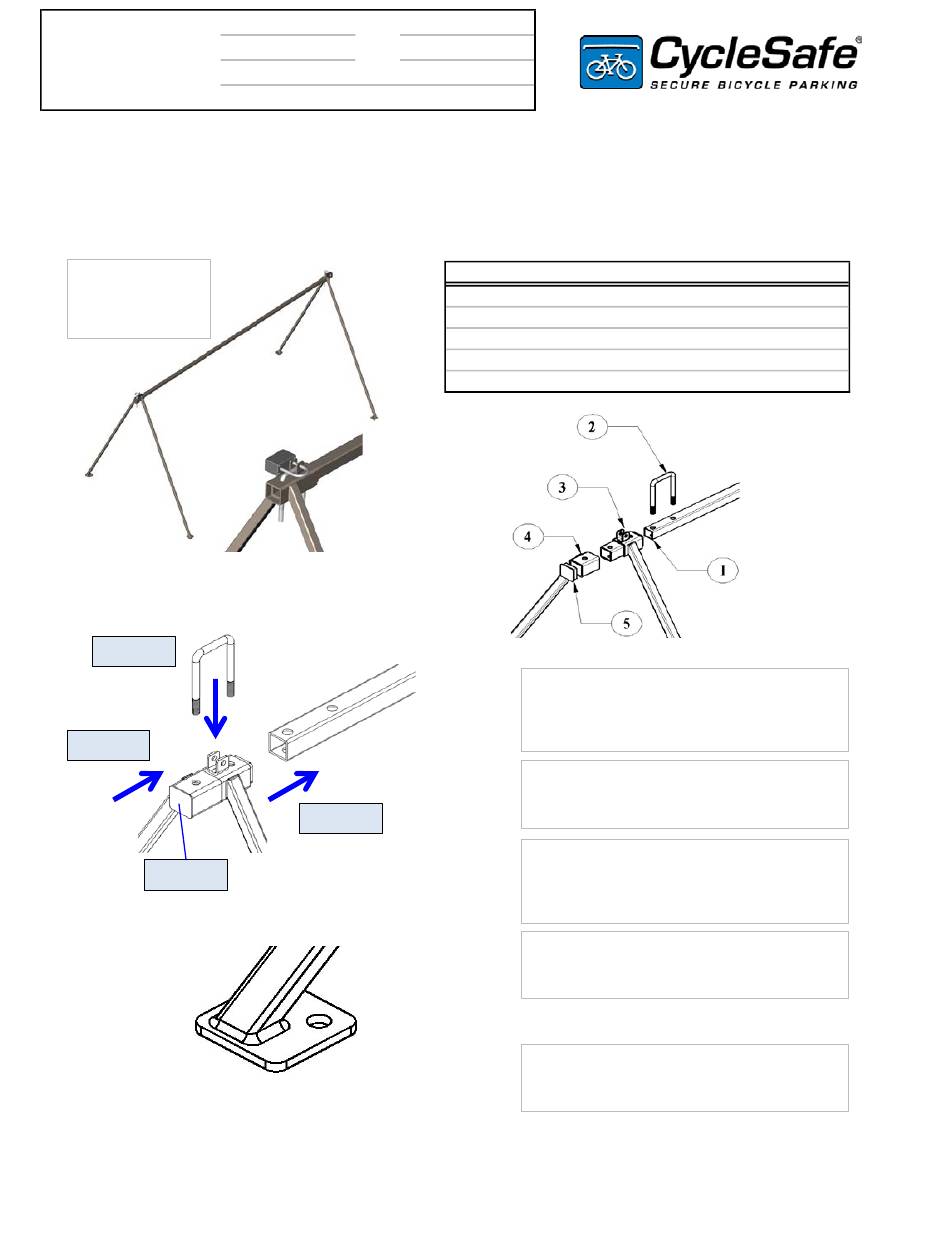

This installation instruction will describe the steps to assemble a Bike Check rack.
NO TOOLS
NEEDED!
STEP-3
STEP-2
STEP-4
ALWAYS OBSERVE POSTED SAFETY GUIDELINES WHEN ASSEMBLING THIS PRODUCT
16-Jun-10
BY:
4-Nov-14
REV
Bike Check
12490
ASSEMBLY INSTRUCTIONS
Bike Check Parking System
STEP-1
Foot Pads are provided with holes for staking
ALWAYS WEAR SAFETY GLASSES
GM
bm
Item Amt
Description
1
8
Support Bar
2
10
U-Bolt
3
10
Inner Leg
4
10
Outer Leg
5
4
End Cap (1-1/4")
1. First, slide the Inner Leg (12457) onto
the 8-ft long Support Bar (12465) and align
the holes.
2. Slide the Outer Leg (12456) onto the
Inner Leg (12457) and align the holes.
3. Insert the U-Bolt (12464) through the
aligned holes to hold the end of the
assembly together.
4. Tap the End Cap (12466) tightly into the
Outer Leg.
Apply your padlock or heavy "zip" tie
to the hasp for security.
Part No.
12465
12464
12457
12456
12466
Advertisement
Table of Contents
Summary of Contents for CycleSafe Bike Check
- Page 1 REVISION DATE: Bike Check PRODUCT NAME: 12490 PRODUCT NUMBER: ASSEMBLY INSTRUCTIONS Bike Check Parking System SCOPE: This installation instruction will describe the steps to assemble a Bike Check rack. Item Amt Description Part No. NO TOOLS Support Bar 12465 NEEDED!
- Page 2 Bicycles may be hung by the seat and locked to the optional Security Loop (12480) Hang bicycles in opposite directions for greater density parking 888.950.6531 cyclesafe.com info@cyclesafe.com WI4.9.034-D Bike Check Assembly CycleSafe® and ProPark® are Federall registered trademarks. Revised 11-2014...
