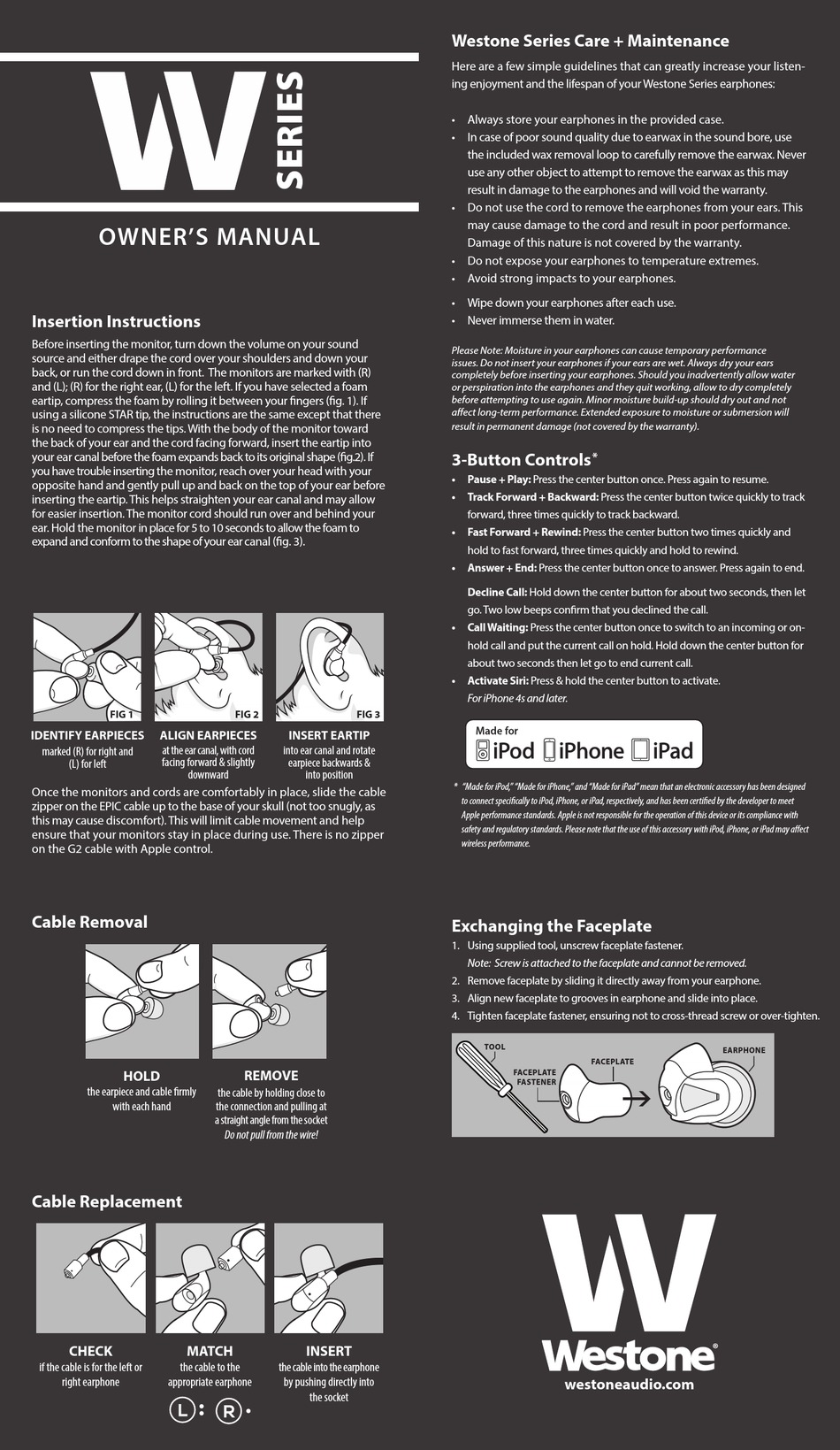

OWNER'S MANUAL

Insertion Instructions

Before inserting the monitor, turn down the volume on your sound
source and either drape the cord over your shoulders and down your
back, or run the cord down in front. The monitors are marked with (R)
and (L); (R) for the right ear, (L) for the left. If you have selected a foam
eartip, compress the foam by rolling it between your fingers (fig. 1). If
using a silicone STAR tip, the instructions are the same except that there
is no need to compress the tips. With the body of the monitor toward
the back of your ear and the cord facing forward, insert the eartip into
your ear canal before the foam expands back to its original shape (fig.2). If
you have trouble inserting the monitor, reach over your head with your
opposite hand and gently pull up and back on the top of your ear before
inserting the eartip. This helps straighten your ear canal and may allow
for easier insertion. The monitor cord should run over and behind your
ear. Hold the monitor in place for 5 to 10 seconds to allow the foam to
expand and conform to the shape of your ear canal (fig. 3).
FIG 1
IDENTIFY EARPIECES
ALIGN EARPIECES
at the ear canal, with cord
marked (R) for right and
facing forward & slightly
(L) for left
downward
Once the monitors and cords are comfortably in place, slide the cable
zipper on the EPIC cable up to the base of your skull (not too snugly, as
this may cause discomfort). This will limit cable movement and help
ensure that your monitors stay in place during use. There is no zipper
on the G2 cable with Apple control.

Cable Removal

HOLD
the earpiece and cable firmly
with each hand

Cable Replacement

CHECK
MATCH
if the cable is for the left or
the cable to the
right earphone
appropriate earphone
FIG 2
FIG 3
INSERT EARTIP
into ear canal and rotate
earpiece backwards &
into position
REMOVE
the cable by holding close to
the connection and pulling at
a straight angle from the socket
Do not pull from the wire!
INSERT
the cable into the earphone
by pushing directly into
the socket

Westone Series Care + Maintenance

Here are a few simple guidelines that can greatly increase your listen-
ing enjoyment and the lifespan of your Westone Series earphones:
• Always store your earphones in the provided case.
• In case of poor sound quality due to earwax in the sound bore, use
the included wax removal loop to carefully remove the earwax. Never
use any other object to attempt to remove the earwax as this may
result in damage to the earphones and will void the warranty.
• Do not use the cord to remove the earphones from your ears. This
may cause damage to the cord and result in poor performance.
Damage of this nature is not covered by the warranty.
• Do not expose your earphones to temperature extremes.
• Avoid strong impacts to your earphones.
• Wipe down your earphones after each use.
• Never immerse them in water.
Please Note: Moisture in your earphones can cause temporary performance
issues. Do not insert your earphones if your ears are wet. Always dry your ears
completely before inserting your earphones. Should you inadvertently allow water
or perspiration into the earphones and they quit working, allow to dry completely
before attempting to use again. Minor moisture build-up should dry out and not
affect long-term performance. Extended exposure to moisture or submersion will
result in permanent damage (not covered by the warranty).

3-Button Controls

*
• Pause + Play: Press the center button once. Press again to resume.
• Track Forward + Backward: Press the center button twice quickly to track
forward, three times quickly to track backward.
• Fast Forward + Rewind: Press the center button two times quickly and
hold to fast forward, three times quickly and hold to rewind.
• Answer + End: Press the center button once to answer. Press again to end.
Decline Call: Hold down the center button for about two seconds, then let
go. Two low beeps confirm that you declined the call.
• Call Waiting: Press the center button once to switch to an incoming or on-
hold call and put the current call on hold. Hold down the center button for
about two seconds then let go to end current call.
• Activate Siri: Press & hold the center button to activate.
For iPhone 4s and later.
* "Made for iPod," "Made for iPhone," and "Made for iPad" mean that an electronic accessory has been designed
to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet
Apple performance standards. Apple is not responsible for the operation of this device or its compliance with
safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect
wireless performance.

Exchanging the Faceplate

1. Using supplied tool, unscrew faceplate fastener.
Note: Screw is attached to the faceplate and cannot be removed.
2. Remove faceplate by sliding it directly away from your earphone.
3. Align new faceplate to grooves in earphone and slide into place.
4. Tighten faceplate fastener, ensuring not to cross-thread screw or over-tighten.
TOOL
FACEPLATE
FACEPLATE
FASTENER
westoneaudio.com
EARPHONE
g
