Summary of Contents for In Win RT04-01
- Page 1 IN WIN DEVELOPMENT PCIe Retimer HBA RT04-01 Supported Devices Part Number Description 2RAKVI003300 RT04-1 PCIe Retimer AIC Draft Version: 0.3...
- Page 2 History Version Changes Date First draft 2019/01/22 Added IN WIN Part Number Information 2019/03/25 Replace PCB layout with final version Added some more information Add the VPP usage 2019/04/15 Replace the graphics of the layout Adjust J7, J8, J9 location...
-
Page 3: Table Of Contents
Table Of Contents Overview ..........................4 Technical Specifications ..................... 5 Components ........................6 Layout ........................... 6 Connectors ........................8 Jumpers ........................9 Installation ........................10 Electrostatic Discharge Sensitive (ESDS) ..............10... -
Page 4: Overview

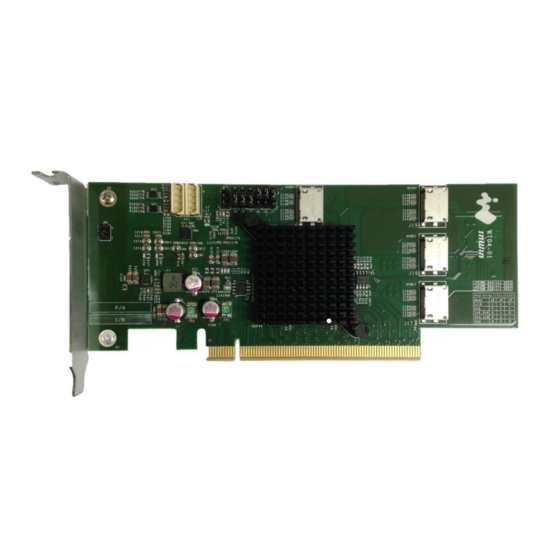

1 Overview The PCIe Retimer AIC is mainly designed to bridge the connections between x16 PCIe Slot host on Motherboard to 4 x4 NVMe SSDs on backplane. Alternately, the add-in- card supports connecting to x8 or x16 devices as PCIe signal integrator. The link speed of the HBA can support up to PCIe Gen3 speed, says 8Gb/s. -
Page 5: Technical Specifications
Technical Specifications General ⚫ Quad port PCI-E x16 Gen-3 Retimer ⚫ Four lanes per each OCuLink port support up to 32Gbps per port ⚫ Supports four physical NVMe devices ⚫ Operating temperature from 10°C - 55°C ⚫ Pure HBA Dimension ⚫... -
Page 6: Components
3 Components 3.1 Layout • • Bottom... - Page 7 • Physical view • Details view...
-
Page 8: Connectors
3.2 Connectors • Connectors Symbol Description PCIe x16 bus NMVe0 Oculink Connector NVMe1 Oculink Connector NVMe2 Oculink Connector NVMe3 Oculink Connector VPP0 VPP1... -
Page 9: Jumpers
3.3 Jumpers • Jumper settings Jumper Name Function J3, J4, J5 SMBus Address Configuration J7, J8, J9 PCIe Mode Selection VPP Bus Selector JN1 is used for VPP0 and VPP1 configuration. Since come of the NVMe controller’s LED management in VPP/I2C carry 2 slots information while some are carry 4 slots information. -
Page 10: Installation
4 Installation 4.1 Electrostatic Discharge Sensitive (ESDS) Electrostatic Discharge (ESD) might damage electronic components. To prevent your Retimer card from being damaged, it is important to handle it with care. The following measures are generally sufficient to protect your device from ESD. Precautions •...
