Summary of Contents for Edic COUNTER STRIKE 5

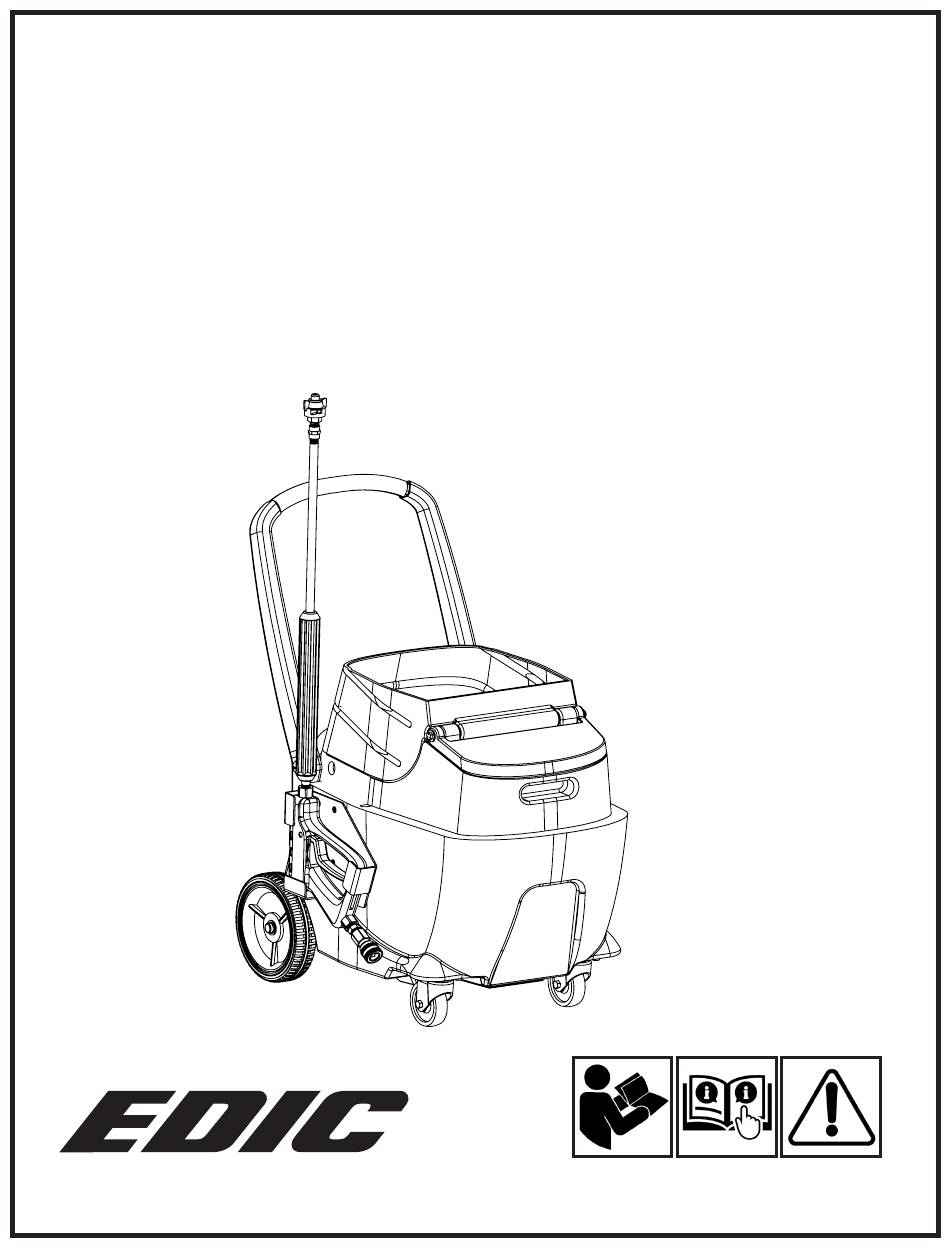

- Page 1 COUNTER STRIKE PROFESSIONAL DISINFECTING SPRAYER OWNER’S/OPERATOR’S MANUAL MODEL: 500M PROUDLY DESIGNED AND MANUFACTURED BY WWW.EDIC-USA.COM Revised 6-15-20...
- Page 2 EDIC’s liability ceases when the carrier picks up the shipment. However, our customer service staff will be happy to furnish any information needed in connection with the claim and will attempt to expedite a resolution.
- Page 3 ELECTRICAL - 115 Volt Model: 500M This machine is designed to operate on a standard 15 amp, 120 volt, 60 Hz, AC circuit. Voltages below 105 volt AC or above 125 volts AC could cause serious damage to the motor. GROUNDING INSTRUCTIONS FOR 115VOLT: This piece of equipment must be grounded.
-
Page 4: Intended Use
NOTICE RE OWNER’S MANUAL • Prior to use, read and understand the Owner’s Manual completely. It is the owner’s responsibility to ensure that each operator of the 500M (“equipment”) has read and understands the Owner’s Manual. • Use this equipment only in accordance with the Owner’s Manual. Familiarize yourself with all components prior to use. -
Page 5: Personal Protective Equipment
• Check equipment daily and prior to each use. Repair or replace worn or damaged parts immediately with genuine replacement parts from EDIC only. • Store equipment in a cool, dry place, away from heat and open flames. Do not expose to extreme tempera- tures. -
Page 6: Chemical Safety Precautions
CHEMICAL SAFETY PRECAUTIONS • Obtain, read, understand and follow the chemical product’s SDS and label prior to use. • Know and use the phone number of the local poison control center if any questions arise during product use. • Know emergency and first aid procedures related to the chemical product in use before handling. Sprayer leaks, bodily chemical contact, poisoning, and spills require immediate response. - Page 7 OVERALL EMPLOYEE SAFETY • Always consult the SDS prior to use of any chemicals. • Always wear PPE when filling, using, cleaning, and servicing the sprayer. • Follow the PPE requirements as recommended by the chemical product’s SDS. • Clean up spills immediately per instructions on chemical label or SDS. •...
- Page 8 1. HANDLE 5. POWER SWITCH 2. STORAGE COMPARTMENT 6. BLANK SWITCH COVER (NO SWITCH) 3. SOLUTION TANK ACCESS 7. POWER CORD STUB 4. MISTING GUN AND HOLSTER BRACKET 8. SOLUTION QUICK DISCONNECT...
- Page 9 CONNECTING YOUR MISTER GUN: Connect your Gun to the end of the solution line/ Solution hose by pulling back the lock ring on the female and in- serting the male quick connect. Release the female lock ring. Connect the opposite end of the solution hose to the male quick disconnect on the machine (# 8 on page 7)
-
Page 10: General Tips
OPERATING THE 500M: Prepare your chemical and place it into the solution tank (#3 on page 7). Follow your chemical manufacturer’s dilution ratios. Once you have filled the machine with the appropriate chemical, you may begin spraying. Always evaluate the area for the best application techinque. -
Page 11: Maintenance
Maintenance: The tip used on Mister Gun is very fine and it is susceptible to clogging. Make sure to take it apart frequently and clean the filters and tips as often as possible. To clean the tip, make a 1:4 vinegar solution (1 parts vinegar and 4 parts water). allow the tip to soak for a few hours and rinse off with clean water before reinstalling.
