Echelon REFLECT TOUCH Instruction Manual page 6

The Echelon Reflect is required to be mounted directly to a wall stud or suitable floor stand.
®
NOTE: Standard installation height is 69" to the top of the wall mount.
STUD MARK

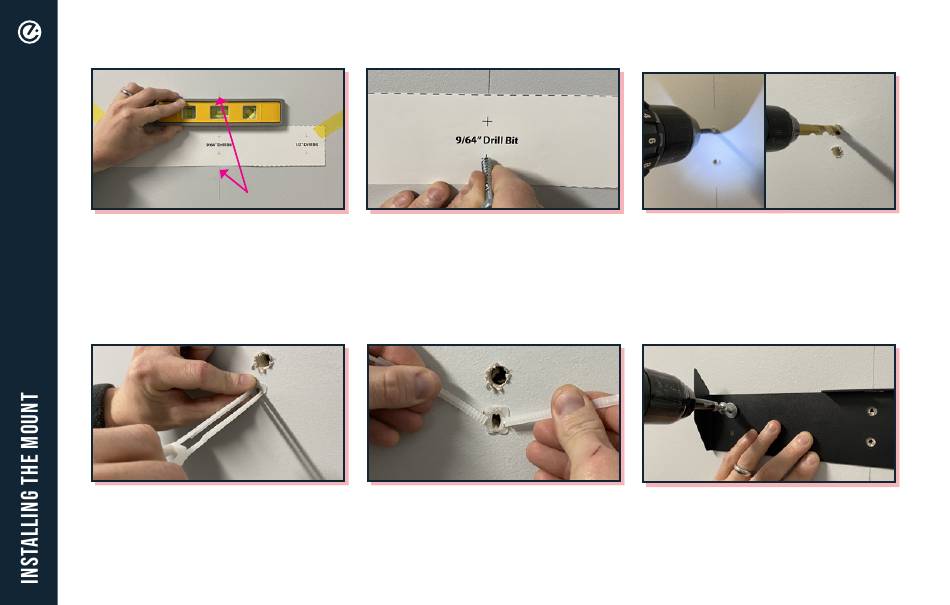

1. Locate stud within the wall you
intend to hang your Reflect
and mark with a pencil. Level
and tape wall mount template
with middle two cross marks
centered over stud mark.
4. Insert zip toggles into 1/2" holes
and push the zip toggle plate
until it is flush against the wall.
*
Ensure eyelet of zip toggle is oriented as
shown above.
2. Mark all six holes by pressing the
tip of a lag screw through the
center of each cross mark.
*
Ensure that you press hard enough to
leave a hole in the drywall behind
template.
5. Snap off excess plastic from the
zip toggle.
9/64"
1/2"
3. Using a 9/64" drill bit, drill two
pilot holes for the lag screws.
Using a 1/2" drill bit, drill four
holes for the zip toggles.
the
6. Hand screw in bolts into the
zip toggles. Use drill to tighten
down.
* If installing onto an insulated wall, ensure
anchor sits flush inside inner wall before
tightening down.
