Round Up 2

Speaker

Problems with your product?

Email: vieta@letmerepair.es

Ref. VM-BS26

Phone: 952 179 479

English

Thank you for purchasing the outdoor Bluetooth Round Up 2

speaker VM-BS26. To ensure correct operation, please read this user

manual carefully before operation.

USER MANUAL

Need help?

Do you have a question about the Round Up 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for VIETA PRO Round Up 2

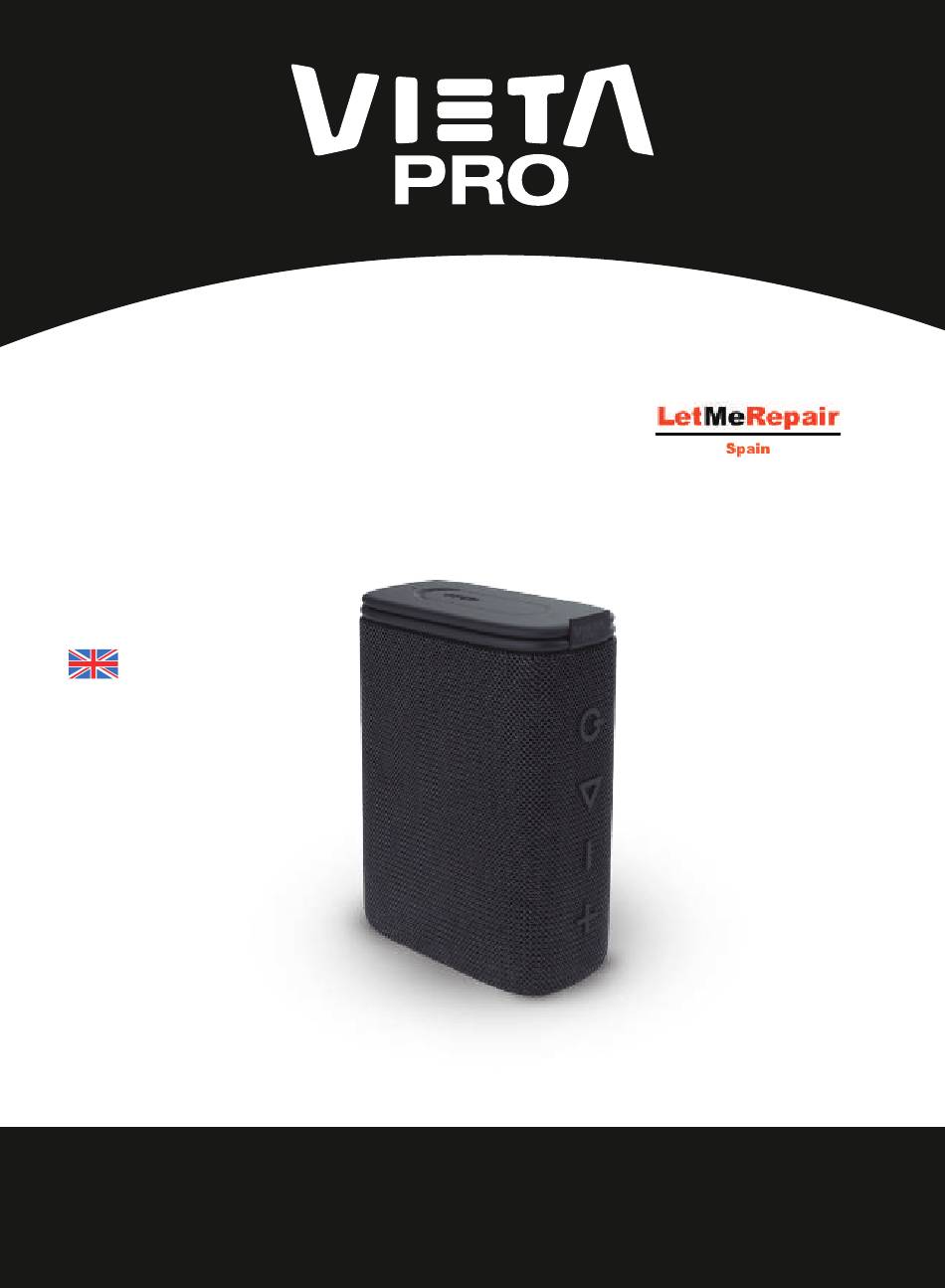

Page 1 Problems with your product? Contact us at: Email: vieta@letmerepair.es Ref. VM-BS26 Phone: 952 179 479 English Thank you for purchasing the outdoor Bluetooth Round Up 2 speaker VM-BS26. To ensure correct operation, please read this user manual carefully before operation. USER MANUAL...
Page 2 The VIETA PRO models are based on the beneﬁts of professional sound, where the standards of quality, durabi- lity, and sound are above the commercial products of con- sumer electronics.

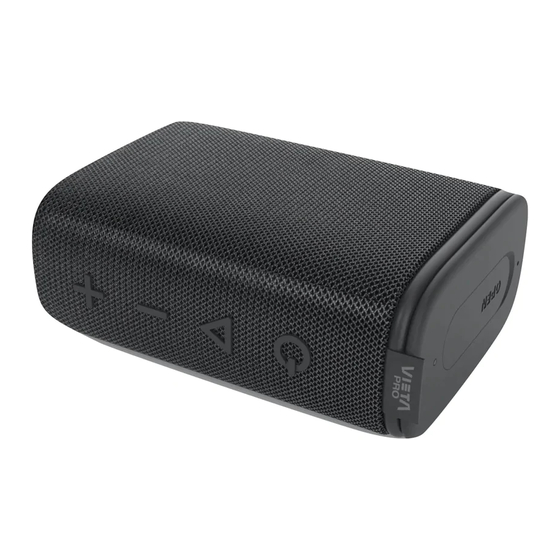

Page 3 www.vietapro.com 1. Product Diagram Volume+/Next Track Volume-/Previous Track Play/Pause Button / Voice assistant Power Button LED Indicator AUX Port Type C Charging Port Microphone...
Page 4 2. Button Functions Long press: power on/o the speaker Short press: change modes （ Bluetooth-FM-Aux in） Short press: play/pause music, pick up/hang up a call Long press 2S: reject a call Long press 3S:disconnect Bluetooth pairing Doble Click: calling out the mobile’s voice assistant Short press: volume down Long press: previous track Short press: volume up...
Page 5 , speaker enters into bluetooth pairing mode with the blue LED ﬂashes quickly. · Search the name “Vieta Pro Round Up 2” on your phone bluetooth list then connect it.The blue LED light will stays light when the connection is successful.
Page 6 · Short press for volume up/down, long press (2 seg) to change next/previous track. And there will be a “Max Volum” sound when it is maximum and minimum volume. · Short press to pick up a call or hang up a call , long press to reject a call.
Page 7 www.vietapro.com 4. TWS Function (True Wireless Stereo) (only available in Bluetooth mode) In order to activate the True Wireless Stereo function: 1) Enter Bluetooth mode in the main speaker (master) and then pair your device with the speaker. If desired, you can start audio playback before activating TWS function.
Page 8 5. AUX IN Mode · Turn on the speaker, plug in the audio cable, the speaker will enter into aux in mode with “Aux in mode” sound. · When playing music ,the blue LED light ﬂashes slowly (the light goes on and goes o for one second), short press to pause music, blue LED light stays.
Page 9 www.vietapro.com 6. FM Mode · Turn on the speaker, short press to switch to FM mode with “FM Radio Mode” sound , the blue LED light ﬂash slowly with sound. · Long press to start auto-scan. When the scan is ﬁnished, the speaker will play the ﬁrst station automatically.
Page 10 7. USB playback · Connect your USB drive to the speaker by using the OTG cable in the box, then the speaker will play music automati- cally. · Short press for volume up/down · Long press to change next/previous track. ·...
Page 11 www.vietapro.com · When the battery voltage is below 3.3V(below 15% capa- city) ,speaker will enter into “battery Low” alarm state and it will alarm every 30 seg one time then power o automati- cally after 5times alarm. · When you hear the ﬁrst “battery Low”alarm, please charge the speaker in time.
Page 12 10. Product information Model: Vieta Pro Round Up 2 BT Version: 5.0 Dimension: 76*41*101mm Product Weight: 230g Inputs: AUX in Battery: 3.7V 1800mAh Speaker Diver: 4ohm 5W Power Supply: type C 5V/1A Waterproof Rating: IPX7 www.vietapro.com...
Page 13: Declaration Of Conformity
Tel: +34 93 1162491 CIF: A62829841 We declare under our own exclusive responsibility that the product: • Description: Bluetooth Speaker • Brand: Vieta Pro • Model: VM-BS26 • Manufacturer: FRAMASON AUDIO S.A • Manufacturing country: China referred to in this declaration is in compliance with the essential norms and...
Page 14 www.vietapro.com...

This manual is also suitable for:

Vm-bs26
