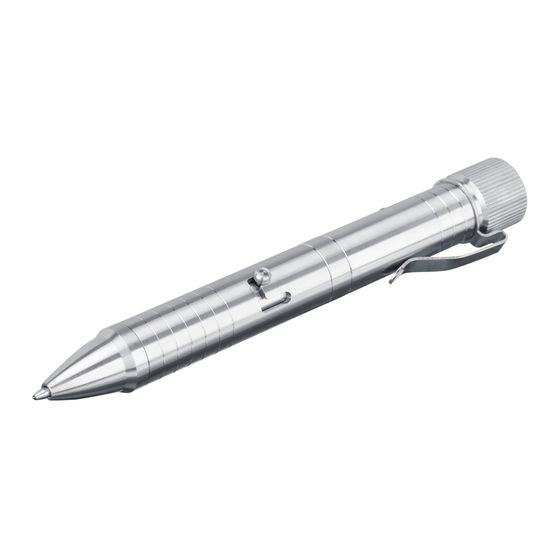

Saramonic SR-MLP4 Quick Start Manual

Saramonic SR-MLP4 Quick Start Manual

Advertisement

Quick Links

Operating guide
1. Long press the OFF/ON button for 2 seconds to
turn on the unit, the LED indicator is solid red.
2. Press the OFF/ON button to start recording. In
recording mode, the LED indicator flashes
alternately in red and green light. ( If you want to
use the flashlight on top of the unit, double press
the OFF/ON button to turn it on/off. Also, it
allows to function recording and flashlight
simultaneously.)
3. Short press the OFF/ON button once to stop
recording, the LED indicator is solid red.
4. Long press the OFF/ON button again for 2
seconds to turn off the unit, the LED indicator will
go off.
5. Transfer files to computer.
Plug the USB cable to the unit and connect to the
computer, then turn on the unit, it will enter the
USB storage mode.
Press the OFF/ON button again for 2 seconds to
complete data transmission.
When the power indicator is off, the USB cable
can be pulled out.
6. Charge the unit via the USB interface.
Quick Flashing Red Light: the unit is in low
battery. (The unit will save data automatically to
memory card while the battery is low or before
the power is off. )
Solid Green: the unit is charging (It allows to
function recording while charging.)
LED indicator turns off: fully charged.
7. Built-in SD memory card(8GB)
Built-in SD memory card(8GB) has advantages of
long recording time.
With the remain memory storage runs out, the
unit is unable to record a new audio data. The
LED indicator is solid red.
Highlights
• A Pen with Voice Recorder and Flashlight
• For Covert Audio Surveillance
• 8GB Internal Storage
• Powered by Rechargeable Battery
• 4 Hours of Continuous Recording
• Built-in USB Connector to Download Files
Packing list
SR-MLP4
USB cable
User manual
Warranty card
Specifications
Recording Media
USB Type-C/F
Record WAV
USB
LED light
Battery
Operating time
Material
Dimensions
Weight
Specifications
www.saramonic.com
Built-in TransFlash card (8GB)
IN voltage range MIN 3.5V, MAX 28V;
IN operating voltage range, restricted by
VDPM and VOVP MIN 4.45V, MAX 6.45V
16kHz/16bit
Write speed 300KB/S,
Read speed 400KB/S
0.1W; 15LM
170mAh Built-in rechargeable battery
Only recording: 4 hours
Only LED lighting: 5 hours
Both recording and lighting: 2 hours
Stainless steel
φ 15.5*140mm
107g (3.77oz)
MIC
OFF/ON
LED light
Microphone
LED indicator
OFF/ON button
USB Type-C port
(For charging and
data transmission)
Pen switch
SR-MLP4
