Note: Tools required for assembly: Suitable spanners.
11
4
14
1
Parts List
1. Base (1)
2. Wheel (2)
3. Caster (2)
4. Rear Panel (1)
5. Shelf (1)
6. Welder Tray (1)
7. Left-Side Support Leg (1)
8. Right-Side Support Leg (1)
9. Hook (2)
SKU WLDCRTROSAD55 Revision 2.0 October 2016
8
10
2

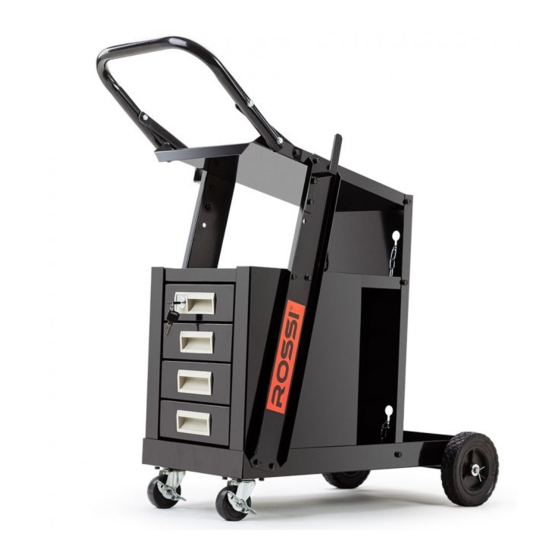

Welding Cart with Drawers
Assembly Guide
6
5
17
3
12
13
10. Axle (1)
11. M6x12 Bolt/Flat Washer/Lock Washer/Nut (33)
12. M12 Flat Washer (4)
13. Split Pin (2)
14. Bottle Chain (1)
15. Drawer Assembly (4)
16. Left-Side Drawer Runner Plate (1)
17. Right-Side Drawer Runner Plate (1)
18. Keys (2) (for top drawer only. Not shown)
15
9
7
16
Advertisement
Summary of Contents for Edisons Rossi WLDCRTROSBD55
- Page 1 Welding Cart with Drawers Assembly Guide Note: Tools required for assembly: Suitable spanners. Parts List 1. Base (1) 10. Axle (1) 2. Wheel (2) 11. M6x12 Bolt/Flat Washer/Lock Washer/Nut (33) 3. Caster (2) 12. M12 Flat Washer (4) 4. Rear Panel (1) 13.
- Page 2 Welding Cart with Drawers Assembly Guide Install axle (10) to base (1), then on each side place a washer (12) then wheel (2) (wheel “spokes” facing out). Place another washer (12) on outside of wheel, then secure with split pin (13). Bend legs of split pins to prevent them falling out.
- Page 3 Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety Consult all documentation, packaging and product The product has been supplied by a general ...
