'STAR-700' Operating Guidelines with 25 Segment Programmer.
Safe Operating Value (SOV).
On initial Power up the STAR-700 Touchscreen shows the 'Main Screen' and controls the 'Safe
Operating Values' only. You will notice that the indicator in the top right corner states that the
Program Cycle is OFF. The Values below the heading 'Safe Operating Value' are the current set
values and the controller will start to control these values. To change the 'Safe Operating Value'
simply touch the 'Operating Value' box. A Pop-Up numeric keypad is displayed. Type in the new
value and press enter. The cabinet will automatically control the new 'Safe Operating Value'.
The 'Safe Operating Value' has been designed to be set by the operator to a safe/normal condition
that will not cause damage to any Research, Experimental, Plant Material and/or any items being
stored in the cabinet in the event of a power failure. If a 'Program Cycle' is operating and a power
failure occurs, on resumption of power the controller will revert to its 'Safe Operating Values'.

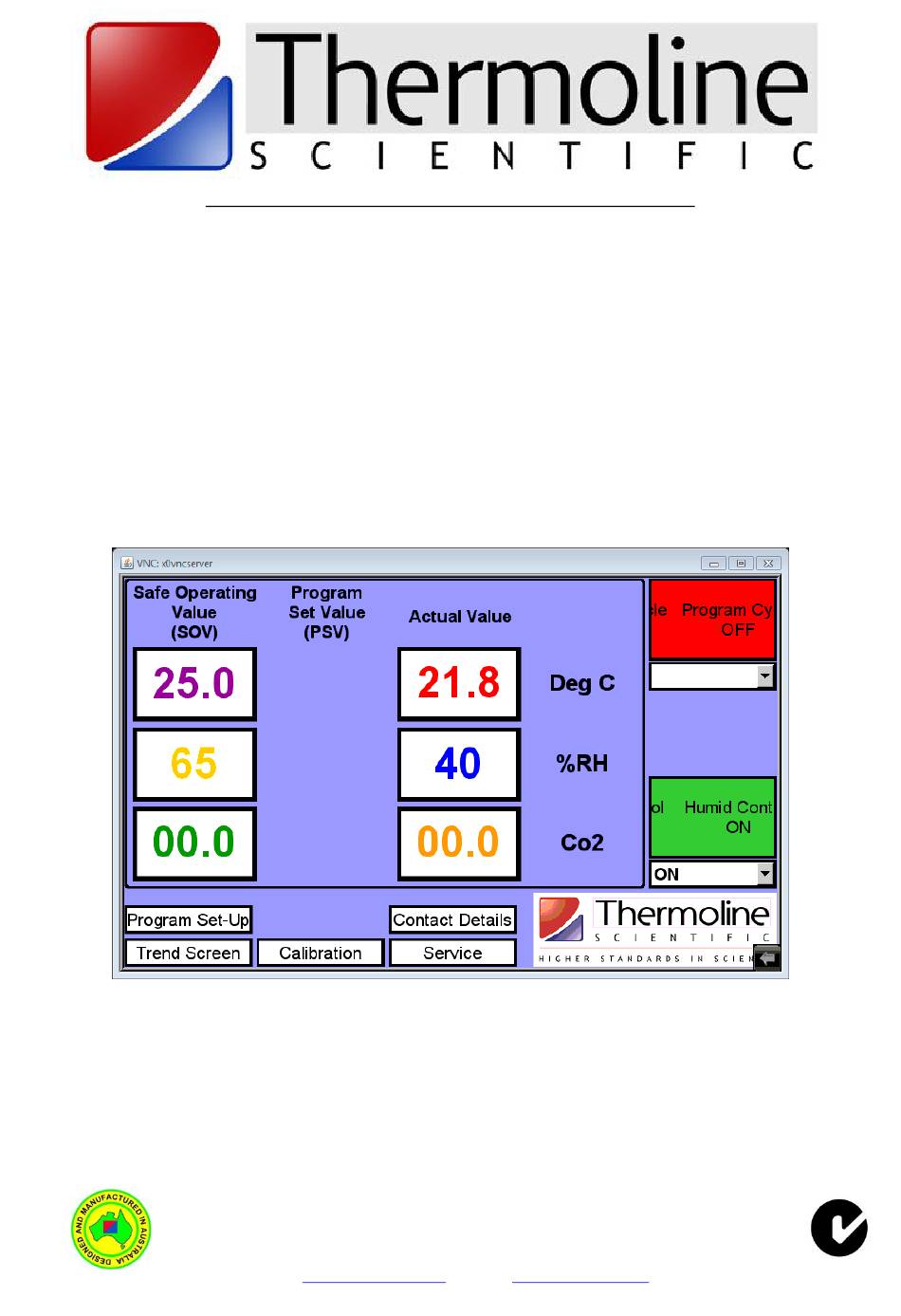

Main Menu Screen (SOV Mode)
Thermoline Scientific Equipment Pty. Ltd.
T/A
Thermoline Scientific
10-12 Ross Place, Wetherill Park N.S.W. 2164. Australia.
P.O. Box 6862, Wetherill Park Delivery Centre, N.S.W. 1851. Australia.
Phone: (02) 9604 3911.
Fax:
(02) 9725 1706.
Email:
sales@thermoline.com.au
ABN 80 000 859 129
International: 61 2 9604 3911.
International: 61 2 9725 1706.
Web:
www.thermoline.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAR-700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Thermoline Scientific STAR-700

  • Page 1 ‘STAR-700’ Operating Guidelines with 25 Segment Programmer. Safe Operating Value (SOV). On initial Power up the STAR-700 Touchscreen shows the ‘Main Screen’ and controls the ‘Safe Operating Values’ only. You will notice that the indicator in the top right corner states that the Program Cycle is OFF.
  • Page 2 ‘Actual Humidity Value’ is still displayed, although the Humidity function is OFF. Main Menu Screen Showing Humidity Drop Down List. Thermoline Scientific Equipment Pty. Ltd. Thermoline Scientific ABN 80 000 859 129 10-12 Ross Place, Wetherill Park N.S.W. 2164. Australia.
  • Page 3 Main Menu Screen Showing Humidity Control OFF. Thermoline Scientific Equipment Pty. Ltd. Thermoline Scientific ABN 80 000 859 129 10-12 Ross Place, Wetherill Park N.S.W. 2164. Australia. P.O. Box 6862, Wetherill Park Delivery Centre, N.S.W. 1851. Australia. Phone: (02) 9604 3911.
  • Page 4 Power Failure: In the event of a power failure the Program Cycle will end. On resumption of power the cabinet will control the Safe Operating Values. Thermoline Scientific Equipment Pty. Ltd. Thermoline Scientific ABN 80 000 859 129 10-12 Ross Place, Wetherill Park N.S.W. 2164. Australia.
  • Page 5 To’. Once it repeats Segment 1-2 three times it will ramp from 10.0degC and 60%RH to 25.0degC and 60%RH over 10 Hours. The Program will then end and control the Safe Operating Values (SOV). Program Set Up Screen (Segment 1-5). Showing Segment Types Thermoline Scientific Equipment Pty. Ltd. Thermoline Scientific ABN 80 000 859 129 10-12 Ross Place, Wetherill Park N.S.W.
  • Page 6 Program Set Up Screen (Segment 1-5). Showing Event Outputs. Thermoline Scientific Equipment Pty. Ltd. Thermoline Scientific ABN 80 000 859 129 10-12 Ross Place, Wetherill Park N.S.W. 2164. Australia. P.O. Box 6862, Wetherill Park Delivery Centre, N.S.W. 1851. Australia. Phone: (02) 9604 3911.
  • Page 7 Program Cycle simply select END from the drop down Menu. Main Menu Screen (SOV Mode). Showing Program Status Values. Main Menu Screen (SOV Mode). Showing Program Status Values. Thermoline Scientific Equipment Pty. Ltd. Thermoline Scientific ABN 80 000 859 129 10-12 Ross Place, Wetherill Park N.S.W.
  • Page 8 If the operator selects START while the program is in paused mode the Program will restart from the beginning (Segment 1). It will not resume from where the program cycle was paused. Only the RESUME function will resume the Program Cycle. Thermoline Scientific Equipment Pty. Ltd. Thermoline Scientific ABN 80 000 859 129 10-12 Ross Place, Wetherill Park N.S.W.
  • Page 9 The Trend Screen is refresh’s every time power to the instrument is cycled at power up. Trend Screen Co2 Trend Screen Thermoline Scientific Equipment Pty. Ltd. Thermoline Scientific ABN 80 000 859 129 10-12 Ross Place, Wetherill Park N.S.W. 2164. Australia.
  • Page 10 24hrs. The data in the table is refreshed every 24hrs. However the data in the memory that can be downloaded will store approximately 800 days. Data Menu Screen. Thermoline Scientific Equipment Pty. Ltd. Thermoline Scientific ABN 80 000 859 129 10-12 Ross Place, Wetherill Park N.S.W.
  • Page 11 Control Pages of the Touchscreen. Security Screensaver (SOV Mode) Security Screensaver (PSV Mode) Thermoline Scientific Equipment Pty. Ltd. Thermoline Scientific ABN 80 000 859 129 10-12 Ross Place, Wetherill Park N.S.W. 2164. Australia.
  • Page 12 To exit out of the Security Screensaver simply press the close button. Then press the ‘Press to Log In & Exit Screensaver’ Button. The User Access window will appear. Security Screensaver with User Access Window. Thermoline Scientific Equipment Pty. Ltd. Thermoline Scientific ABN 80 000 859 129 10-12 Ross Place, Wetherill Park N.S.W.
  • Page 13 As soon as you have pressed ‘Enter’ simply touch the screen anywhere within the Black rectangle. The Touchscreen will then show the Main Screen as shown below. Main Menu Screen (SOV Mode) Thermoline Scientific Equipment Pty. Ltd. Thermoline Scientific ABN 80 000 859 129 10-12 Ross Place, Wetherill Park N.S.W.
  • Page 14 Passcodes: 2222 These passcodes should only be given to Authorised Personnel. Calibration Screen. Thermoline Scientific Equipment Pty. Ltd. Thermoline Scientific ABN 80 000 859 129 10-12 Ross Place, Wetherill Park N.S.W. 2164. Australia. P.O. Box 6862, Wetherill Park Delivery Centre, N.S.W. 1851. Australia.
  • Page 15 This screen is for the sole purpose of our service technicians or service contractors. This is a password protected screen and is only accessible by authorised Thermoline Technicians or Authorised Thermoline Contract Technicians. Thermoline Scientific Equipment Pty. Ltd. Thermoline Scientific ABN 80 000 859 129 10-12 Ross Place, Wetherill Park N.S.W.
