Summary of Contents for QUAD VA-ONE+

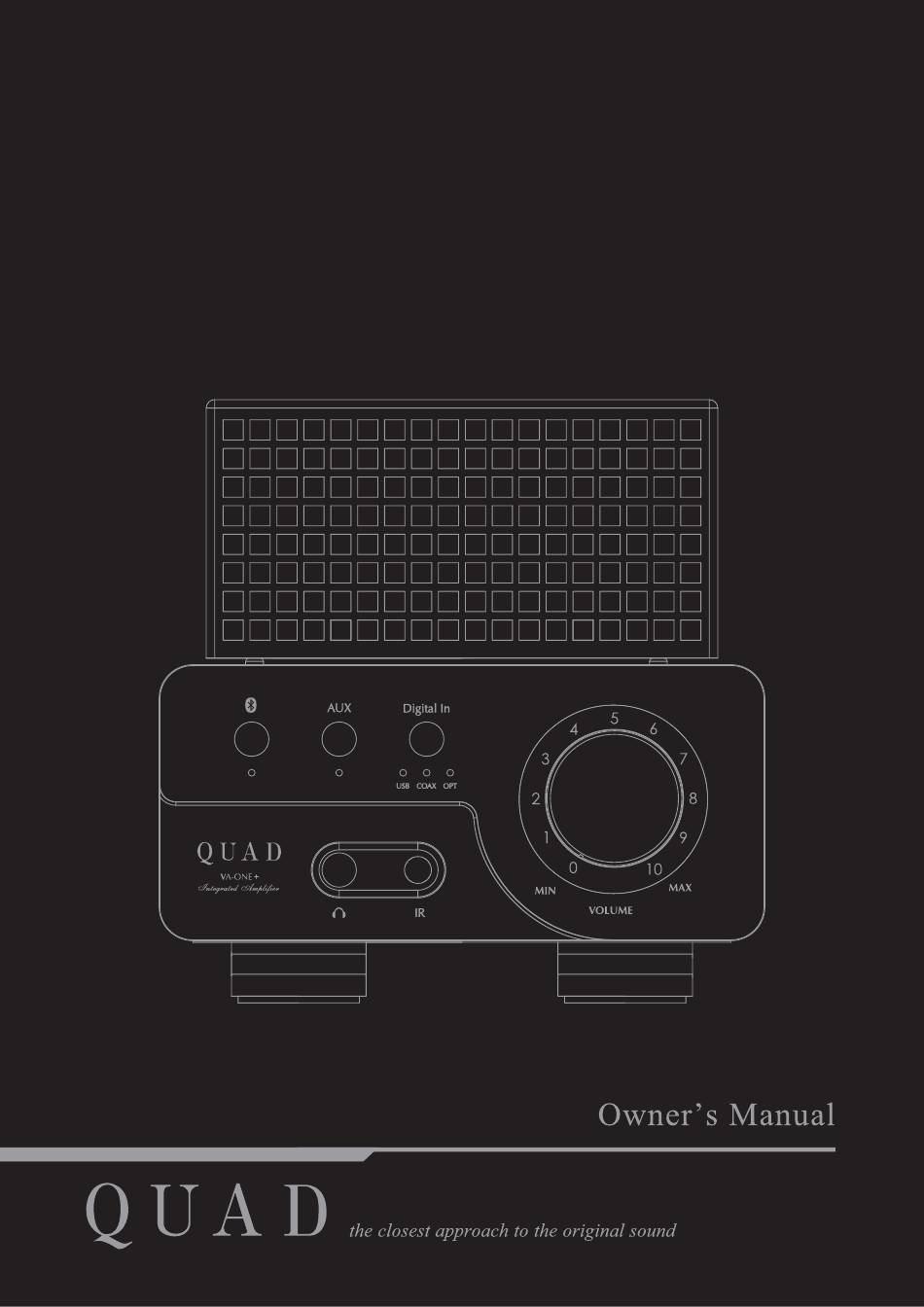

- Page 1 VA-ONE +...
-
Page 2: Important Safety Information
The ventilation should not be impeded by covering the ventilation IMPORTANT SAFETY INFORMATION openings with items such as newspaper, table-cloths, curtains etc. CAUTION! WARNING: Only use attachments/accessories specified or RISK OF ELECTRIC SHOCK provided by the manufacturer (such as the exclusive supply DO NOT OPEN adapter, battery etc.). -
Page 3: Table Of Contents
CONTENTS IMPORTANT SAFETY INFORMATION …………………………………………………………Inside Front Cover USER GUIDE …………………………………………………………………………………………………………. . 1 CONTROLS AND CONNECTIONS …………………………………………………………………….………… 2 REMOTE HANDSET ……………………………………………………………………………….……………..3 SETUP ………………………………………………………………………………………....…………… 4 STANDBY MODE .…………....……………………………………………………………………………… 4 PRECAUTIONS ………......………………………………………………………….………….…… FURTHER ADVICE ………......…………………………………………………………..…….… 5 USING THE USB SOURCE ………………………………………………………………………….…………..SPECIFICATIONS ………………………………………………………………………….………….....……. 7 INTERNATIONAL SERVICE CENTRE ADDRESS …………………………………….………….....……. -
Page 4: User Guide

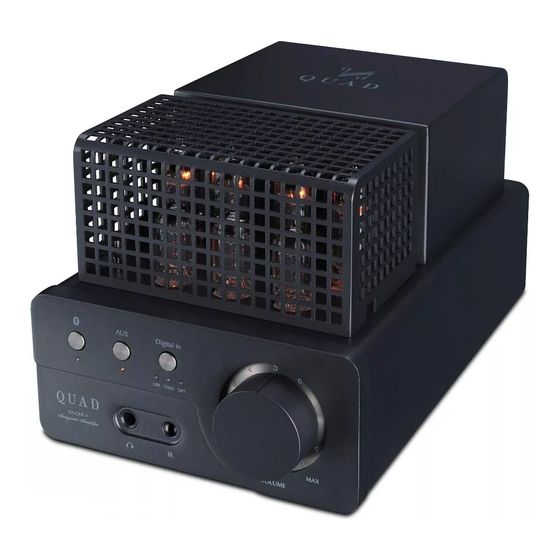

The QUAD VA-ONE+ is designed for the music lover. We make no exaggerated performance claims and are content to let the results speak for themselves. Thank you for purchasing this QUAD equipment. We hope that it will bring you many years of listening pleasure, and that, like its illustrious predecessor, it will be a treasured possession for you and for future generations of music lovers. -
Page 5: Controls And Connections
CONTROLS AND CONNECTIONS Aux Selector Aux LED BT Selector Digital LED BT LED Remote Receiver Digital Selector... -
Page 6: Remote Handset
The selected source indicator will flash when VA-ONE+ responds to remote commands... -
Page 7: Setup
SETUP Connect the music source to a suitable input on the unit. Connect your loudspeakers to the Loudspeaker Output terminals. Set the volume to minimum, connect the unit to the mains supply and switch on. The amplifier takes 30 seconds or longer to warm up before you can use it. -
Page 8: Further Advice
Connection with other components When connecting this unit to a CD/DVD player, tuner, or other analogue source, turn off the power switches of this amplifier and all other connected units. Inserting a plug while the amplifier is operational will cause a very strong noise that may damage the speakers. -
Page 9: Using The Usb Source
Valve Lifetimes Valves contain a heating element. This heats up the valve's cathode, which is coated to give off a steady stream of electrons. After a few years this coating will begin to wear out and performance will gradually deteriorate. The EL84 output valves are likely to deteriorate first but the driver valves will also eventually wear out. -
Page 10: Specifications
SPECIFICATIONS Integrated amplifier General Description 2 x 15W RMS(6Ω) - 2 x 12W RMS(8Ω / 4Ω) Rated Power Output -3dB 20Hz~50kHz Power Bandwidth Frequency Response +/-1dB 20Hz~20kHz Total Harmonic Distortion <0.5%(1kHz rated output) Signal-to-noise Ratio(S/N) 90dB(ref.15W0） Input Impedance 50KΩ Inputs 1 x RCA input 1 x Coaxial input 1 x Optical input 1 x USB input 1 x Bluetooth (AptX) 2 x Speaker,1 x Headpone socket Outputs... - Page 12 IAG House, 13/14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK Tel: +44(0)1480 452561 Fax: +44(0)1480 413403 http://www.quad-hifi.co.uk IAG reserves the right to alter the design and specifications without notice. All rights reserved © IAG Group Ltd. Quad is a member of the International Audio Group. Code: QH14-MNL002a...
