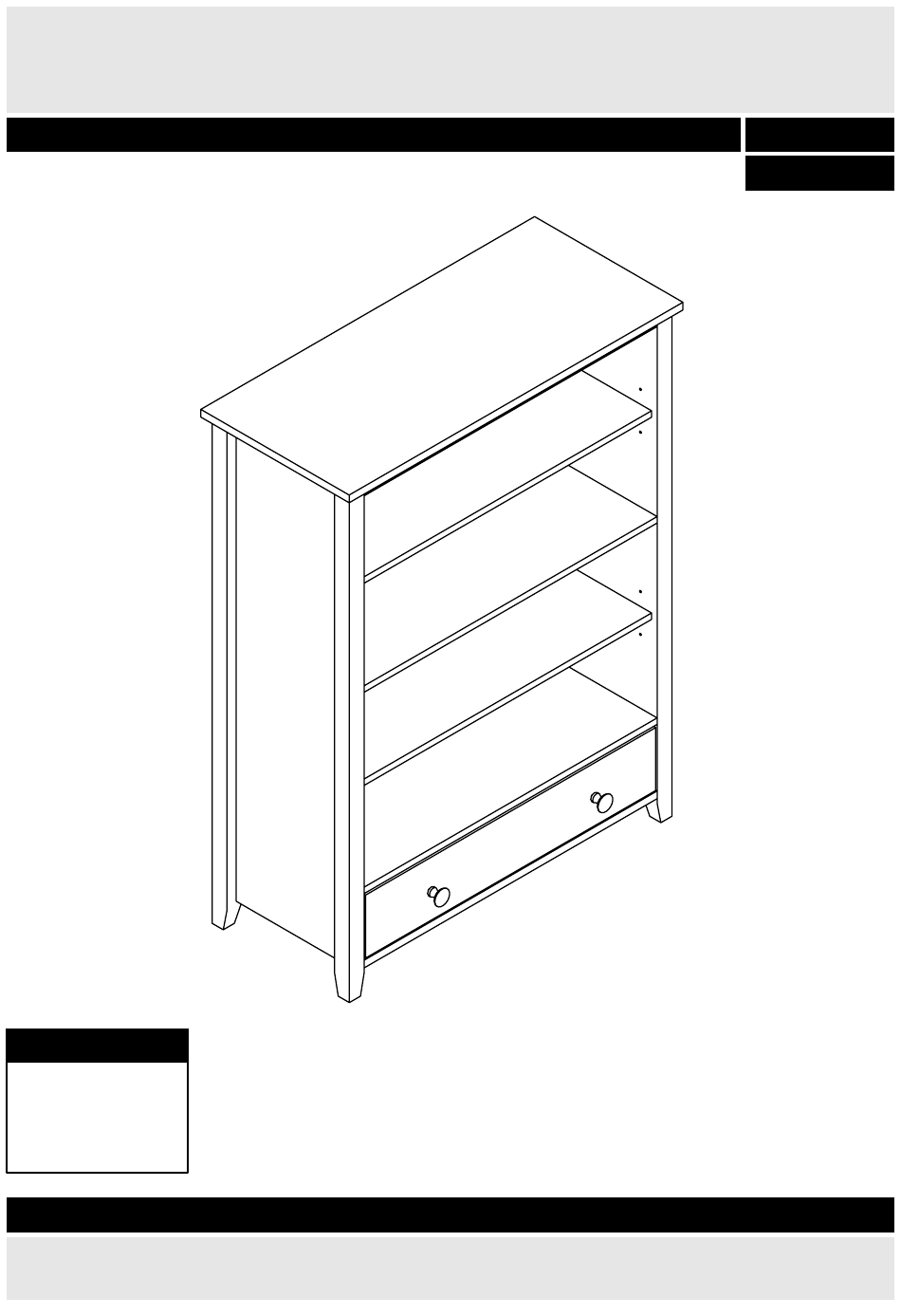

Henley Bookshelf
Assembly Instructions -
Dimensions
Width - 90cm
Depth - 40cm
Height - 120cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
614 / 3222
614 / 3239
Issue 1 -18/10/11
Advertisement
Summary of Contents for Henley 614/3222
- Page 1 Henley Bookshelf Assembly Instructions - Please keep for future reference 614 / 3222 614 / 3239 Dimensions Width - 90cm Depth - 40cm Height - 120cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800...
-
Page 2: Wall Fixing
Safety and Care Advice Important - Please read these instructions fully before starting assembly • To ensure an easier assembly, • Keep these instructions for • Do not use this item if any future use. components are missing or we strongly advise that all fittings damaged. -
Page 3: Components - Parts
Components - Parts If you have damaged or missing components, call the Customer Helpline: 08456 400800 Please check you have all the parts listed below Inside Inside Side panel ( right ) Side panel ( left) (37 x 118.2cm) (37 x 118.2cm) Underside Lower back panel (90 x 40cm) - Page 4 Components - Parts If you have damaged or missing components, call the Customer Helpline: 08456 400800 Please check you have all the parts listed below Drawer base Drawer side panel (left) (75 x 28.6cm) (30 x 11.8cm) FRONT Drawer side panel (right) Lower shelf (30 x 11.8cm) (79x 36.9cm)
-
Page 5: Tools Required
Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. Wood dowel x 18 Locking nut x 26 Metal dowel x 26 Drawer handle x 2 19mm Screw x 2... - Page 6 Assembly Instructions Step 1 Preparing panels Place left and right side panels top panel and lower shelf flat on the floor with the fixing holes facing up. Screw metal dowels into panels as shown. Note: Insert metal dowels as far as shown. Bottom Do not overtighten.
- Page 7 Assembly Instructions Step 2 Attaching back panel Locate lower back panel onto bottom panel Note: Ensure the fixing holes are all facing in Holes to face inside as shown. Insert locking nuts into the holes in lower back panel as shown. Holes to face up Using a screwdriver, turn locking nuts...
- Page 8 Assembly Instructions Step 4 Attaching stretcher Locate lower front stretcher onto right side panel Holes to face down Note: Ensure the fixing holes are facing down. Insert locking nuts into the holes in lower stretcher as shown. Using a screwdriver, turn locking nuts clockwise to secure.
- Page 9 Assembly Instructions Step 6 Holes inside Attaching top stretcher Note: Groove to face down Locate rear stretcher onto right side panel Note: Ensure the groove is facing down. Locate upper front stretcher onto right side panel Holes to face down Note: Ensure the fixing holes are facing down.
- Page 10 Assembly Instructions Step 8 Attaching left side panel Insert wood dowels into the ends of the stretchers and shelves as shown. With help, carefully align left side panel locate into position. Insert locking nuts into the shelves and stretchers as shown. Turn locking nuts clockwise to secure.
- Page 11 Assembly Instructions Step 10 Fixing to wall a: Insert corner blocks into the 4 corners at the back of the bookshelf. Secure using screws Back b: It is recommended that the unit is fixed to a wall to ensure stability. Fix wall strap to back of unit using the screw...
- Page 12 Assembly Instructions Step 11 Fitting adjustable shelves a: Fit shelf support pins at the desired height. b:Carefully locate adjustable shelves onto the support pins. Note: The front edges of shelves have been labelled for easier identification. Labelled underneath (Front)
- Page 13 Assembly Instructions Step 12 Assembling drawer a: Assemble drawer side panels and drawer back together using screws Note: Ensure the Align grooves grooves in all 3 panels are aligned at the bottom. b: Slide drawer base into the grooves as shown.
- Page 14 Assembly Instructions Step 13 Locating drawer a: Fully extend all drawer runners out as shown. Pull out the side panel drawer runners for proper insertion of the drawers. b: Carefully locate the runners on the drawers, into the runners on the main unit.
