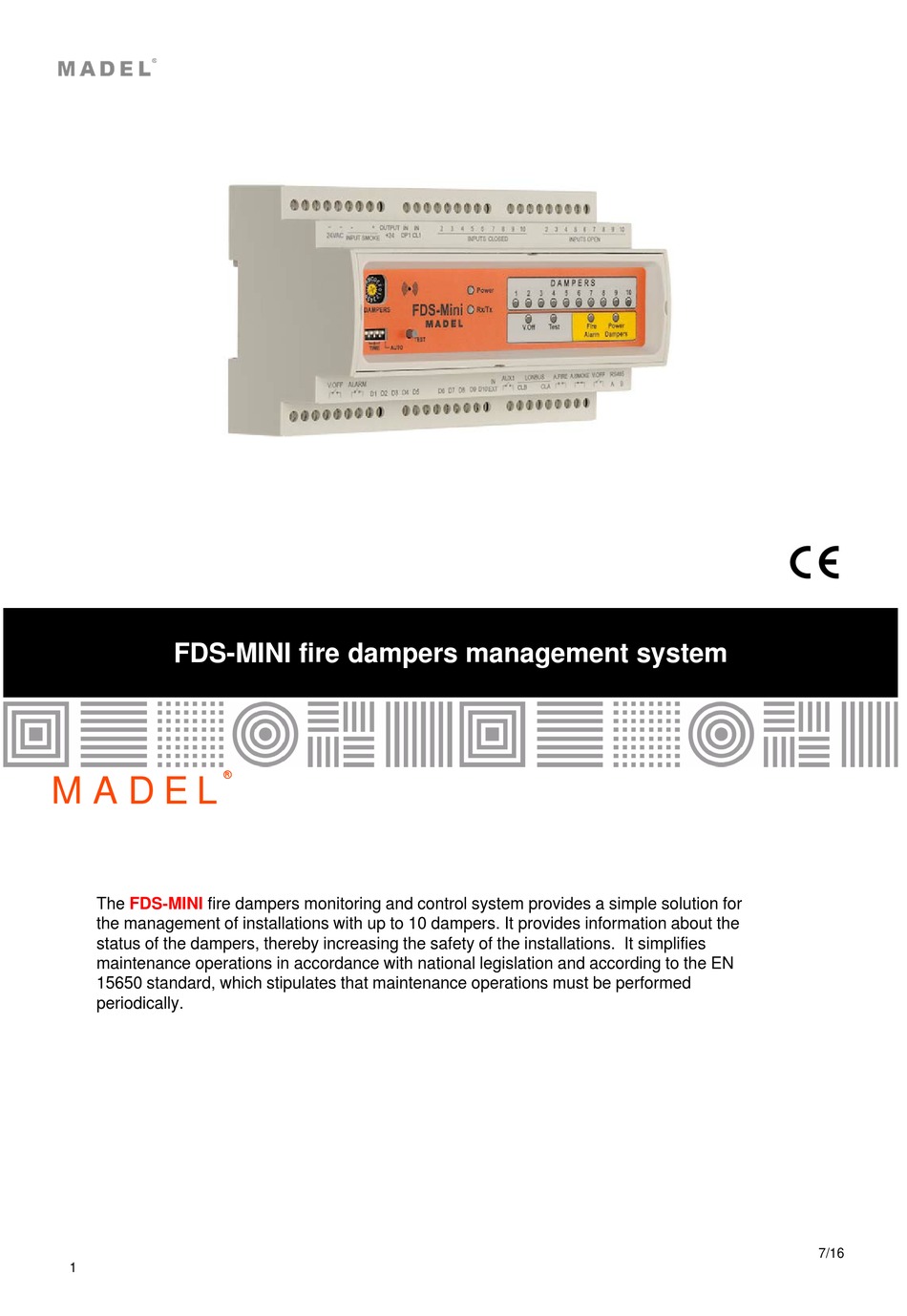

FDS-MINI fire dampers management system
M A D E L
The

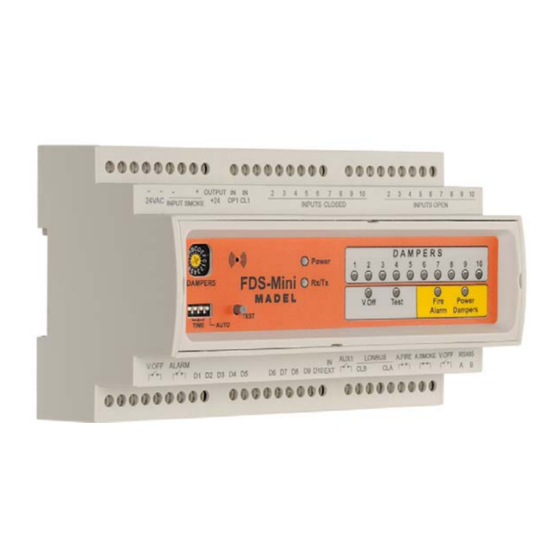

FDS-MINI
fire dampers monitoring and control system provides a simple solution for
the management of installations with up to 10 dampers. It provides information about the
status of the dampers, thereby increasing the safety of the installations. It simplifies
Maintenance operations in accordance with national legislation and according to the EN
15650 standard, which stipulates that maintenance operations must be performed
periodically.
7/16
1
Advertisement
Table of Contents
Related Manuals for Madel FDS-MINI
Summary of Contents for Madel FDS-MINI
- Page 1 FDS-MINI fire dampers management system M A D E L FDS-MINI fire dampers monitoring and control system provides a simple solution for the management of installations with up to 10 dampers. It provides information about the status of the dampers, thereby increasing the safety of the installations. It simplifies...
- Page 2 Damper reference Inspection date Check that the damper cables have not been damaged. Verified with FDS-MINI Check that the damper is clean, and clean if necessary. In person Check the condition of the slat and seals. Correct and record as necessary.
- Page 3 M A D E L FDS-MINI FDS-MINI/WS Local installation FDS-MINI/WS Remote installation 7/16...
- Page 4 (250 VAC x 6 A); 1 auxiliary output; potential-free/voltage-free contact (250 VAC x 6 A); class III equipment (SELV); protection rating: IP20; Dimensions 158 x 90 x 70. SPECIFICATION TEXT Supply and mounting of control and maintenance panel for FDS-MINI fire dampers and elements required for assembly. MADEL brand. 7/16...
