Light-Point 256603 Instruction Manual

LOUNGE TABLE 1
Code 256603-256604
LOUNGE TABLE 2
Code 256606-256607
LAMP-HOUSE:LED-18W / LED-25W
I
NSTALLATION INSTRUCTION
1．Before installing, make sure the power supply is switched off.

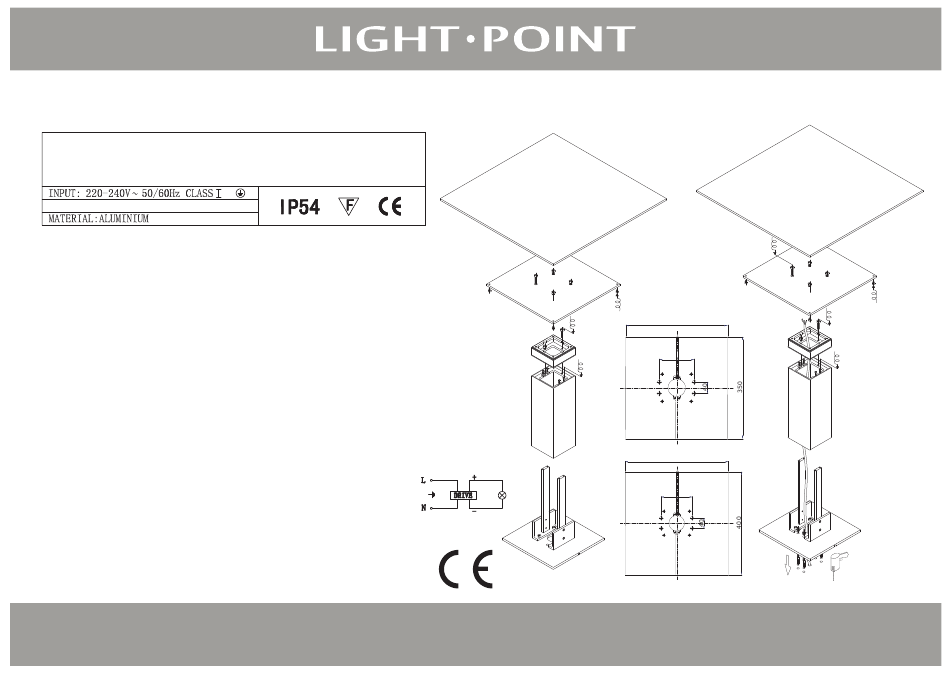

2．Follow the steps as the figure for installation
Fig.1:
A. Loosen the screws and separate the joiner from the square tube .
B. Loosen the screws and separate the square tube from base.
C. Loosen the screws and separate the table panel from body .
Fig.2:
A. holing and pull out the wires
B. fix the base into the ground.
C. fix the square tube to the base with screws..
D. fix the joiner to the square tube with screws..
E. connect the wires to the terminal block.
F. fix the body to the joiner with screws..
G. fix the table panel to the body with screws.
3. After finishing every step, tighten the screws, have the fixture fixed,
and then connect the power supply.
CLEANIN G INSTRUCTION
1. Before cleaning, ensure that the power supply is switched off.
2. Use only a soft cloth to clean the lamp, dampened with mild cleanser
if needed for resistant dirt.
3. Warning: do not use alcohol or other solvents
CAUTION:
In case of any doubt, please contact the qualified electrician.
NOTE:THIS PRODUCT MUST BE INSTALLED ACCORDING TO LOCAL LAWS AND REGULATIONS!
