SpringWell SMARTFLUSH SF4M Fitting Instructions

Technical Support
If you have any further technical queries, please contact technical support on 01924-420029.
PLEASE DO NOT RETURN ANY ITEM WITHOUT AUTHORISATION
PLEASE LEAVE THESE INSTRUCTIONS WITH CUSTOMER
-------------------------------------------------------------------------------------------------------------------------------------
This product is guaranteed from date of purchase to be free from manufacturing defects for a period of 3
years if registered, with the following conditions :-
1) The product has been properly installed as per instructions.
2) Damage due to water ingress to controller, debris from water supply, hard water erosion (see (2) on
front page), vandalism or misuse are not included. Statutory rights are not affected.
Service : Springwell Microelectronics Ltd, 197 Raikes Lane, Birstall, Batley WF17 9QF
_______________________________________________________________________________
Environmental information
This product may contain substances that can be hazardous to the environment if not disposed of
properly. Electrical and electronic equipment should not be dumped with general household waste but
must be separately collected for proper treatment and recovery. The crossed-out bin symbol is a
reminder of the need to dispose of the product properly at end of life; in this way you will assist in the
recovery, recycling and re-use of many of the materials in this product and help to reduce the amount of
electrical and electronic waste ending up in landfill and to improve quality of life by preventing the release
of potentially hazardous substances into the environment. Please contact us for information on disposal
arrangements or take to a local recycling facility. Where possible please recycle your packaging.
Producer registration number WEE/DB0002ZR
_________________________________________________________________________________
Carefully designed and distributed by:
SPRINGWELL MICROELECTRONICS LTD, 197 Raikes Lane, Birstall, Batley, West Yorkshire WF17 9QF
The manufacturer reserves the right due to continuous development to change specifications without notice
Tel: 01924 420029 Fax: 0870 7062353 e-mail:
www.springwellmicro.co.uk
Producer registration number WEE/DB0002ZR
sf4minsv1.2.odt
Guarantee
sales@springwellmicro.co.uk
SPRINGWELL SMARTFLUSH SF4M FITTING INSTRUCTIONS
Pack contains: sensing/control unit for 230V power; low-voltage latching valve (as supplied could be
open or closed), assembled valve cable with gland and connector; clips, screws, wallplugs.
How Smartflush works
Smartflush stands by until movement is detected, then waits before filling and flushing the cistern

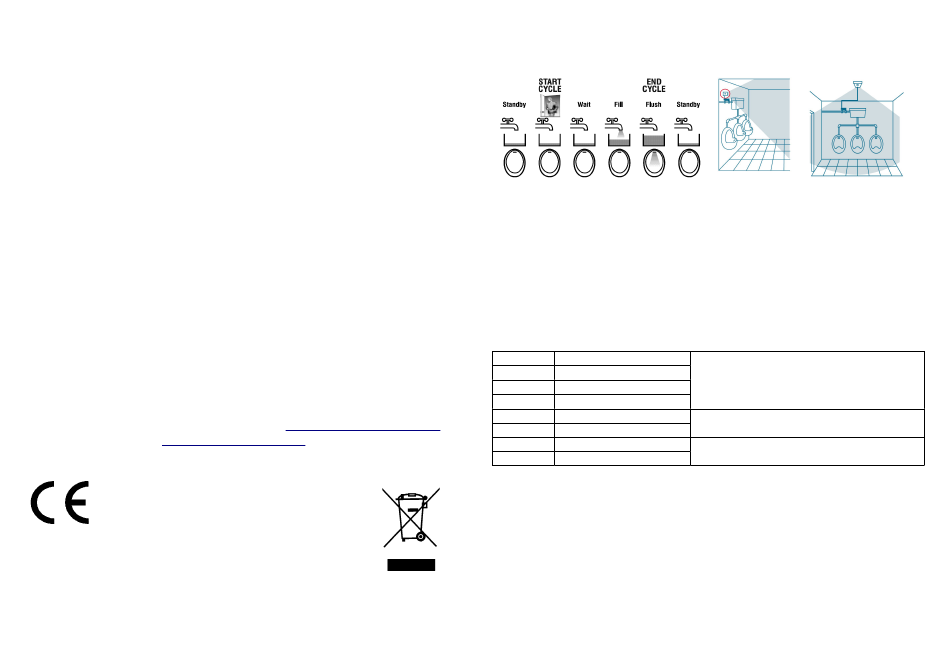

Cycle of operation
Installation
THIS UNIT MUST BE FITTED ONLY BY A COMPETENT ELECTRICIAN
1) Fit back box of control unit on the wall or ceiling where it can be seen.
2) Fit valve : Ensure that there is an isolating valve in the feed to the new valve (to comply with
water regulations). Isolate water supply. Cut out 30mm of pipe feeding cistern and fit valve, with coil
not below centre line of pipe. Direction is IMPORTANT; Valve is marked 'IN' for inlet. Fully open
any existing trickle cock except for very hard water, when a partly open cock avoids excessive wear.
3) Fit cable and gland to box. (If too short, replace with longer similar cable, polarity important).
4) Set internal switches 1 and 2 which adjust the cycle time, i.e. the time from detection to end of
flush. (see diagram above) and ensure switch 3 is on.
1 Off & 2 off = 20 minute cycle
1 On & 2 off = 30 minute cycle (default)
1 Off & 2 on = 40 minute cycle
1 On & 2 on = 60 minute cycle
3 Off = disable manual flush button
3 On = enable manual flush button
4 Off = standard sensitivity detector
4 On = low sensitivity detector
5) Use 3-core flex to connect via a 1A fused spur to connections marked N (neutral), E (earth) and
L (live). Seal entry hole with a cable gland so that the unit is watertight. Plug in valve. Power on;
the red light on the power board should light. Press manual flush button a few times to confirm
operation of the valve, sharp click with red flash in the lens for "on", dull click with no flash for "off".
Leave valve closed. N.B. As supplied, the valve might be latched open or closed, this is normal.
6) Turn on water with isolating valve fully open. Smartflush is factory pre-set to activate a
maintenance flush at 12 hour intervals if no-one is seen. Go to step 7 if this setting is okay.
Switch off switch 3. Hold down internal
SET
then release SET button. The red light flashes every 2 seconds; the number of flashes shows the
maintenance flush setting. Each press of the
1 flash = No maintenance flush
2 flashes = 8 hour interval
3 flashes = 12 hour interval, (factory setting)
4 flashes = 24 hour interval
When desired setting is shown, press Manual Flush
Wall mounted
Ceiling mounted sensor
sensor
Switch settings
The cycle time should be set taking into account
customer requirements and water regulations on the
amount of water used. A 30 minute cycle caters for
most users; 20 minutes recommended for schools
and hospitals.
manual flush button is hidden below the dolphin's tail
on the front of the unit. (see diagram overleaf)
Switch on to reduce movement detection range and
sensitivity. Recommended if scent spray is nearby.
button, tap the external hidden Manual Flush
button changes to the next setting, as follows :-
SET
button to save setting. Switch on switch 3.
button,
