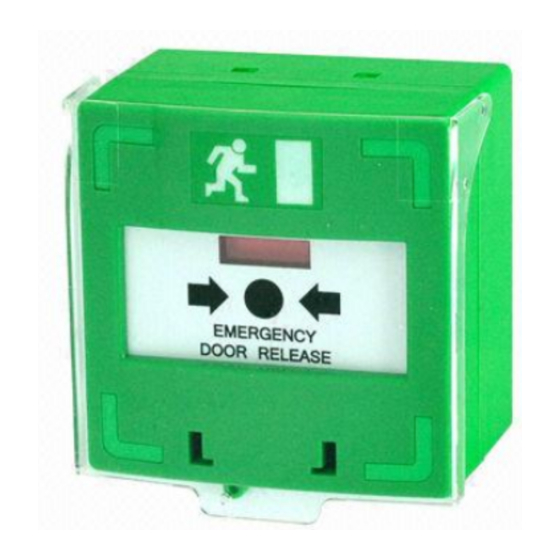

elock EL-MCP110 Manual

Resettable Call Point

Features :

 Resettable design. EL-MCP110 obvious indicators around the edges of
the unit.
 Press the pressing plate to enable the output function.
 Pressing plate with status (green and red) shown.
 Reversionary key with non-slip design.
 Built-in buzzer status.
 Input power range from DC12-24V to connect with all types of fire
alarm system.
 Easy to assemble, outer case without screws, 3 set of output points to
connect other equipment, embedded or surface installations to select.

Specification

 Power Supply : DC 12V ~ DC 24V
 Operation Current :
DC 12V : 18mA (Standby) / 75mA (Operation)
DC 24V : 11mA (Standby) / 41mA (Operation)
 Buzzer : Set as silent, interval wailing or continuous wailing
 Indicator :
Dual color (Red and Green)
Red indicator to set blinking, off or on
 Output : N.O / N.C / COM (maximum load 125V/3A)
 Material : ABS, PC
 Dimension : 90L x 93W x 45H (mm)
 Weight : 208g (including wrapping)
EL-MCP110
