Gatorback Mudflaps GB 755007 Mounting Diagram & Instructions

Rear mount bracket

Hide thumbs

The manufacturer is not responsible for negligent use of vehicle with mud flaps installed, including

over-tightening of screws and bolts causing damage to vehicle or mud flaps.

TOOLS REQUIRED:

½" or 3/8" drill

#2 Phillips

screwdriver

BRACKETS:

(1)Mount Bracket,

Rear, LH

Part #755129

PARTS BAG #755137

a) (4) Machine Screw

#10-24x1"

Part #012022

e) (4) Flat Washer

0.281 x 1"

Part #018028

i) (6) Nylock Nut

#8-32

Part #025005

INSTALLATION

For ease of installation, it is suggested that the wheel be removed.

Fasten the LH mount bracket to the left hand flap with 3 machine screws / small washers and nylock

nuts to Holes #1, #2 and #3 or if you prefer the flap mounted higher and farther away from the ground

then use Holes #4, #5 and #6. See Diagram #1.

2. Bolt the LH bracket to the LH mount bracket of the LH mud flap assembly on holes #9 and #10

with machine screws/half washers/ washers/lock washers/hex nuts. (See Diagram #2.) Loosely

secure at this point.

Push the flap up against the wheel well and raise the flap assembly until the LH bracket is up

against the bottom of the truck box frame. See Diagram #2.

Fasten the flap with 2 TEK screws and 2 flat washers on holes #7 and #8. Loosely secure

at this point. It is a good idea at this time to temporarily reinstall the tire in order to square the flap.

Push the LH bracket toward the back until the flap is parallel to the tire and then drill two 1/8" pilot

holes from the center of the slotted holes on the LH bracket through the box flange and tighten

with #10 TEK screws and half washers. Tighten remaining screws.

3/8" socket driver

5/16" wrench

& 5/16" socket driver

or socket wrench

(1)Mount Bracket

Rear, RH

Part #755130

b) (4) TEK Screw

¼ x1 ¼

Part #010011

f) (4) Flat Washer

0.203 x 1"

Part #018031

j) (4) Hex Nut

Part #025003



Check all fasteners for tightness. Repeat procedure on the other side.

1999 – 2016, Ford Super Duty

Mounting Diagram & Instructions

IMPORTANT:

1/8" drill bit

(1) LH Bracket

Part #750136

c) (4) TEK Screw

#10 x 1"

Part #010009

g) (8) Half Washer

0.203 x 1"

Part # 018032

k) (4) Lock Washer

#10

Part #024001

Rear Mount Bracket

GB 755007

Clamp

11/32" wrench

or socket wrench

(1) RH Bracket

Part #750137

d) (6) Machine Screw

#8-32 x 7/8"

Part #012025

h) (6) Flat Washer

0.188" x 0.781"

Part #018018

NYLOCK NUT

FLAT WASHER

#8-32

0.188"X0.781"

3/8" wrench

or socket wrench

MACHINE SCREW

#8-32 X 7/8"

Diagram #1

Table of Contents

Need help?

Do you have a question about the GB 755007 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gatorback Mudflaps GB 755007

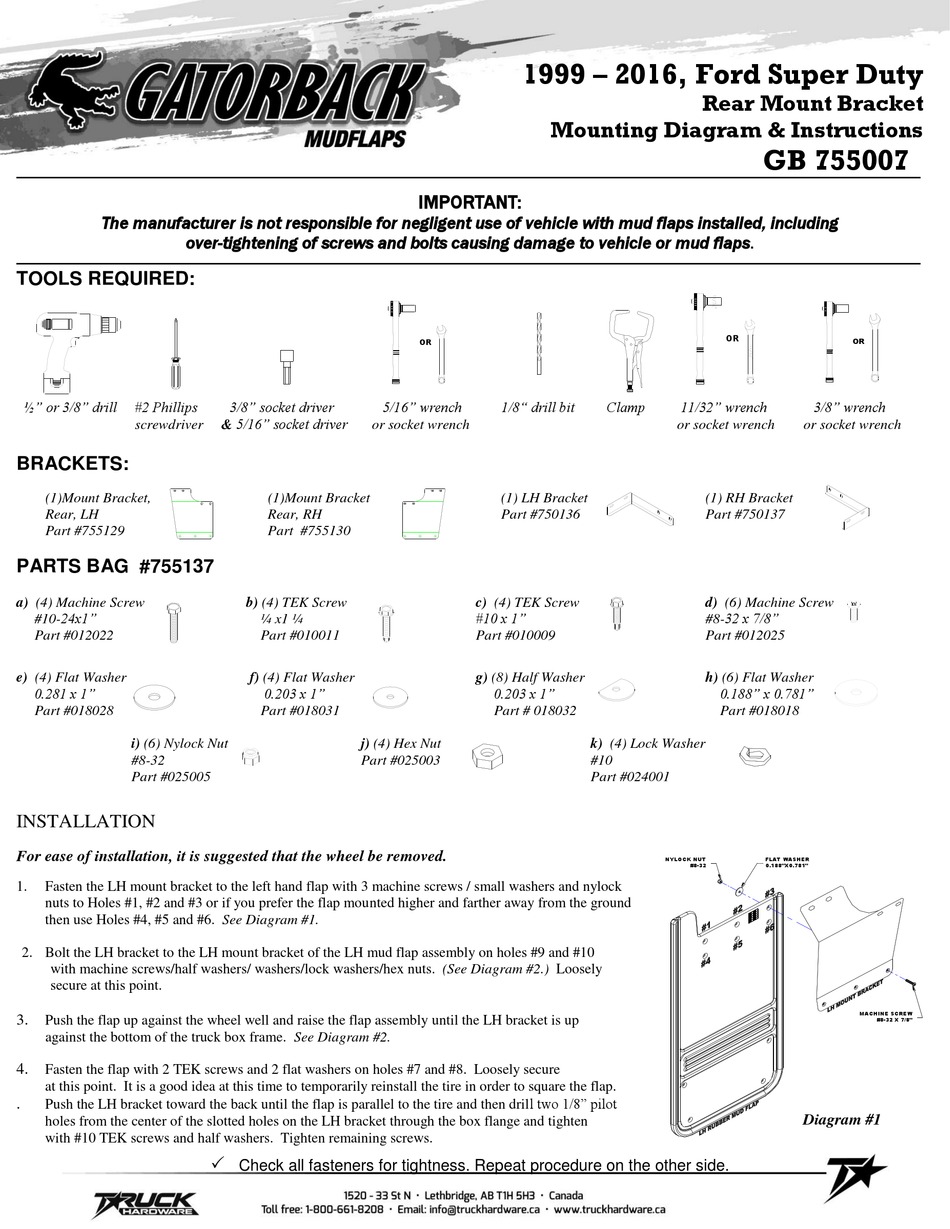

Page 1 1999 – 2016, Ford Super Duty Rear Mount Bracket Mounting Diagram & Instructions GB 755007 IMPORTANT: The manufacturer is not responsible for negligent use of vehicle with mud flaps installed, including over-tightening of screws and bolts causing damage to vehicle or mud flaps.
Page 2 TEK SCREW, #10 X 1" WHEEL WELL LOCK WASHER, #10 WASHER, 0.203" X 1" BRACKET TEK SCREW FLAT WASHER #10 X 1" 0.281"X1" MACHINE SCREW HALF WASHER TEK SCREW #10 X 1" 0.203" X 1" 1/4" X 1-1/4" PLEASE NOTE: These instructions are for the installation of the bracket only.
