Summary of Contents for Meriva MX3

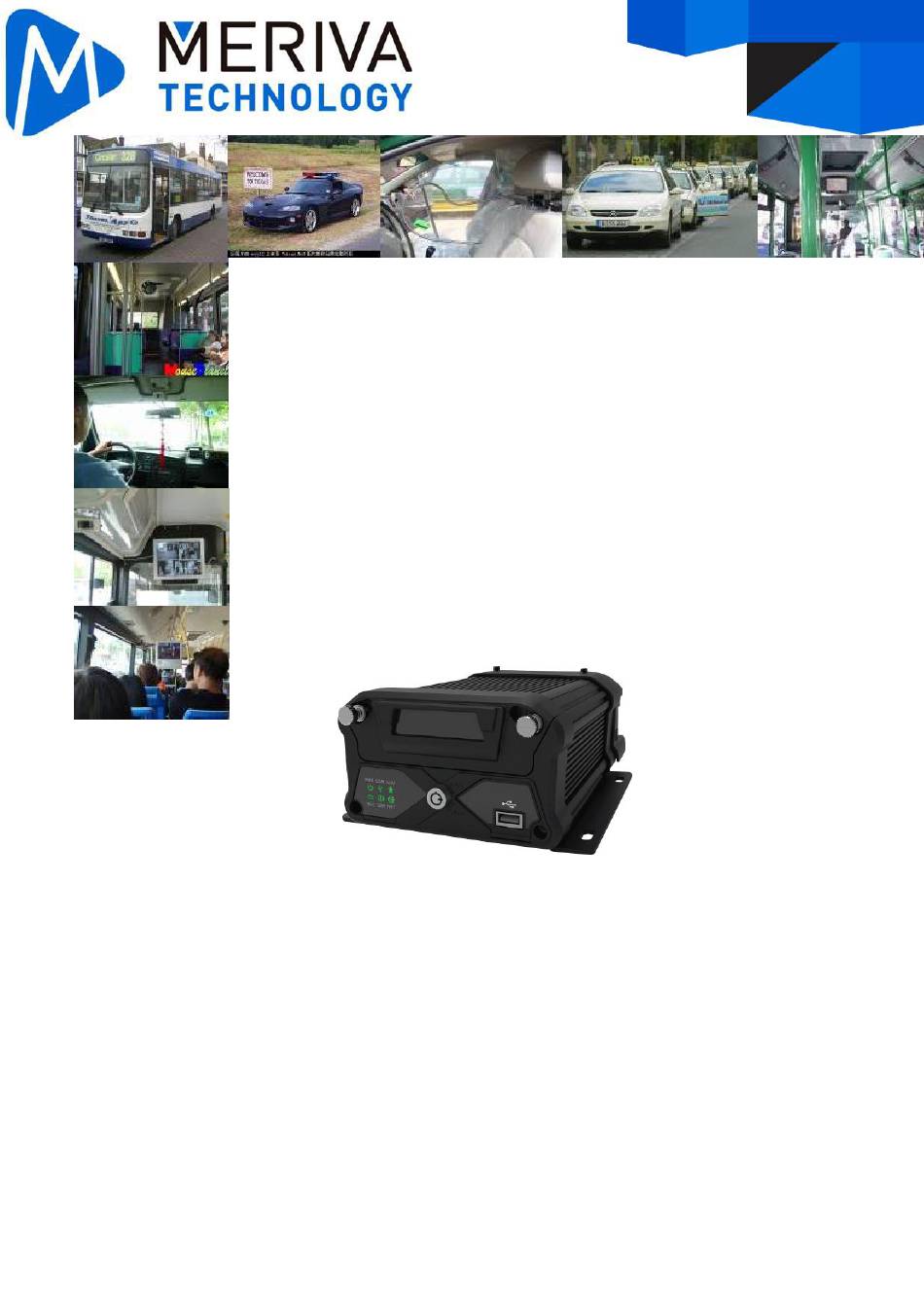

- Page 1 User Manual MX3 MDVR Mobile Digital Video Recorder...
- Page 2 Copyright Under copyright laws, the content of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine- readable form, in whole or in part, without prior written consent of Meriva.
-
Page 3: Guarantee & Warnings
Guarantee & Warnings 1) Electrical Apparatus Safety All installation and operation should comply with local electrical safety norms. 2) Transportation In the process of transportation, storage and installation, please avoid heavy stress, violent vibration, impact and water splashing. 3) Installation Install the equipment in accordance with the requirements, handle carefully. -
Page 4: Product Characteristics
1. Product Characteristics 1.1. Overview MX3 is a functional Mobile Digital Video Recorder specially designed for vehicle video surveillance and remote monitoring. It has a high-speed processor and embedded operating system, combining with the most advanced H.265 video compression / decompression technology, 3G/4G network, GPS positioning technology, as well as WIFI. - Page 5 Vide H.264/H.265 Video/Audio Compression Audi ADPCM, G.711A G.711U PAL: 1080P(1920X1080), 720P(1280X720), WD1(928X576), WHD1(928X288), WCIF(464X288), D1(704X576), HD1(704x288), CIF(352x288) NTSC: Image Resolution 1080P(1920X1080), 720P(1280X720), WD1(928X480), Recording WHD1(928X240), WCIF(464X240), D1(704x480), HD1(704x240),CIF(352x240); Digital: 1080P(1920X1080), 720P(1280X720) Image Quality 8 Levels adjustable (Level 1 is the best) Recording Mode Boots up/schedule/alarm event recording Pre-recording...
-
Page 6: System Diagram
Intercommunication 1 MIC port(CP4) Input DC 8~36V Output 5V@500mA & 12V@500mA Max Power Power 6.75W (not include cameras, screen and HDD) Consumption Standby Power ≈0W Consumption Physical Dimension(mm) 252x167.2x88.7 (with bracket and rear shield) characteristics Weight(KG) 2.2KG (not include HDD) -40℃... -
Page 7: External Interface
1.4. External interface Dimension (Unit: mm) Front panel... - Page 8 Rear panel Serial No. Print Description A/V IN1~6 Analog audio/video input 1~6 VGA video interface 100Mbps network interface USB 2.0 interface (Type B) 3G/4G antenna interface GPS antenna interface WIFI antenna interface Sensor&Serial Sensor & serial interface Serial Serial interface Panel Control panel interface(CP4) Power...
-
Page 9: Hard Disk Installation
1.5. Hard disk installation The procedure to install the hard disk of 9.5mm/7.5mm The procedure to install the hard disk of 15mm To install the hard disk of 15mm, user needs to disassemble the brackets, and then insert it. - Page 10 1.6. Definition and pictures of external cables Alarm cable definition Serial port definition...
- Page 11 2. FAQ The system can’t start? Usually this problem results from the incorrect power connection. Please follow below steps to check the power connection: Check the input power, whether the power wire is connected correctly, whether the ground wire is connected back to the battery, and whether the fuse on the power wire is in good condition.
