Trine 206-3 Instruction Sheet

FEATURES:
• Transmitter
communicates with the
chime wirelessly.
• Can be used with swinging
or sliding doors
• Chime plugs into a
standard electric outlet
• Includes a Door Magnet
Spacer and all the
mounting screws
Installation:
• Transmitter range: 100'
• Three High Quality Chime

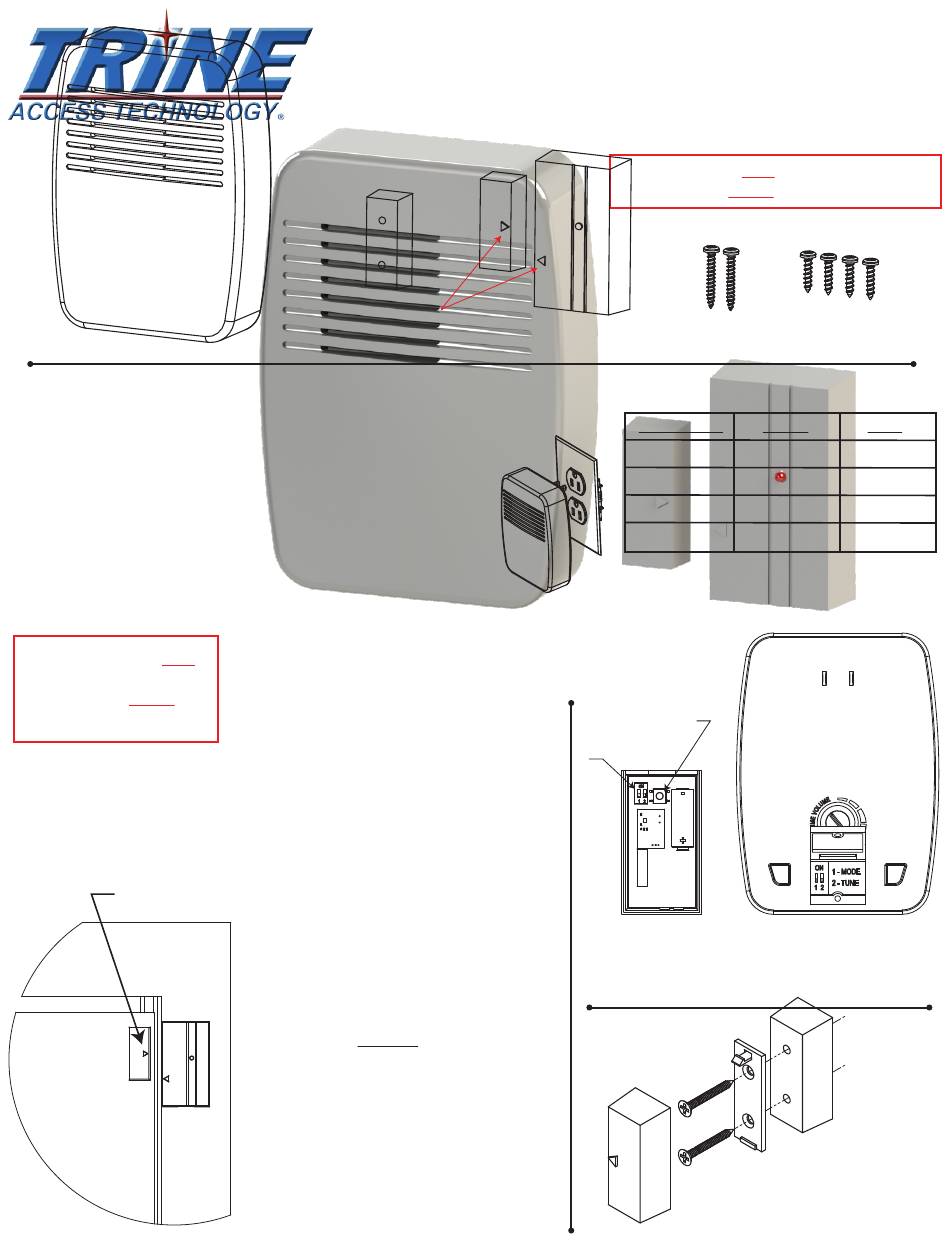

1. Plug the chime on an electric outlet within the
tunes
range of the transmitter. It will take 30 seconds for
• (1) 12V A23 Battery is
the electronics to initialize.
included
2. Take off the back cover of the transmitter unit to
find the programming switches.
V. 16.0504
3. After the chime initializes, push the "Test Button"
NOTE: This unit is NOT
on the transmitter for 20 seconds so the chime can
compatible with 206-3
pair with the transmitter.
units sold before
December, 2014
Note:
For swinging doors
A "Ding-Dong" sound from the chime indicates that
align the transmitter
the transmitter has been successfully mated with the
arrow to the bottom chime.
of the magnet
A single "Ding" from the chime indicates that the
as shown.
transmitter memory was erased.
4. Select the desired chime sound. See the selection
chart for the dip switch combinations.
5. Mount the transmitter unit on to the door frame.
6. ** Align the door magnet with the transmitter -
see door positioning above**
spacer if the door is recessed too far from the frame.
7. Test the completed installation. Refer to the trou-
bleshooting section if the installation does not work.
Chime
(Plug in)
Magnet
Spacer
**Note: Arrows do not line up**
**Position as shown**
Troubleshooting
A. Problem
: Chime does not ring one time
and stop.
1a. Possible Cause: Sensor battery is not
installed properly.
1b. Fix: Make sure battery is installed
according to the diagram inside sensor.
2a. Possible Cause: Sensor battery is dead.
2b. Fix: Replace sensor battery.
3a. Possible Cause: Chime is not receiving
power
3b. Fix: Make sure the plug-in chime has
power
4a. Possible Cause: Sensor & Chime are not
synced
4b. Fix: Re-try syncing process
- Unplug chime
- Ensure switch 1 on both chime and
sensor is set to OFF
- Wait 30 Seconds
- Press and hold the "TEST" button
Use the door magnet
inside the sensor within 20 seconds after
plugging in chime. When the "Ding-dong"
tune is played, the sensor is synced with
the chime.

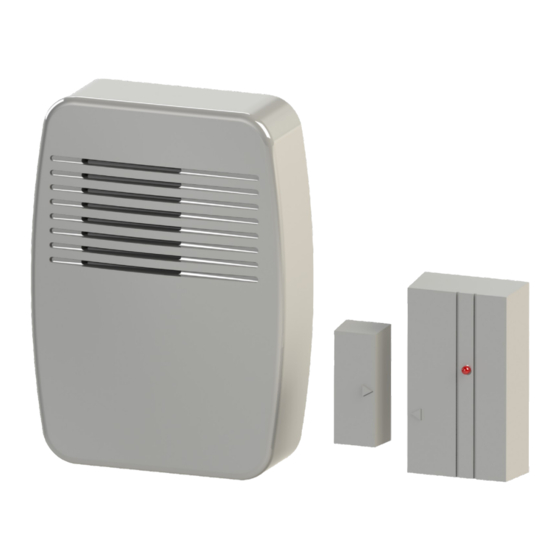

206-3 -- Wireless
What's Included:
Entry/Exit Signal Kit
Wireless
Instruction Sheet
Door
Transmitter
Magnet
NOTE: This unit is NOT compatible with 206-3
2 PARKLAWN DR. STE F, BETHEL, CT 06801
B. Problem
Transmitter
does not work after installation.
Dip Switch 1a. Possible Cause: Chime or Transmitter is
mounted on metal or near metal studs.
(metal reduces range of unit)
1b. Fix: Use a 1/4" to 1/2" wooden shim to to
move Transmitter away from metal surface.
Move Chime to another wall outlet.
2a. Possible Cause: Chime or Transmitter is
mounted near concrete. (concrete reduces
range of unit)
2b. Fix: Move away from concrete
Transmitter
3a. Possible Cause: Chime & Transmitter are
installed too far apart (over 100 feet)
3b. Fix: relocate pieces closer to one another.
C. Problem
Door
1. Possible Cause: Chime or Transmitter is
Magnet
receiving interference
2. Fix: Follow A. Problem - 4b. Fix to Unsync the
unit
Resync the units
Transmitter to another location to reduce
interference.
Spacer Transmitter
units sold before December, 2014
Mounting & Trigger
Screws Screws
PHONE: (203) 730-1756
FAX: (203) 730-1781
customerservice@trineonline.com
www.trineonline.com
