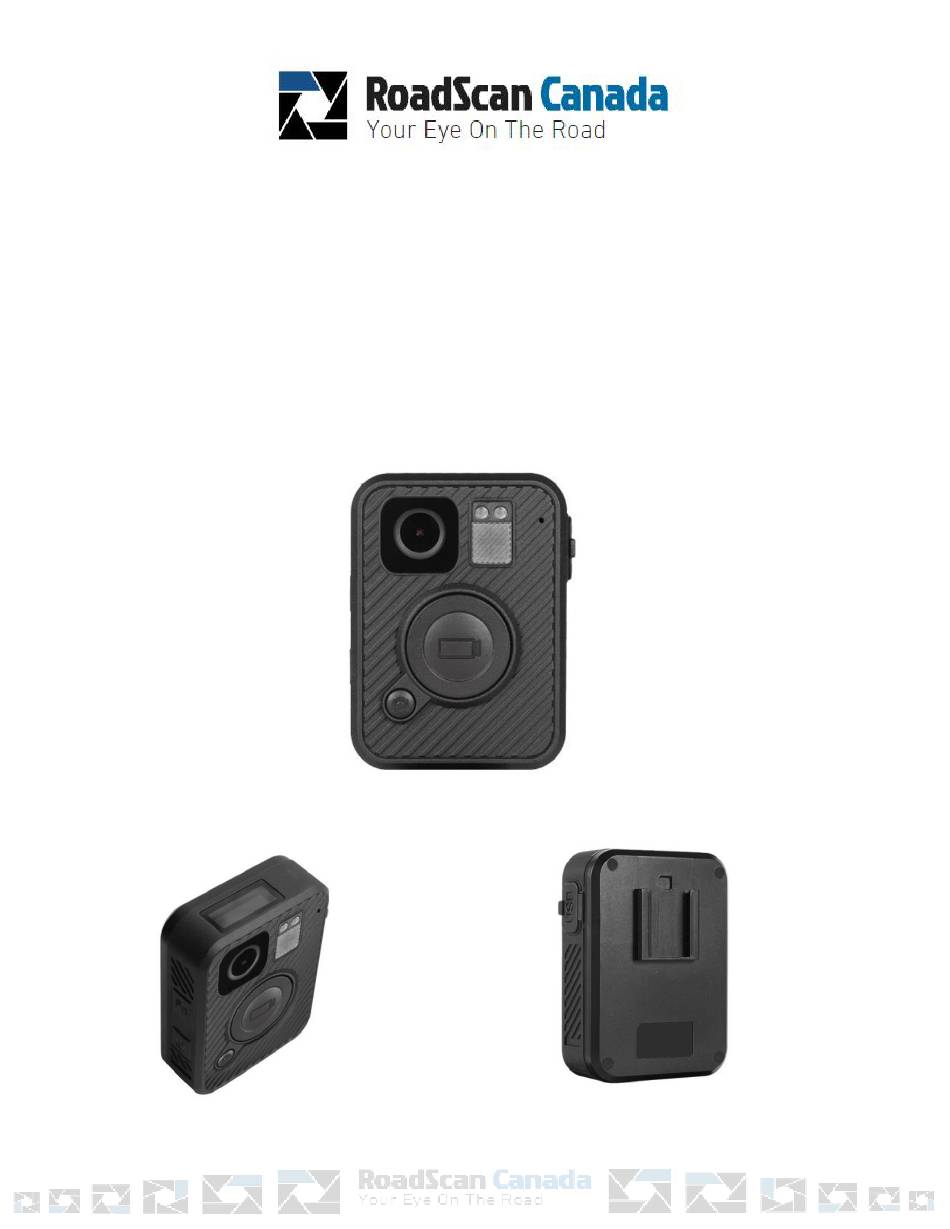

- Page 1 RoadScan Canada BH190 USER INSTRUCTION MANUAL...

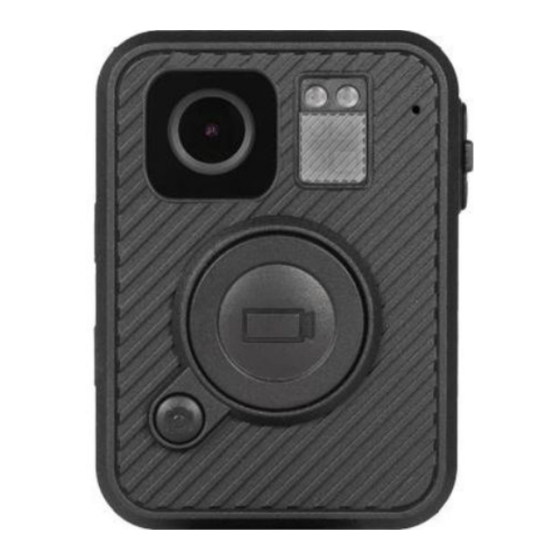

- Page 2 INTRODUCTION Product Overview Thank you for choosing the BH190. This compact, sturdy, lightweight Full HD resolution camera is easy to use with simple functions (i.e. no rear viewing screen) and one push record capability. It is very user friendly and an excellent choice for any industry.
-
Page 3: Camera Orientation
CAMERA ORIENTATION ITEM DESCRIPTION 1.LCD Screen Shows the battery life, storage, GPS, Wifi, mute, Infrared, video recording status; press the power button to turn the LCD on/off 2.Charging Dock Connector Connect charging dock for charging or connecting to PC 3. Camera lens Full High Definition camera 4. - Page 4 seconds to turn the Wifi on/off c) double click (press 2 times in 1 second) to enable/disable the video mute. When video mute us turned on, recorded video will have no audio turned on, only video 12. Power Button Hold for 3 seconds to turn the camera on or off BASIC OPERATIONS DESCRIPTION 1.
- Page 5 8. Video Mute - P ress the FN button twice in one second (double click) to enable the video mute function, when MUTE is on, the recorded video won’t have audio. When mute is enabled, the camera will beep once, when mute is disabled the camera will beep twice. 9.
- Page 6 GPS Player INSTRUCTIONS Please contact Lee at l ee@roadscancanada.ca to get the .exe file for the gps player. Alternatively, any gps player will suffice. Some firewalls may be installed on your company’s system, please contact your IT personnel to assist with downloading of any software. Page 5...
-
Page 7: Camera Settings
CAMERA SETTINGS 1. Install the disc and open a uto driver installation.exe f ile to install the drivere. 2. Install B odyWornCamera.exe. onto your computer. 3. Connect the camera to the computer and run B odyWornCamera.exe a. - Page 8 CAMERA SETTINGS 5. Enter the password and connect the device, then click ‘ login’. a. Default password is 000000 (6 zeros) 6. To synchronize the date and time: click ‘get’ then ‘ set’ 7. Changing the Device or Police ID: enter Device/Police ID and click ‘ set’ 8.
- Page 9 CAMERA SETTINGS After making the options in other settings, click ‘ set and return’ to go back to the previous interface. Once successful, a warning pop-up window will be displayed advising of the updates being successful. After returning to the main page, click ‘ Enter U disk’ mode to open the camera in the computers access drive (E,F,G etc).
-
Page 10: Lcd Screen
LCD SCREEN After the camera is powered on, the LCD will turn on. The LCD screen will stay lit for 1 minute and automatically turn off. Press the power button to turn on/off the LCD screen. When the camera goes to covert mode, the LCD screen will go off, once the covert mode is disabled, the LCD screen will turn on again. - Page 11 Mute icon: when the camera mute function has been turned on, the mute icon will be displayed in the upper right corner beside the IR icon. GPS icon: when the gps is turned on the gps icon will appear in the upper middle portion of the LCD screen.
- Page 12 Resolution icon: the resolution icon shows which resolution has been selected. Options are 1440p, 1080p and 720p. Video recording icon: when a video recording starts, the red dot will start flashing. When the camera is in standby mode the red dot will be a solid red. Recording time: indicates how much video has been recorded.
- Page 13 • Please use the BH190 responsibly while operating a vehicle. • Please do not operate the functions of RS2000 while operating a vehicle. • RoadScan Canada Inc shall not be held responsible for any traffic violations related to the positioning or improper use of the BH190.
- Page 14 ● DO NOT use this product to carry out any illegal activities such as sneak preview, etc. RoadScan Canada Inc shall not be responsible for any consequences of illegal conducts made by users.
-
Page 15: Warranty
WARRANTY RoadScan Canada Inc provides a limited time warranty for this product free from defects in title, materials and manufacturing workmanship for one year or otherwise specified on the product packaging. This limited warranty shall commence from the date of purchase. RoadScan Canada Inc products warranty is not transferable and is limited to the original purchaser. - Page 16 CONTENTS Page 15...
