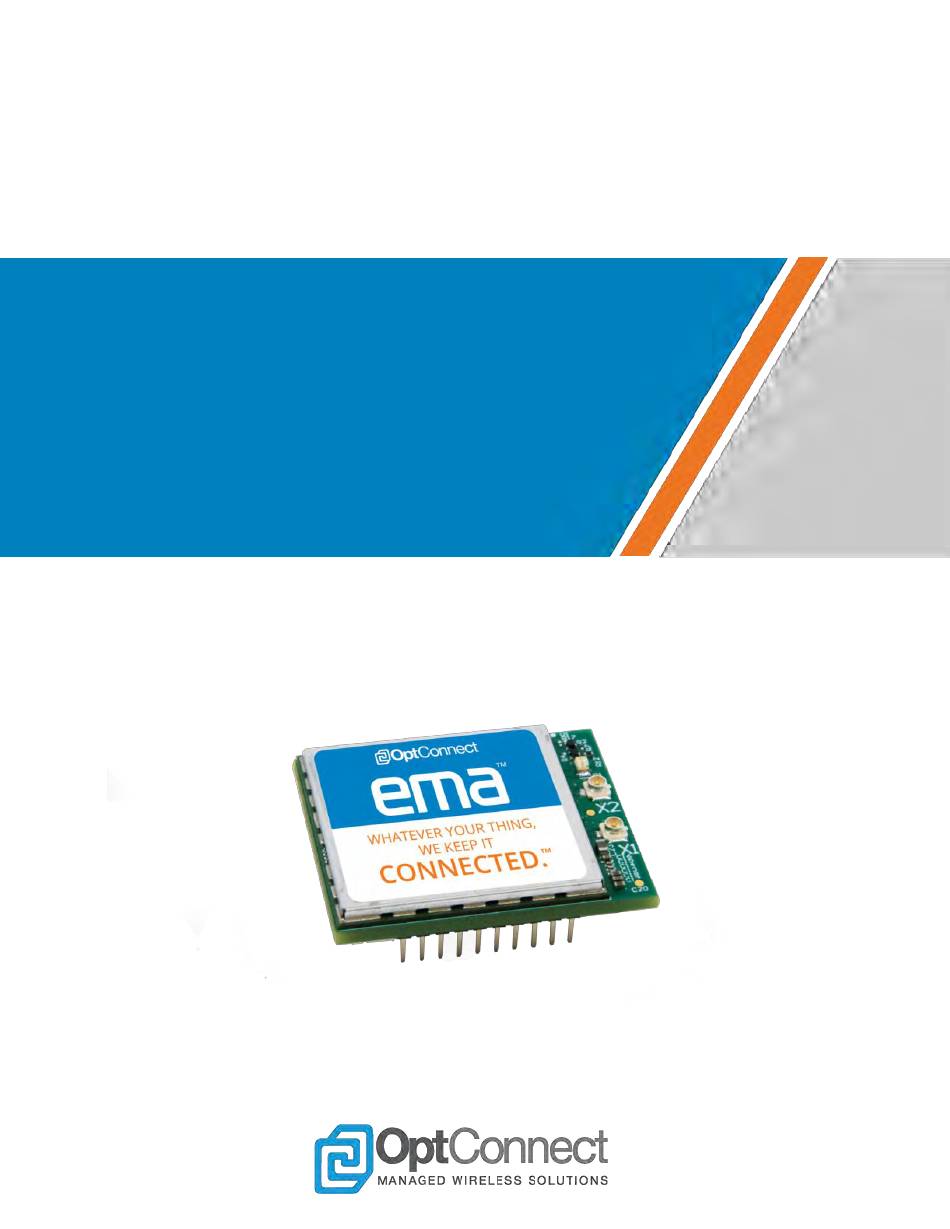

- Page 1 OptConnect ema™ Hardware Guide V1.1 Updated: September 2019...
- Page 2 © OptConnect Management, LLC 2019. All rights reserved. OptConnect Management, LLC provides this documentation in support of its products for the internal use of its current and prospective customers. The publication of this document does not create any other right or license in any party to use any content contained in or referred to in this document and any modification or redistribution of this document is not permitted.
-
Page 3: Table Of Contents
2.3.5 Design Considerations Power Supply Requirements Power Supply Design Guidelines 3.1.1 Serial Communications OptConnect ema™ Management UART 3.2.1 OptConnect ema™ Modem UART Interface 3.2.2 USB Interface 3.2.3 VREF Power Control © OptConnect Management, LLC 2019. All rights reserved. Revision 1.1... - Page 4 Carrier Specific Certifications Export Control Classification Number (ECCN) Harmonized Tariff Schedule Code RoHS Compliance Interference Statement FCC & IC Compliance Wireless Notice Modification Statement End Product Labeling Requirements Revision History © OptConnect Management, LLC 2019. All rights reserved. Revision 1.1...
-
Page 5: Introduction
United States B12, B13 Verizon Unless instructed otherwise EMA-L4-1-XX-A-A will utilize AT&T as the primary carrier and Verizon as the secondary carrier. Unless instructed otherwise, EMA-L4-1-US-B-A will utilize Verizon as the primary carrier and AT&T as the secondary carrier. Orderable... -
Page 6: Product Overview
Fast fulfillment ⚫ OptConnect ema™ is fully certified as an end user modem and eliminates the need for a customer’s host board and equipment to be certified by carriers. By using the OptConnect ema™ modem, customers can introduce new board designs as often as necessary and never have to send their designs through a time consuming and costly certification process. -
Page 7: Block Diagram
Block Diagram © OptConnect Management, LLC 2019. All rights reserved. Revision 1.1... -
Page 8: Technical Specifications
Tested at: 3.8V Time elapsed: 300 s 16.259 16.259 16.259 Test: Module powered off with AT#SHDN. 1. The measurements presented here were taken from Engineering Samples and are subject to change. © OptConnect Management, LLC 2019. All rights reserved. Revision 1.1... -
Page 9: Module Pinout For Connectors J1 And J2
2.1.3 Module Pinout for Connectors J1 and J2 The following table details the pinout of the OptConnect ema™ modem and lists the recommended ratings for the modem interface on connectors J1 and J2. More details and design requirements for these pins are documented in Section 3. - Page 10 (J2-1) 0.60V “Clear to Send” Output hardware flow control (J2-2) output. VREF x VREF 0.60V Status pin. High when STATUS Output modem is ready for (J2-3) use. VREF x VREF © OptConnect Management, LLC 2019. All rights reserved. Revision 1.1...
- Page 11 2.3V to 2.7V 0.7V 1.7V (J2-8) serial data input signal. 3.0V to 3.6V 0.8V VREF x VREF x 4.5V to 5.5V 0.3V “Ring Indicator” RING_IND Output 0.60V (J2-9) output pin. © OptConnect Management, LLC 2019. All rights reserved. Revision 1.1...
-
Page 12: Module Pinout For Connectors
Input Internally pulled up to (J2-10) 1.8V. 1.30V 1.8V Additional information on OptConnect ema™ pinout is available in Section 3. 2.1.4 Module Pinout for Connectors J3, X1, X2 Connector Designator Description Connector Location Dual Micro SIM Connector Bottom Side of Modem... -
Page 13: Rx Sensitivity
Actual network speeds will depend on local network conditions Mechanical Characteristics 2.3.1 Mechanical Specifications Parameter Typical Unit 29.00 x 33.78 x 10.67 Dimensions 1.14 x 1.33 x 0.42 inches Grams Weight Socket Insertion/Removal hundreds Cycles © OptConnect Management, LLC 2019. All rights reserved. Revision 1.1... -
Page 14: Mating Connectors
Manufacturer Populated on ema Mate Manufacturer Designator Mate 950510-6102-AR J1, J2 951110-2530-AR-PR Acceptable alternate: Sullins Connector NPPN101BFCN-RC Solutions X1, X2 Hirose U.FL-R-SMT(10) CAB.011 Taoglas 2.3.3 Mechanical Drawings 2.3.3.1 Modem Dimensions © OptConnect Management, LLC 2019. All rights reserved. Revision 1.1... -
Page 15: Sim Card Rib Drawings
OptConnect ema™ modem into their system. OptConnect offers reference schematics and PCB layout designs, and can review designs for customers integrating an OptConnect ema™ modem into their system. For more details please reach out to OptConnect’s product support team at 1.877.678.3343. -
Page 16: Power Supply Requirements
LTE modem without falling outside of the operating voltage range. 3.1.1 Power Supply Design Guidelines When designing the power supply for an OptConnect ema™ modem it is recommended to adhere to the following design guidelines: For most applications, a switching power supply is recommended to supply power to the modem. -
Page 17: Serial Communications
Serial Communications OptConnect ema™ modems have two UART interfaces; one for the modem and one for the OptConnect ema™ management Microcontroller Unit (MCU). OptConnect ema™ modems also support a USB connection. Customers integrating the OptConnect ema™ modem are required to connect to the OptConnect ema™... -
Page 18: Optconnect Ema™ Modem Uart Interface
UART interface connect the RTS/CTS flow control lines to the host and enable them in their application. 3.2.3 USB Interface The OptConnect ema™ modem also supports a USB 2.0 interface on Pins 6 (VUSB), 7 (USB_P), and 8 (USB_N) which connects into the cellular module on the modem. Monitoring of the OptConnect ema™... -
Page 19: Power Control
Do not drive this signal high or apply a pull up resistor. When the nRESET_REQUEST signal is detected by the OptConnect ema™ Management MCU, it will attempt to properly reset the modem with a controlled shutdown. If that fails it will unconditionally shutdown the modem. -
Page 20: Firmware Updates Over The Air (Fota)
OptConnect ema™ Management MCU using microFOTA. When a FOTA update is triggered, the modem will output FOTA specific URC’s over the OptConnect ema™ Management UART interface to notify the host system that FOTA is in progress. When a FOTA update is in progress the host system must keep the modem powered and connected until the process is complete. -
Page 21: Diversity Antenna Requirements
Depending on the frequency band(s) provided by the network operator, the customer shall use the most suitable antenna for that/those band(s): Available Cellular Technologies and Required Diversity Antenna Bandwidth LTE FDD B2 60 MHz LTE FDD B4 45 MHz LTE FDD B5 25 MHz © OptConnect Management, LLC 2019. All rights reserved. Revision 1.1... -
Page 22: Antenna Placement
1. Limit to obtain maximum sensitivity 3.7.3 Antenna Placement The OptConnect ema™ modem’s cellular antenna placement will directly affect the modem’s performance. It is vital that system designers carefully consider the placement of the antenna and follow all of the guidelines and specifications set by the antenna manufacturer. -
Page 23: Reference Designs
(SIM card is removed, antenna is disconnected, signal quality is poor, etc.), the modem will attempt to reconnect. If it is not able to reconnect, it will issue a URC on the OptConnect ema™ Management UART interface notifying the user that it will shortly disable communications and attempt to regain the network connection. -
Page 24: Mounting Guidelines
5.0 may require the need to mechanically secure the modem and its SIM card(s) in order to prevent the modem from vibrating out of the mating connectors. OptConnect ema™ modems do not have any dedicated attachment points for securing to the host board, however it can easily be... -
Page 25: Solder To Board Connection
Solder to Board Connection Alternatively, OptConnect ema™ can be soldered directly to a host PCB. The PCB should be designed with two rows of ten 0.8mm plated through holes spaced 2mm apart. The two rows should be 22 mm apart. -
Page 26: Regulatory Information
ECCN for OptConnect ema™ modems: 5A992.c Harmonized Tariff Schedule Code HTS Code: 8517.62.0010 RoHS Compliance OptConnect ema™ modems comply with the RoHS (Restriction of Hazardous Substances) directive of the European Union, EU Directive 2011/65/EU. © OptConnect Management, LLC 2019. All rights reserved. Revision 1.1... -
Page 27: Interference Statement
Should the modems antenna be mounted closer than 20cm from the human body or if there are adjacent transmitters, additional FCC/IC testing may be required for the end product. OptConnect ema™ modems make use of the on-board Telit LE910-V2 NA module’s FCC & IC identification numbers. -
Page 28: Modification Statement
Modification Statement OptConnect has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authorization to operate the equipment. End Product Labeling Requirements End products utilizing EMA-L4-1-XX-A-A modems should be labeled with the following information:... -
Page 29: Revision History
7. Revision History Revision Date Description Author 6/4/2019 Initial Release Simplified Table of Contents, removed reference to whitepaper(sec 9/9/2019 3.1), 115200->19200(3.2.1), Moved nRESET_REQUEST info to Power Control section 3.4, Re-worded various sections. © OptConnect Management, LLC 2019. All rights reserved. Revision 1.1...
