Installation/Instalação
01836
00376*
00387
01879
02273
01
Driver
04
Motor
Pressure lter
02
Proportional Valve
Filtro de Pressão
05
Válvula Proporcional
Remote Control
Controle Remoto
03
Battery (12V)
Retention valve
Bateria (12V)
Válvula de Retenção
Implement/Implemento
Fertilization/Fertilização
Fertilização
Fix Rate/Taxa Fixa
00376*
06
and/e
Speed sensor
Sensor de velocidade
Hydraulic Circuit
Circuito Hidraúlico
Electric Circuit
Circuito Elétrico
*Optional/Opcional
Variable Rate/Taxa Variável
Map Fix Rate/Taxa Fixa com mapa
Motor Actuator/Acionamento de motores
Setpoint 1
Setpoint 2
Perform this test to check the operation of the machine in static mode.
Realize esse teste para veri car o funciomanto da máquina em modo estático.
Fertilizer Calibration/Calibração Insumo
Setpoint 1
Setpoint 2
Total Dosage (ton):164,50
Setpoint 1
Setpoint 2
Insert the map minimum and maximum dosage.
Insira a dosagem mínima e máxima do mapa.
Advertisement
Table of Contents
Related Manuals for Hexagon AgrOn
Summary of Contents for Hexagon AgrOn

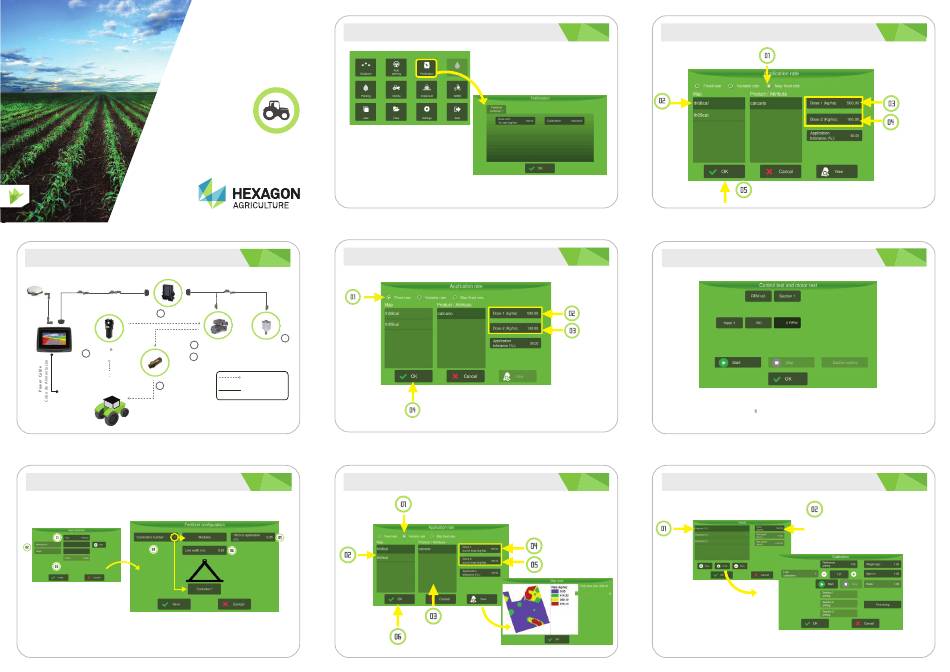

- Page 1 Fertilization Fertilization/Fertilização Map Fix Rate/Taxa Fixa com mapa Fertilização Setpoint 1 Setpoint 2 Fix Rate/Taxa Fixa Installation/Instalação Motor Actuator/Acionamento de motores 01836 00376* 00387 01879 00376* 02273 Setpoint 1 Driver Setpoint 2 Motor and/e Speed sensor Pressure lter Sensor de velocidade Proportional Valve Filtro de Pressão Válvula Proporcional...
