Remove any cable ties from the upsweep section of the handle bars to allow access around the wires
and cables during installation. Reinstall after installation of the Sentinel handguards
The 34269 TriMount is required for the REV's with the handlebar mounted windshields.
Use these instructions along with the instructions provided with the 34269 mount kit.

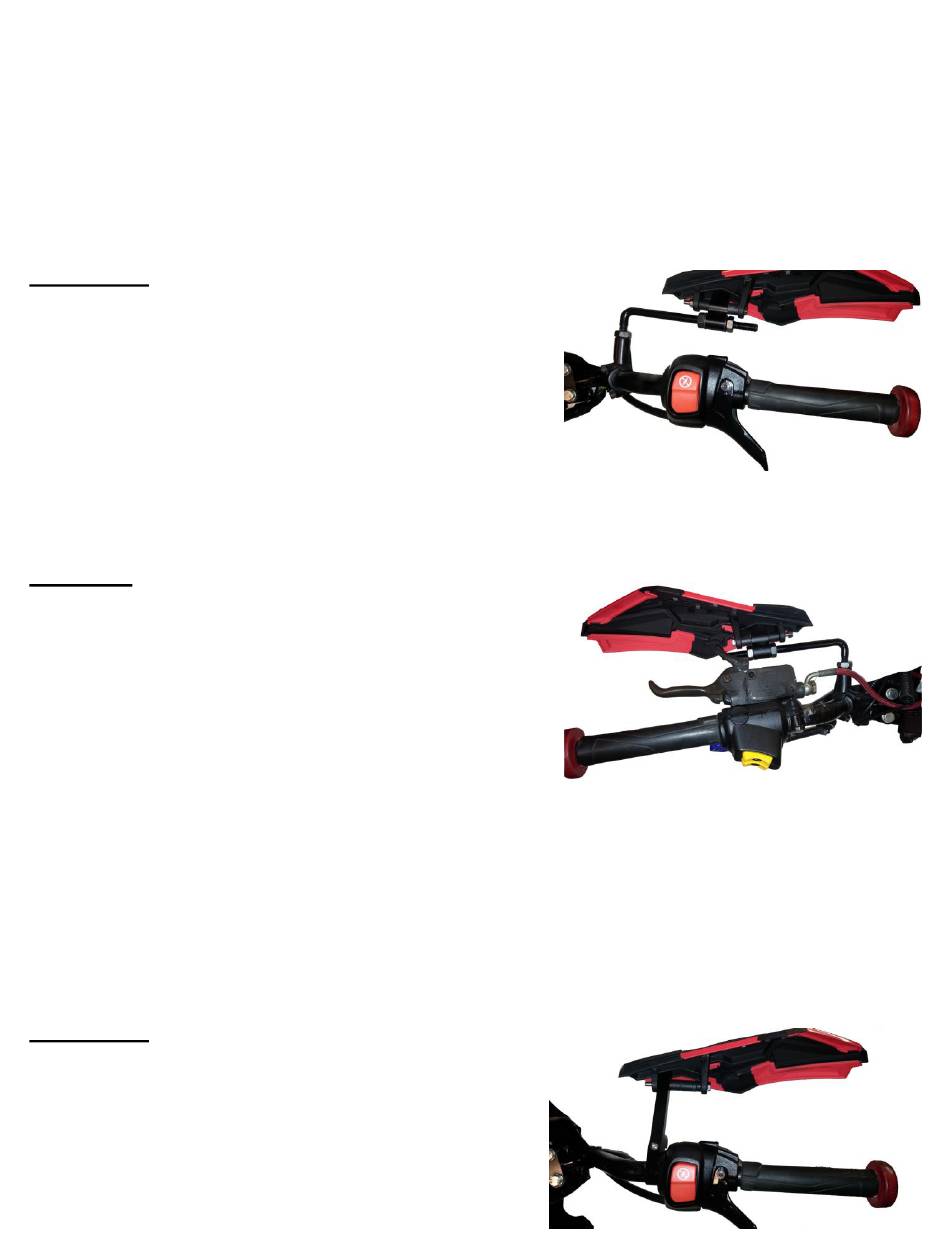

Right side:
Attach threaded bent rod to the mirror mount bracket.
Position the duck bill mount all the way in.
Attach mirror mount bracket and threaded bent rod
assembly to the upsweep section of the handle bars. See
photo for proper location.
Attach handguard per instructions that came with your
handguard and mount kit.
Adjustments can be made by spinning the mirror mount bracket on the bars, by turning the threaded
bent rod up or down and by twisting the duck bill handguard mount. Adjust so the guard is about in
the position shown in the photo and or to your personal preference.
Attach threaded bent rod to the mirror mount bracket.
Position the duck bill mount all the way in.
Attach mirror mount bracket and threaded bent rod
assembly to the upsweep section of the handle bars. See
photo for proper location.
Attach handguard per instructions that came with your
handguard and mount kit
Adjustments can be made by spinning the mirror mount bracket on the bars, by turning the threaded
bent rod up or down and by twisting the duck bill handguard mount. Adjust so the guard is about in
the position shown in the photo and or to your personal preference. Before and after adjusting
handguard check that the brake and parking brake are operational.
This mount kit will only work on REV's that do not have the handlebar mounted windshield.
Use these instructions along with the instructions provided with the 34450 mount kit.
Right side:
Mount the handguard mounting bracket just to the left
throttle block as shown in the photo.
Mount bracket into mounting tabs on the handguard as
shown in the photo.
Adjust guard and throttle to your personal preference.
Handguard Mounting Tips
For Ski Doo REV 2003 - 2008
34269 Tri-Mount
34450 Snowmobile mount kit
