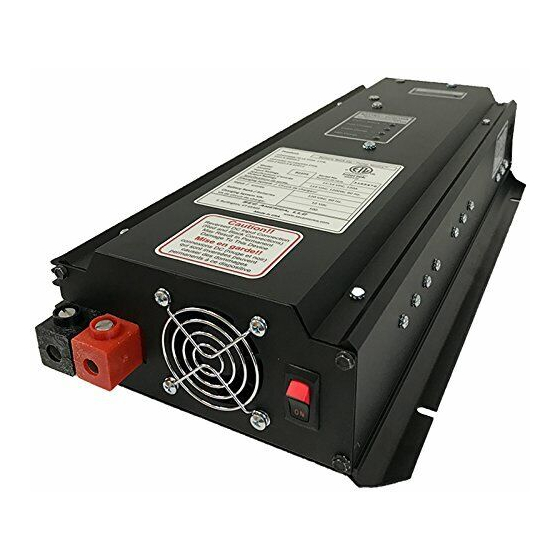

- Page 1 SEC America Corp. Model 822 PS Pump Sentry Model 1622 PS Pump Sentry Owner's Manual November 5, 2019...
-
Page 2: Table Of Contents
Index Page Quick Installation & Battery Essentials………………….. Precautions and Sequencing During Initial Hookup…. How Pump Sentry Works……………………………..…….. Important Safety Instructions……………………………..Safety Warnings……………………………………………… Battery Precautions………………………………………….. Battery Box……………………………………………………. Installation Location…………………………………………. Making Connections…………………………………………. Installation Test………………………………………………. Changing the Battery………………………………………… Charger Functions.…………………………………………… Uninterruptible Power Indicator …………………………… Fan Operation …………………………………………………... -
Page 3: Quick Installation & Battery Essentials
Pump Sentry™ Models 822 PS & 1622 PS INSTALLATION INSTRUCTIONS QUICK INSTALLATION & BATTERY ESSENTIALS Pump Sentry™ is designed to operate with an external battery or battery bank whose nominal operating voltage is 12V, and whose single or combined A- Hr. -
Page 4: Precautions And Sequencing During Initial Hookup
PRECAUTIONS & SEQUENCING DURING INITIAL HOOKUP a) Secure Pump Sentry™ in its designated spot. It is recommended that the unit be placed on a shelf or mounted to a wall. b) Make sure the ON/OFF switch is in the OFF position and that the Pump Sentry™... -
Page 5: How Pump Sentry Works
The Pump Sentry™ is an innovative power station designed to operate your pump during a power outage. When properly installed, it will provide many years of reliable service. To ensure that the Pump Sentry™ is optimally used and properly connected, we recommend its installation be made by a licensed electrician or fully qualified professional. -
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS – THIS MANUAL CONTAINS IMPORTANT INSTRUCTIONS FAILURE TO FOLLOW SAFETY INSTRUCTIONS AND WARNINGS COULD RESULT IN INJURY OR DEATH Read all the instructions WARNING: before installing or ELECTRICAL SHOCK operating the Pump Sentry. ... -
Page 7: Safety Warnings
WARNING: RISK OF ELECTRICAL SHOCK Use Pump Sentry only with In the event of a short circuit, adequate wiring that is up to grounding reduces the risk of electrical code specifications. electrical shock by providing a Connect to properly grounded safe path to ground. -
Page 8: Battery Precautions
BATTERY PRECAUTIONS: WARNING: IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS. 1. Servicing of batteries should 3. CAUTION – Do Not be performed or supervised dispose of batteries in a fire. by a person knowledgeable The batteries might explode. about batteries and the 4. - Page 9 when working with the of fire and explosion electrolyte solution. because they generate A. Wear full eye hydrogen gases. The protection and following precautions must clothing. be followed. B. If electrolyte comes in contact with the skin, A. Do Not smoke when wash if off near batteries.
-
Page 10: Battery Box
BATTERY BOX outlet and the battery box (not closer than 2 feet). Your selected battery should be stored in a high quality plastic or VENTILATION nylon battery box with a lid that is Do Not block either the fan designed for this purpose. -
Page 11: Making Connections
Plug your pump into the Pump Sentry’s AC outlet. MAKING CONNECTIONS Plug the Pump Sentry into a 120 volt AC After mounting Pump Sentry to the outlet. wall, follow these steps. Turn ON/OFF switch to Make sure the ON/OFF the ON position. -
Page 12: Changing The Battery
longer in “battery back up” MAINTENANCE mode and has returned to its normal state of charging the Once properly connected, the battery and providing line Pump Sentry requires no power. maintenance. When AC power CHANGING SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. fails, it will automatically convert BATTERY battery power to AC power for... -
Page 13: Charger Functions
Charger Function s The smart charging system in Pump Sentry is microprocessor controlled to yield optimum charging rates and long battery life. When the electrical source is restored allowing the resumption of the charging process, there is a 2 second delay during which the charge state of the battery is assessed. After this delay, the bottom of the two LED indicators comprising the battery monitor will illuminate. - Page 14 Figure #2 Figure #1 Charger Fuse POWER OUTPUT Active When Lit Main Fuse Replace Battery Charged = ON Charging = Flashing BATTERY MONITOR When Utility AC is Down ALL Battery Indicators Are OFF Inverter ON/OFF SIDE VIEW TOP VIEW...
-
Page 15: How To Discern When Pump Sentry Is Operational In Back Up Mode
How to Discern When Pump Sentry is Operational in the Backup Mode When all LED’s of the battery monitor are OFF, and the pump sentry is plugged into an AC outlet, the unit is in the back up mode. In this mode when there is sufficient energy in the battery to operate the system, the uninterruptible power LED is illuminated. -
Page 16: Warranty
Pump Sentry 822 PS, 1622 PS Manufactured by SEC America Corp. S. Burlington, VT, 05403 Manufacturers Limited Warranty Pump Sentry is warranted to be free from defects in material and workmanship and to perform within applicable specifications for a period of two years after original shipment.
