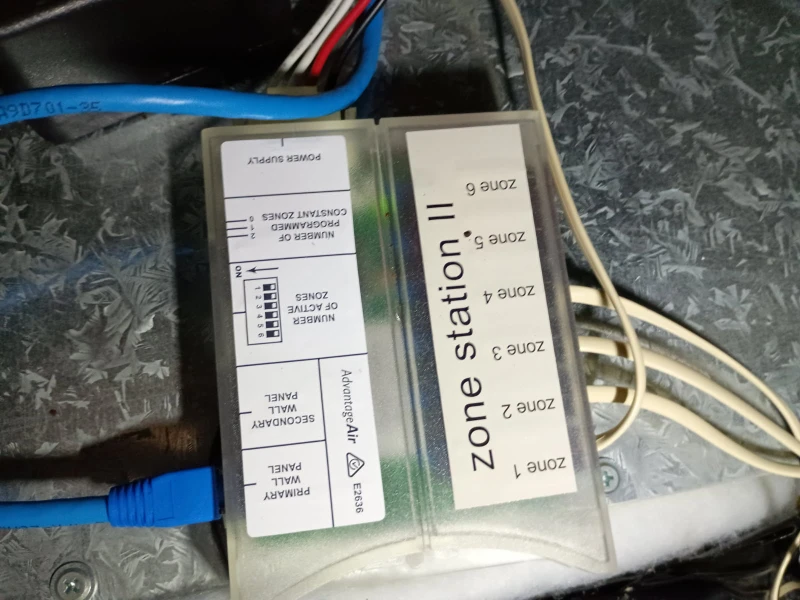

Zone ducts are sticking

User image 67ec945cbdd0d
0

Subscribe to Our Youtube Channel

Related Manuals for ADVANTAGE AIR e-zone

Summary of Contents for ADVANTAGE AIR e-zone

  • Page 1 User Guide...

  • Page 2: Table Of Contents

    User Manual Table of Contents Introduction ......................4 HOME ........................5 SIMPLE TIMER ..................... 5 AIR CON ....................... 6 ZONES ......................... 7 PROGRAMS ......................8 Rename/Delete Programs ................10 Disable Programs ................... 11 HELP ........................12 SETTINGS ......................13 Text Colour .....................
  • Page 3 Android Tablet ....................19 Smart Phone Control – Quick Setup Guide ............20 Once your air conditioner is installed: ............20 Apple Devices ....................24 Multiple e-zone systems ................25 Apple Installation Troubleshooting ..............25 Android Devices ..................... 26 Network Troubleshooting ................. 27 How to reset your Wi-Fi control ..............

  • Page 4: Introduction

    User Manual Introduction Welcome to your new e-zone system. The information provided in this user manual will help you to ensure you get the most from your new air conditioning system. Upon first power up, the system will take a few minutes to initialise.

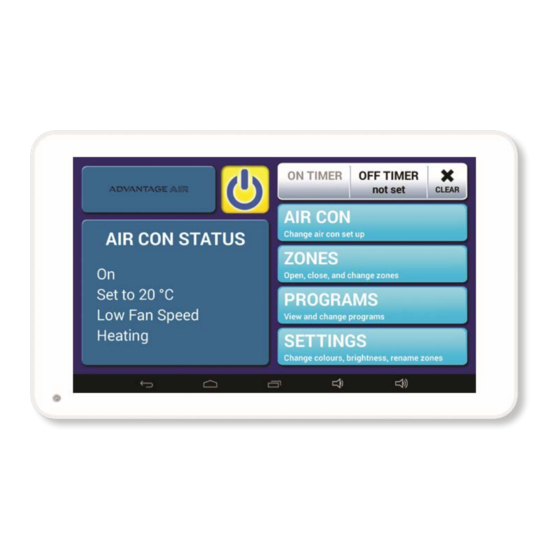

  • Page 5: Home

    SIMPLE TIMER The e-zone system features a SIMPLE TIMER, which you can use to have your air conditioning system turn ON or OFF after 30minutes, 1 hour or 2 hours. Note: This is a once-only time that does not repeat each day. More advanced...

  • Page 6: Air Con

    User Manual AIR CON Press the AIR CON button to change the following: • AIR CON ON/OFF • MODE allows you to change between HEAT, COOL, FAN ONLY & DRY • FAN SPEED will change your indoor fan between LOW, MED, HIGH & AUTO settings •...

  • Page 7: Zones

    Pressing a zone name toggles that zone between ON and OFF. The zone turns Blue for ON, and Black for OFF. There can be two different types of zones in e-zone depending if you chose the optional Integrated Temperature Control (zones with temperature sensors) at point of sale.

  • Page 8: Programs

    User Manual PROGRAMS Press PROGRAMS to bring up the Programs Screen: To add a program press ADD NEW PROGRAM which will bring you to the following screen: To enter the Start time for the program to swipe the selection wheel up or down, the wheels will stop slowly after the swipe.
  • Page 9 User Manual Press NEXT to continue to the following screen: Select the days for the program to run. Press NEXT to continue to the ZONE selection screen: Select the zones you would like ON during the program when finished press SAVE to return to the PROGRAMS LIST.

  • Page 10: Rename/Delete Programs

    User Manual Rename/Delete Programs On the programs main screen, press RENAME next to the program you wish to change; to remove a program press DELETE. Select the zone you would like to rename & you will be presented with a keyboard.

  • Page 11: Disable Programs

    User Manual Disable Programs This feature is handy to use when going away on holidays and provides a quick and easy way to ensure you save energy by ensuring the air-conditioner does not run when you’re not at home.

  • Page 12: Help

    User Manual HELP On the ZONES page, press the HELP button to show the HELP Screen this will show the difference between Temperature Zones & Airflow Zones. It also explains that zones marked with a yellow C are your constant zones & these may...

  • Page 13: Settings

    User Manual SETTINGS On the home screen, press SETTINGS to display the following screen: Text Colour Press this button to cycle through the 3 text colour options. Background Colour Press this button to cycle through the 12 background colour options.

  • Page 14: Rename Zones

    User Manual Rename Zones Press this button to change the zone names. You will be presented with a list of all your zones. Select the zone you would like to rename. The cursor will default to the end of the zone name.

  • Page 15: System Information

    User Manual System Information On the SETTINGS page, the top right-hand box displays any warnings such as low battery warnings for your temperature sensors, your installer may have also provided their contact number here, so it’s always on hand when it comes time for your annual service.

  • Page 16: Myzone™ - (Optional Feature)

    User Manual MyZone™ - (optional feature) In a standard temperature controlled zone, the temperature sensor simply manages airflow to the room while the machine is running; in the MyZone your air-conditioner unit will respond to the temperature in this specific zone to decide when it should start, stop or ramp up / down while maintaining a constant airflow in the zone.
  • Page 17 User Manual °M HELP Press to see the following screen which explains the functionality of the MyZone. NOTE: MyZone is an optional feature only available on systems where temperature sensors have been installed & the MyZone feature has been enabled, your dealer may enable this...

  • Page 18: Constant Zones

    User Manual Constant Zones Your e-zone system may be set up with electronic Constant Zones. These are pre-programmed zones that open up to relieve excess air pressure in your air- conditioning system if insufficient zones are open. Constant Zones are noted with a small letter c next to the air volume percentage of that zone see DINING &...

  • Page 19: Android Tablet

    & landscape modes so you can enjoy all your favourite apps in the orientation for which they were designed. To exit the e-zone app press the press home button from any screen as pictured below Here you can connect to a Wi-Fi network to access the Google Play Store &...

  • Page 20: Smart Phone Control - Quick Setup Guide

    Smart Phone Control – Quick Setup Guide Once your air conditioner is installed: 1. Ensure you have an existing home Wi-Fi network is working & you have your password on hand. 2. Connect your e-zone touchscreen to your home Wi-Fi network. 3. Press the HOME button.
  • Page 21 User Manual 4. Press the SETTINGS button. 5. Ensure you are connected to your home Wi-Fi network, if it is OFF as shown in the image above press the switch to turn it ON...
  • Page 22 User Manual 6. Once you have Wi-Fi turned ON you need to find your home Wi-Fi network in the list then press it. 7. After pressing the home Wi-Fi button you will need to enter your home Wi-Fi network password then press CONNECT.
  • Page 23 Apple or Android app to your device. 11. Once the above is complete, you will be able to open the e-zone app from your smart device (phone/tablet) & control the air conditioner from within the home Wi-Fi network area.

  • Page 24: Apple Devices

    User Manual Apple Devices NOTE: e-zone apple app requires Apple iOS v7.0 or greater 1. If you do not have an Apple ID and password, then create one and verify your email by checking and following the instructions in the email from Apple.

  • Page 25: Multiple E-Zone Systems

    User Manual Multiple e-zone systems If you are using an Apple device & have multiple e-zone systems installed in your home on the same Wi-Fi network, there are a few extra steps required to configure the Apple app so you can control all of your systems from your smart phone or tablet.

  • Page 26: Android Devices

    4. Choose Existing (if you want to add an account you already have) or New (if you wish to create a new one). 5. Follow the instructions to add your account. Download the e-zone App from the Google Play Store. 1. Open the Google Play Store app.

  • Page 27: Network Troubleshooting

    (SSID) as your smart phone or tablet, also, ensure signal strength is adequate. 4. Ensure your e-zone tablet is up to date with the latest app updates http://www.advantageair.com.au/support/update2 5. For further info, see the troubleshooting table on the following page.
  • Page 28 Possible Solution Your smartphone or tablet Check both your 1. e-zone app does not connect to e- cannot find your e-zone system. phone/tablet & e-zone zone system. system are connected to the same Wi-Fi network. Home Wi-Fi is not set to DHCP.

  • Page 29: How To Reset Your Wi-Fi Control

    Wi-Fi. Further Information You do not need to have a home internet connection to use the e-zone App within your home – the App uses Wi-Fi only to connect to your air conditioner. If you wish to use the app from outside your home (e.g. remotely) then an...

  • Page 30: Remote Access

    User Manual Remote Access e-zone has the ability to control your system from your Android or Apple smart device when you are outside of the home Wi-Fi network using your mobile network data (eg 3G/4G). Your Android or Apple smart device will also require the latest e-zone app, go to Apple App Store or Google Play to ensure you have the latest version.
  • Page 31 User Manual The below instructions assume the following: • e-zone touch screen is connected to the home Wi-Fi network. • You are able to control your system from your mobile device when connected to your home Wi-Fi network. • Your e -zone touch screen has a Google Play account active on the device &...
  • Page 32 User Manual 2. Press the CLOSE APP button. 3. Find & press the app called AA WACA...
  • Page 33 User Manual 4. To disable remote access, press the Disable button once & the button will turn blue. Disabling remote access also clears all paired smartphones/tablets. 5. To enable remote access press, the enable button once & the button will...
  • Page 34 7. When STATUS: 5, 8 or 11 are displayed remote access has been successfully configured. 8. Open the e-zone app on your Android /Apple device whilst it is connected to your home Wi-Fi network to pair your air conditioner with...

  • Page 35: Compatibility

    Apple/Android app whilst on the home Wi-Fi network. 9. Congratulations you should now be able to control your e-zone system remotely when you have 3G/4G by opening up the e-zone app on your mobile device. Compatibility...

  • Page 36: Multiple E-Zone Systems

    Multiple e-zone systems If there is more than one e-zone system installed on the same home Wi-Fi network, you will need to change a setting on one of the e-zone touch screens so as that remote access can function correctly.
  • Page 37 User Manual 2. Press & hold to the right of the version number until a port number selection menu appears 3. Change the port from 8035 to 8036.

  • Page 38: Aawaca Status

    User Manual If you had numerous systems in the same house you would configure as follows. e-zone System #1 = Leave on default port 8035 e-zone System #2 = Set port to 8036 e-zone System #3 = Set port to 8037 AAWACA Status The below info may be useful to the homeowners I.T professional when...

  • Page 39: General Troubleshooting

    • Ensure your e-zone tablet is up to date with the latest app updates from the Google Play Store, for complete instructions go to www.advantageair.com.au/update2...
