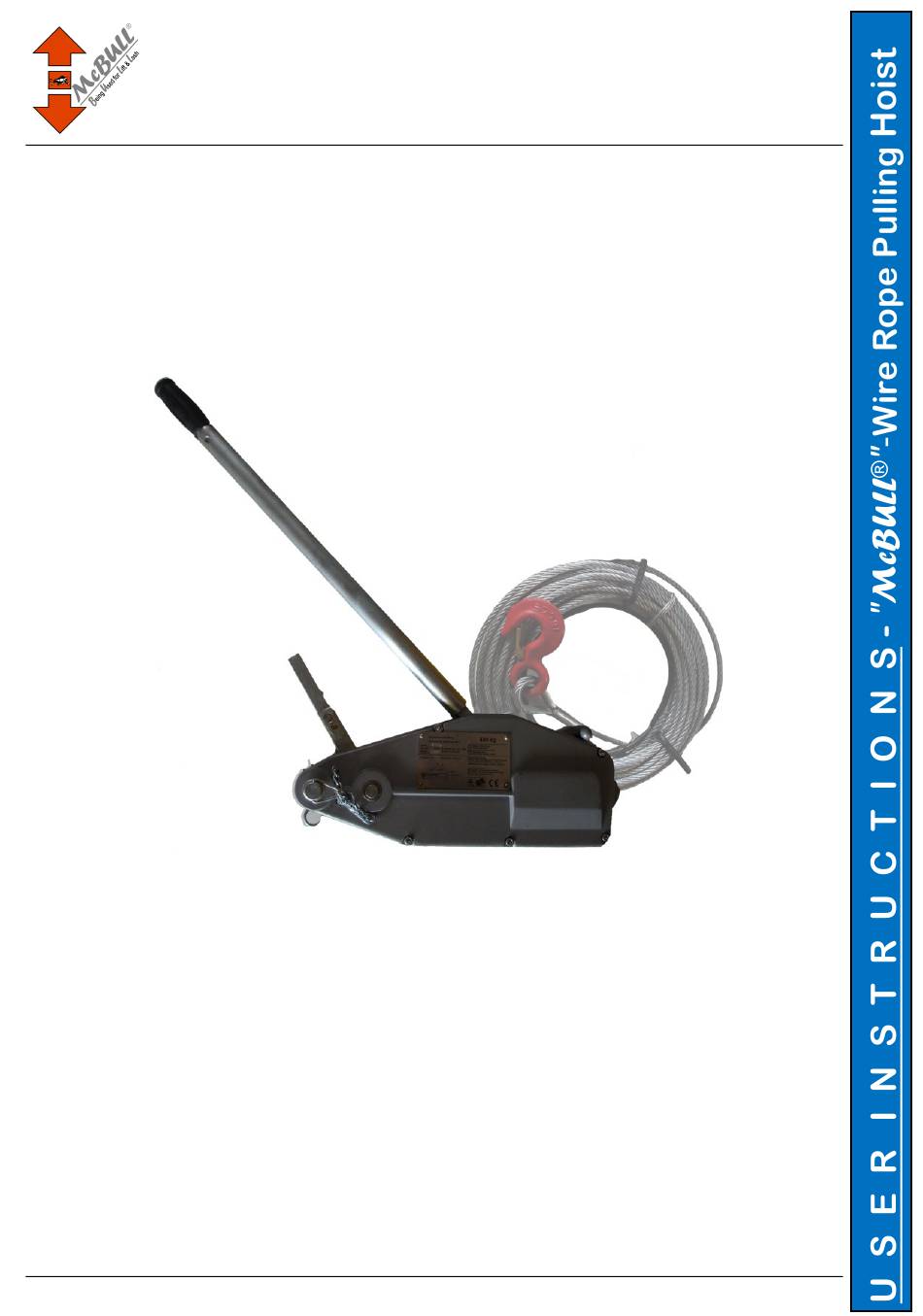

- Page 1 ... wir bewegen was !!! BEFORE OPERATING THIS PRODUCT, READ THIS MANUAL AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS Save these instructions for future reference Page 1...

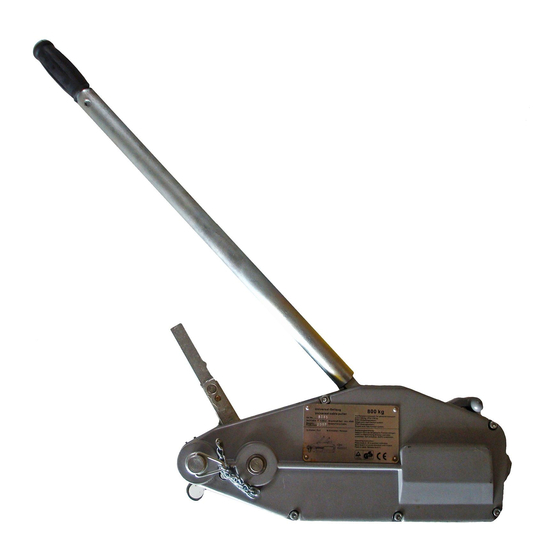

- Page 2 To safeguard against the possibility of property damage or personal injury follow the recommendations and instructions of this manual and keep it for further reference. The portable McBULL ® -wire rope pulling hoist’s are a versatile tool for pulling, lifting, lowering, tensioning and securing loads over long distances.
- Page 3 ... wir bewegen was !!! 2 SPEZIFICATION Type 8… 16… 32… Rated capacity Proof test load (kN) 12,0 24,0 48,0 Rated forward travel (mm) Rope diameter (mm) Dimensions (mm) 1200 1200 Weight (without cable) (kg) Page 3...
- Page 4 ... wir bewegen was !!! 3 INSTALLATION AND OPERATION Rope choice: Ensure before starting up, that the rope diameter and the type of the unit are conform. Rope reeving: Hold the unit in one hand, with its head downward, and push the released handle.
- Page 5 ... wir bewegen was !!! Operating: Attach the hook to the load and operate as following: To lift a load (or pull a load): move the forward handle forward and backward To lower a load: move the backward handle forward and backward Rope removing: After finishing work, first push the released handle, to open the grip jaws and pull the rope out.
- Page 6 ... wir bewegen was !!! 4 MAINTENANCE To maintain continuous and satisfactory operation, a regular inspection procedure must be initiated so that worn or damage parts can be replaced before they become unsafe. If faults are defected, the wire rope pulling hoist must be put out of service immediately.
- Page 7 ... wir bewegen was !!! Part-No. Description Quantity left side plate right side plate handle (just at 1,6t / 3,2t) rivet (just at 1,6t / 3,2t) screw washer hex bolt 6 o. 7 hex nut 6 o. 7 front jaw block back jaw block forward handle backward handle...
- Page 8 ... wir bewegen was !!! - Dealer: McBULL ® BEFORE OPERATING THIS PRODUCT, READ THIS MANUAL AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS Save these instructions for future reference Page 8...
