Summary of Contents for StageRight ME-500

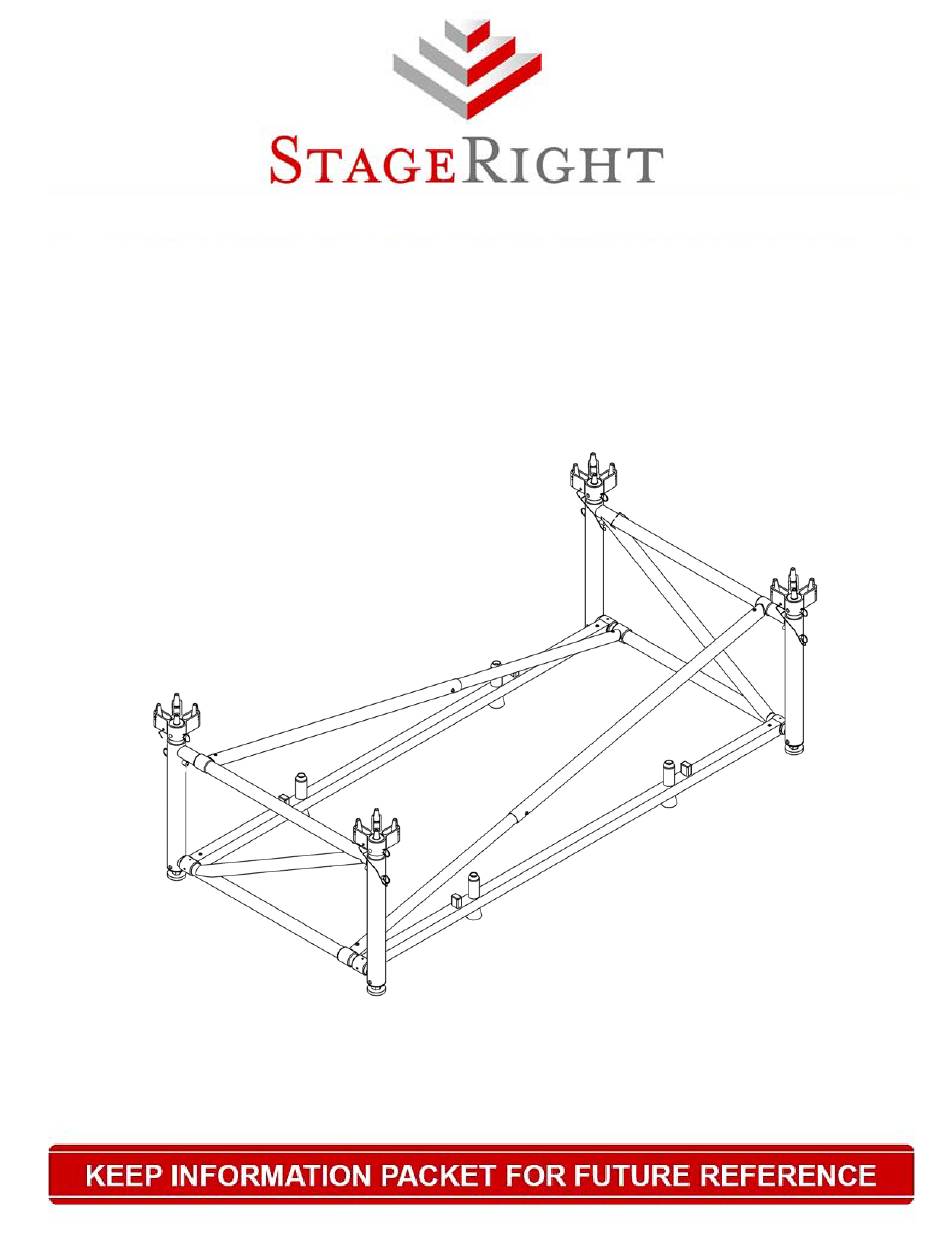

- Page 1 RODUCT NFORMATION ACKET RODUCT AME: ME – 500 SUPPORT SYSTEMS...
-
Page 2: Table Of Contents
The care you give your ME-500 will greatly determine your satisfaction with its performance and service life. Careful study of this manual is encouraged to obtain a thorough understanding of your new ME-500 and its functions and maintenance. -
Page 3: General Safety Rules
General Safety Rules WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in serious personal injury. SAVE THESE INSTRUCTIONS Stay clear of all pinch points. Make sure that all fasteners are properly engaged before use. Faspins, button stops, and jam nuts need to be properly engaged before use. -
Page 4: Symbols
Symbols Safety Alert: Precautions that involve your safety Read The Operator’s Manual: To reduce risk of injury, user must read and understand operator’s manual before using this product Pinch Point Warning Label: Failure to keep hands away from pinch points will result in personal injury... -
Page 5: Technical Specifications
StageRight Corporation Technical Specifications ME – 500 SUPPORT SYSTEMS PART # DESCRIPTION WT. (LB.) SHIPPING DIM. 319532 32”-48” Adjustable Height 47” x 102” x 11” 319536 36”-56” Adjustable Height 47” x 102” x 11” 319548 48”-78” Adjustable Height 47” x 102” x 11”... -
Page 6: Instructions
Instructions To set up your ME-500 Support System, begin by unfolding the unit as shown. Rotate the side tubes to their vertical positions until the button stops are engaged. To lower the unit back into the storage position, disengage the button stops and rotate the side tubes down to their horizontal positions. - Page 7 Once the desired height is obtained, re-insert the faspins. To level the deck after it has been placed on the ME-500 Support System, simply raise or lower the adjustable screw feet by threading them in or out. Once the deck has been leveled, go back and tighten...
- Page 8 To raise or lower a node on a retractable locator assembly, grip the node with your thumb and middle finger to direct it forward and upward. Deck Deck w/o understructure w/understructure (bridged deck) Dual Locator Single Locator Quad Locator Quad Locator Dual Locator Single Locator Align understructures as needed, using proper locator combinations and bridged decks to save...
-
Page 9: Maintenance
Customer Service For parts or service contact StageRight Corporation. When ordering parts be sure to provide all relevant information available including the name and part number of the equipment purchased. This information is located on the technical specification page of this product information package. Customer Service hours are Monday thru Friday from 8:00 a.m. - Page 10 StageRight Corporation 495 Pioneer Parkway Clare, MI 48617 Toll-free: 800-438-4499 Phone: 989-386-7393 Fax: 989-386-3500 Email: info@stageright.com Web: www.stageright.com...
