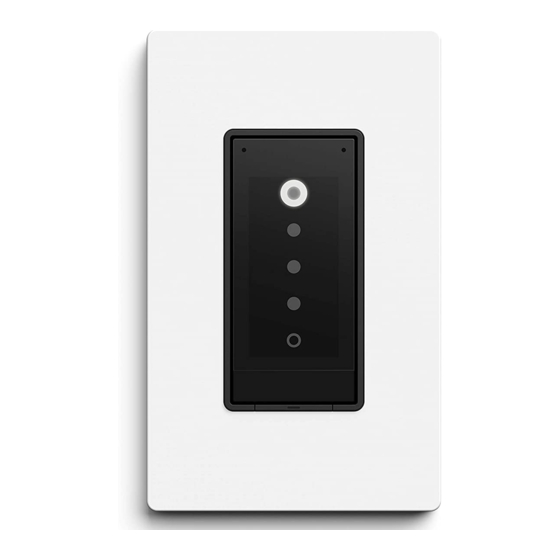

Summary of Contents for Orro Switch
- Page 1 Installation Guide...
-
Page 2: Table Of Contents
For Single Switch Installation: Use this manual. Before We Start Only one switch controls the lights. Check Compatibility Installation Set Up Orro For Multiway Switch Troubleshooting Installation: Go to www.getorro.com/multiway Multiple switches control the same lights. -
Page 3: Before We Start
Start the install during daylight or have a flashlight ready. Switch installation requires your lights to be off. Your first time installing Orro may take up to 45 min. You’ll get faster with each installation. Before We Start Be Safe Installing Orro is a straightforward process but it requires handling high voltage wiring. - Page 4 What’s in the Box Tools Needed 1x Faceplate & Mount 1x Orro Switch 4x Extension Wires Flathead Phillips Pliers Screwdriver Screwdriver (recommended) 4x Wire Connectors 2x Plate Screws 6x Wire Labels Power tools are not recommended. 2x Mounting Screws...
-
Page 5: Check Compatibility
Total Load must be less than Max Load (based on bulb type): Bulb Type MagLowV Halogen Fluorescent ElecLowV Incandescent Max Load 150W 300W 500W* *360W max load if switch is located in a wall box with more than one switch (multi-gang box) -
Page 6: For Single Switch Installation
Use this manual. Orro does not rely on WiFi to make lighting decisions. However, the Only one switch Switch must be connected to WiFi for setup, app based remote control, controls the lights. enabling certain features, and getting updates. Fan Lights Not Supported Orro Switches are only intended to control lighting fixtures. -
Page 7: Installation
Where is my circuit breaker? Breakers may be found in a garage, hallway, or basement. If you can’t find the specific breaker, turn off the master breaker. If you are installing your switch in a multi-switch gang box, turn off breakers for all switches. - Page 8 Unscrew Switch Remove the screws from the top and bottom of the switch. Pull switch out as far as possible so that you can clearly see all the wires in the switch box.
- Page 9 Take a Photo Identify Wires Keep track of your wires. Take a close-up photo showing the existing wire connections. This will be useful for properly completing installation and in case you need to contact Orro support.
- Page 10 Identify Neutral Wire(s) Neutral wire(s) (white) • A Neutral wire is required for the Orro Switch to work. Label the wire(s) beyond the • Neutral wires are often white and can be found as a wire nuts (if you have them).
- Page 11 The load wire may be red or black and carries power out to your lights. • Look for a green or bare copper single wire or group of wires. • This wire may or may not be connected to the switch. It is often connected to the top-half of your switch.
- Page 12 Label Line Wire Install Orro The Line wire is normally black and carries power into your switch. It is often connected to the bottom-half of your switch. It is sometimes attached with a black screw.
- Page 13 Screwed-In Wires Built-In Wires If the ends of the wires in your switch box are bent out Possible Switch Configurations of shape, use pliers to cut and discard them. Disconnect the wall wires from your switch. Depending on your switch Strip the wire by removing the plastic casing.
- Page 14 Screw on the wire nut clockwise until secure. IF you have one Neutral wire and it is long enough to reach outside the switch box, you can plug it directly into the Switch. Tug each wire to ensure that the wire nut is secure.
- Page 15 LOAD IF you have one Ground wire and it is long enough to reach outside the switch box, you can plug it straight into the Switch. Simply plug in the wires from your wall to the corresponding ports on the back of the Orro Switch IF you have a group of Ground wires, connect the provided green extension wire to the bundle using the existing wire nut.
- Page 16 Push Wires Deep into Switch Box To detach wires, hold slider to the left. Make room for the Orro Switch by pushing each wire as far as possible into the back of the switch box. Gently tug on each wire to ensure that connection to the Switch and each connector is secure.
- Page 17 • With light pressure, push your Orro Switch into the switch box. holes. • The Switch should sit flush against the wall – if not, pull the • Before fully tightening the screws, check that the Switch is Switch out and try rearranging the wires.
-
Page 18: Set Up Orro
Turn On Power Set Up Orro Once installation is complete, go to your circuit breaker and turn the power back on. - Page 19 Check to see that the screen lights up. Push a flathead screwdriver into the slot at the bottom of the faceplate If your Switch does not turn on, go to pg. 39 for until it separates from the mount. Gently pry apart the two pieces.
- Page 20 Attach Faceplate Follow Switch Instructions Use the short screws to attach the faceplate mount. Push faceplate onto the mount and snap it into place. Tap “START” on the Switch and complete all on-screen instructions to begin setup.
-
Page 21: Troubleshooting
Turn off the circuit breaker. Make sure all wires are securely connected to correct Switch ports. Turn on the circuit breaker and wait a minute to see if the Switch powers on. If your Switch still does not turn on: Turn off the circuit breaker. - Page 22 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 23 Need Help? We're ready to assist you. Installation FAQ: getorro.com/setupfaq support@getorro.com General support: Urgent issues: (747) 253 0608 Support hours: Weekdays 7am-7pm (PT) Weekends 10am-6pm (PT) © 2019 Edison Labs, Inc. All rights reserved. D-ART-0016-02 Rev B...
